Overview
The NCP59151MN33TYG is a Very Low-Dropout (VLDO) linear voltage regulator produced by onsemi. This device is part of the NCP59150 series, known for its high precision and low ground current. Although the NCP59151MN33TYG is currently obsolete and no longer manufactured, it remains a significant component in various legacy systems and applications. The regulator is capable of providing an output current in excess of 1.5 A with a typical dropout voltage lower than 300 mV at 1.5 A load current, making it suitable for a wide range of power supply requirements.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Output Current | 1.5 A | A |
| Dropout Voltage (Max) | 300 mV | mV |
| Input Bias Current (Ib) | 350 nA | nA |
| Line Regulation | 0.02 % | % |
| Load Regulation | 0.2 % | % |
| Input Voltage Range | 0 to 18 V | V |
| Junction Temperature Range | −40°C to +125°C | °C |
| Output Voltage Accuracy | −2 to +2 % (typical) | % |

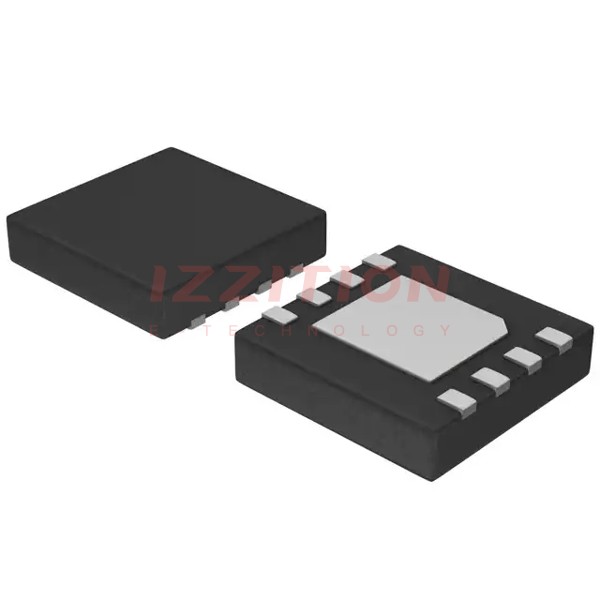

| Package Type | DFN8-4x4 (Pb-Free) |
Key Features
- High precision, very low dropout voltage (VLDO) regulator
- Output current in excess of 1.5 A
- Typical dropout voltage lower than 300 mV at 1.5 A load current
- Stable with ceramic output capacitors
- Adjustable and fixed output voltage options
- Low ground current
- Fast transient response
- Logic level enable and error flag pins available
- Internal protection features: output current limiting, thermal shutdown, and reverse output current protection
- Pb-Free device
- AEC-Q100 qualified and PPAP capable for automotive and other applications requiring unique site and control change requirements
Applications
- Consumer and industrial equipment point of regulation
- Servers and networking equipment
- FPGA, DSP, and logic power supplies
- Switching power supply post-regulation
- Battery chargers
- Functional replacement for industry standard MIC29150, MIC39150, MIC37150
Q & A
- What is the maximum output current of the NCP59151MN33TYG?
The maximum output current is 1.5 A.
- What is the typical dropout voltage of the NCP59151MN33TYG at 1.5 A load current?
The typical dropout voltage is lower than 300 mV.
- What types of output capacitors are recommended for stable operation?
Ceramic output capacitors with a recommended value of 47 μF or greater.
- Does the NCP59151MN33TYG have internal protection features?
- What is the input voltage range for the NCP59151MN33TYG?
The input voltage range is from 0 to 18 V.
- Is the NCP59151MN33TYG Pb-Free?
- What are the package types available for the NCP59151MN33TYG?
The device is available in a DFN8-4x4 (Pb-Free) package.
- What is the junction temperature range for the NCP59151MN33TYG?
The junction temperature range is from −40°C to +125°C.
- Does the NCP59151MN33TYG have an error flag feature?
- Is the NCP59151MN33TYG still in production?
No, the NCP59151MN33TYG is obsolete and no longer manufactured.
