Overview

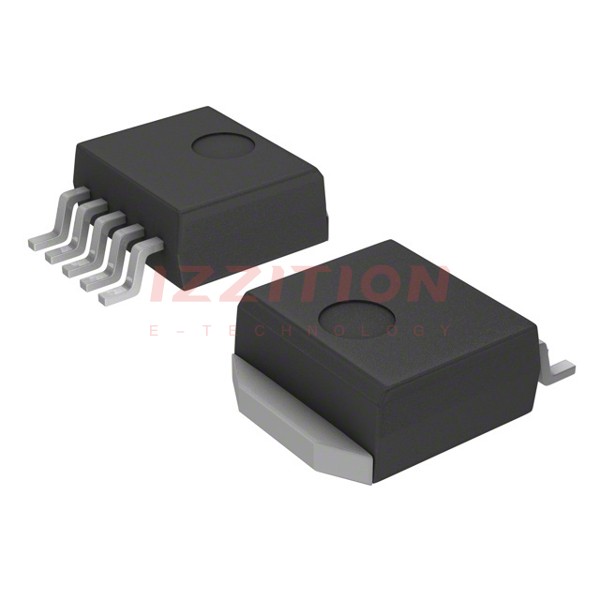

The NCP59151DS50R4G is a Linear Low Dropout (LDO) Voltage Regulator produced by onsemi. Although this component is currently obsolete and no longer manufactured, it was designed to provide stable voltage regulation in various electronic systems. For current applications, onsemi recommends using similar substitutes such as the NCP59748MN1ADJTBG.
Key Specifications
| Specification | Value |
|---|---|
| Line Regulation | 0.02 % |
| Load Regulation | 0.2 % |
| Power Dissipation | Internally Limited |
| Product Type | LDO Voltage Regulators |
Key Features
- High accuracy voltage regulation with low line and load regulation.
- Internally limited power dissipation to prevent overheating.
- Compact package suitable for space-constrained applications.
- Stable output voltage across a range of input voltages and load conditions.
Applications
- Power supply systems requiring stable and low-noise voltage output.
- Portable electronic devices such as smartphones, tablets, and laptops.
- Industrial control systems and automation equipment.
- Medical devices and diagnostic equipment.
Q & A
- What is the NCP59151DS50R4G?
The NCP59151DS50R4G is a Linear Low Dropout (LDO) Voltage Regulator produced by onsemi.
- Is the NCP59151DS50R4G still in production?
No, the NCP59151DS50R4G is obsolete and no longer manufactured.
- What are the recommended substitutes for the NCP59151DS50R4G?
onsemi recommends using the NCP59748MN1ADJTBG as a substitute.
- What is the line regulation of the NCP59151DS50R4G?
The line regulation is 0.02 %.
- What is the load regulation of the NCP59151DS50R4G?
The load regulation is 0.2 %.
- How is the power dissipation managed in the NCP59151DS50R4G?
The power dissipation is internally limited.
- What type of product is the NCP59151DS50R4G?
The NCP59151DS50R4G is an LDO Voltage Regulator.
- What are some common applications of the NCP59151DS50R4G?
Common applications include power supply systems, portable electronic devices, industrial control systems, and medical devices.
- Where can I find the datasheet for the NCP59151DS50R4G?
The datasheet can be found on the official onsemi website or through distributors like Mouser and Digi-Key.
- What are the shipping considerations for the NCP59151DS50R4G?
This product may be classified as Large/Heavy, which could result in additional shipping charges.
