Overview
The NC7SV74L8X is a D-Type Flip-Flop integrated circuit produced by onsemi. It is part of the TinyLogic® ULP-A family, known for its ultra-low power consumption and compact packaging. This device is designed to operate within a wide range of supply voltages, making it versatile for various digital logic applications.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Input Lines | 1 |
| Number of Output Lines | 1 |
| Operating Supply Voltage | 0.9 V to 3.6 V |

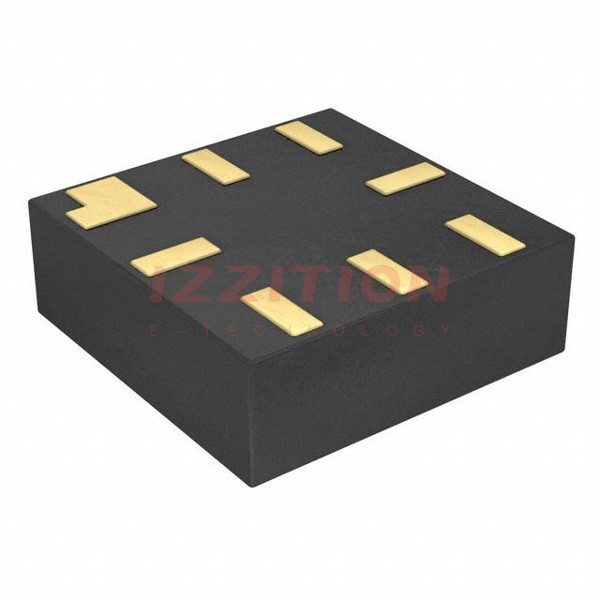

| Package Type | 8-Lead MicroPak (UQFN8) |
| Logic Type | CMOS |
| Pb-Free | Yes |
Key Features
- Ultra-low power consumption, suitable for battery-powered devices.
- Wide operating supply voltage range (0.9 V to 3.6 V).
- Compact 8-Lead MicroPak (UQFN8) packaging.
- CMOS technology for low power and high noise immunity.
- Pb-Free, compliant with RoHS standards.
Applications
The NC7SV74L8X is suitable for a variety of digital logic applications, including:
- Battery-powered devices due to its ultra-low power consumption.
- Portable electronics where space and power efficiency are critical.
- Automotive and industrial control systems requiring robust and reliable logic functions.
- Consumer electronics such as smartphones, tablets, and wearables.
Q & A
- What is the operating supply voltage range of the NC7SV74L8X?
The operating supply voltage range is from 0.9 V to 3.6 V. - What is the package type of the NC7SV74L8X?
The package type is 8-Lead MicroPak (UQFN8). - Is the NC7SV74L8X Pb-Free?
Yes, the NC7SV74L8X is Pb-Free and compliant with RoHS standards. - What logic type does the NC7SV74L8X use?
The NC7SV74L8X uses CMOS logic. - What are some typical applications of the NC7SV74L8X?
Typical applications include battery-powered devices, portable electronics, automotive and industrial control systems, and consumer electronics. - How many input and output lines does the NC7SV74L8X have?
The NC7SV74L8X has 1 input line and 1 output line. - What family does the NC7SV74L8X belong to?
The NC7SV74L8X belongs to the TinyLogic® ULP-A family. - Is the NC7SV74L8X suitable for high-noise environments?
Yes, the CMOS technology used in the NC7SV74L8X provides high noise immunity. - What is the typical use case for the NC7SV74L8X in digital logic circuits?
The NC7SV74L8X is typically used as a D-Type Flip-Flop in digital logic circuits. - Where can I find detailed specifications for the NC7SV74L8X?
Detailed specifications can be found on the official onsemi website, as well as on distributor websites like Mouser and TME.
