Overview

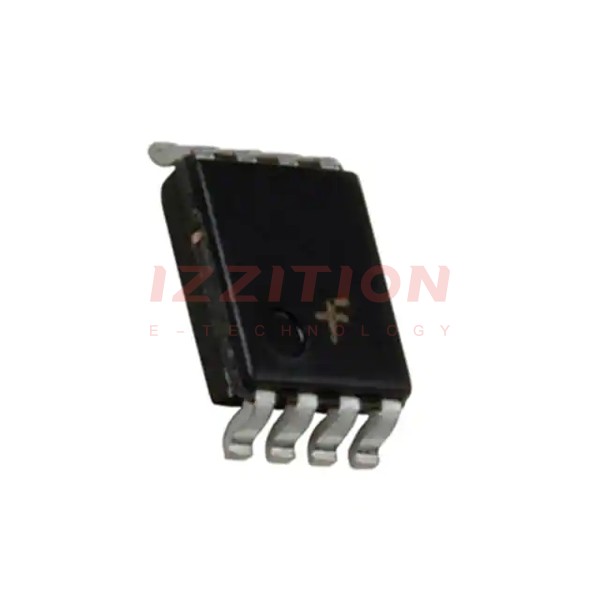

The NC7NZ17K8X is a triple buffer with Schmitt trigger inputs, part of onsemi's Ultra High Speed Series of TinyLogic. This device is fabricated using advanced CMOS technology, enabling ultra-high speed operation with high output drive while maintaining low static power dissipation over a broad VCC operating range of 1.65 V to 5.5 V. The NC7NZ17K8X is packaged in a space-saving US8 surface mount package, making it suitable for a variety of applications requiring high-speed and low power consumption.
Key Specifications
| Attribute | Value |
|---|---|
| Logic Circuit | Buffer |
| No of Functions / Channels | 3 |
| Supply Voltage-Nom | 1.65 V to 5.5 V |
| Power Dissipation | 0.25 W |
| Propagation Delay | 3.6 ns (Typ into 50 pF at 5 V VCC) |
| Operating Temperature | -40°C to +85°C |
| Capacitance | 2.5 pF |
| No of Inputs | 3 |
| No of Outputs | Triple |
| High Level Output Current | -32 mA |
| Low Level Output Current | 32 mA |
| No of Pins | 8 |
| Quiescent Current | 1 µA |
| Moisture Sensitivity Level | 1 |
| Package Style | US-8 |
| Mounting Method | Surface Mount |
Key Features
- High Output Drive: ±24 mA at 3 V VCC
- Space Saving US8 Surface Mount Package: Compact design for efficient use of space
- Power Down High Impedance Inputs/Outputs: Reduces power consumption when not in use
- Broad VCC Operating Range: 1.65 V to 5.5 V, facilitating a wide range of applications
- Ultra High Speed: Propagation delay of 3.6 ns (Typ into 50 pF at 5 V VCC)
- Overvoltage Tolerant Inputs: Facilitates 5 V to 3 V translation
- Proprietary Noise/EMI Reduction Circuitry: Enhances signal integrity and reduces electromagnetic interference
- Pb-Free, Halogen Free/BFR Free and RoHS Compliant: Environmentally friendly and compliant with regulatory standards
Applications
- Automation
- Broadband Modem
- Broadcast & Studio
- Camcorder
- CRT/RPTV
- Desktop PC
- LCD Monitor
- Printer
- Set Top Boxes
Q & A
- What is the NC7NZ17K8X?
The NC7NZ17K8X is a triple buffer with Schmitt trigger inputs from onsemi's Ultra High Speed Series of TinyLogic.
- What is the operating voltage range of the NC7NZ17K8X?
The device operates over a broad VCC range of 1.65 V to 5.5 V.
- What is the propagation delay of the NC7NZ17K8X?
The propagation delay is typically 3.6 ns into 50 pF at 5 V VCC.
- What is the high level output current of the NC7NZ17K8X?
The high level output current is -32 mA.
- Is the NC7NZ17K8X RoHS compliant?
Yes, the device is Pb-Free, Halogen Free/BFR Free and RoHS compliant.
- What are the key features of the NC7NZ17K8X?
Key features include high output drive, space-saving US8 package, power down high impedance inputs/outputs, broad VCC operating range, ultra-high speed, overvoltage tolerant inputs, and proprietary noise/EMI reduction circuitry.
- What are some common applications of the NC7NZ17K8X?
Common applications include automation, broadband modems, broadcast & studio equipment, camcorders, CRT/RPTV, desktop PCs, LCD monitors, printers, and set top boxes.
- What is the operating temperature range of the NC7NZ17K8X?
The operating temperature range is -40°C to +85°C.
- How many inputs and outputs does the NC7NZ17K8X have?
The device has 3 inputs and 3 outputs.
- What is the quiescent current of the NC7NZ17K8X?
The quiescent current is 1 µA.
