Overview

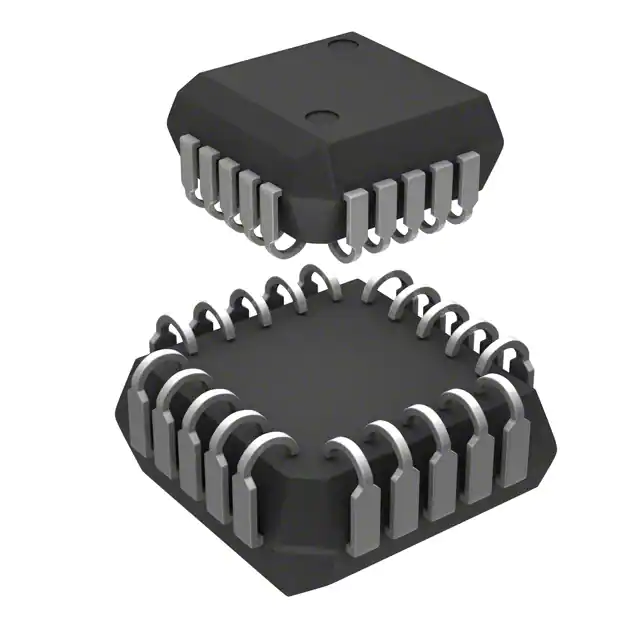

The MC10H131FNR2G is a dual 2-input NAND gate integrated circuit manufactured by onsemi. This component is part of the MC10H series, known for its high-speed performance and compatibility with ECL (Emitter-Coupled Logic) systems. Although the product is no longer in active production, it remains relevant for legacy systems and specific applications requiring ECL logic.
Key Specifications
| Attribute | Description |
|---|---|
| Number of Channels | 2 Channel |
| Number of Input Lines | 2 |
| Number of Output Lines | 2 |
| Operating Supply Voltage | -5.2 V to -5.7 V (Typical: -5.5 V) |
| RoHS Status | ROHS3 Compliant |
Key Features
- Dual 2-input NAND gate configuration, providing two independent logic gates in a single package.
- High-speed operation, making it suitable for applications requiring fast logic processing.
- ECL compatible, allowing integration with other ECL-based components.
- Low power consumption, which is beneficial for power-sensitive designs.
Applications
The MC10H131FNR2G is typically used in high-speed digital logic circuits, particularly in systems that require ECL logic. Common applications include:
- High-speed data processing systems.
- Telecommunication equipment.
- Networking hardware.
- Legacy systems that still utilize ECL technology.
Q & A
- What is the MC10H131FNR2G?
The MC10H131FNR2G is a dual 2-input NAND gate integrated circuit manufactured by onsemi.
- Is the MC10H131FNR2G still in production?
No, the MC10H131FNR2G is no longer in active production.
- What is the typical operating supply voltage for the MC10H131FNR2G?
The typical operating supply voltage is -5.5 V, with a range of -5.2 V to -5.7 V.
- Is the MC10H131FNR2G RoHS compliant?
- What are the key applications of the MC10H131FNR2G?
It is used in high-speed digital logic circuits, particularly in systems that require ECL logic, such as high-speed data processing systems, telecommunication equipment, and networking hardware.
- How many channels does the MC10H131FNR2G have?
The MC10H131FNR2G has 2 channels.
- How many input and output lines does each channel have?
Each channel has 2 input lines and 2 output lines.
- What logic function does the MC10H131FNR2G perform?
The MC10H131FNR2G performs a NAND logic function.
- Why is the MC10H131FNR2G still relevant despite being discontinued?
It remains relevant for legacy systems and specific applications that still utilize ECL technology.
- Where can I find detailed specifications for the MC10H131FNR2G?
Detailed specifications can be found in the datasheet available from sources like Mouser, Digi-Key, and the onsemi website.
