Overview

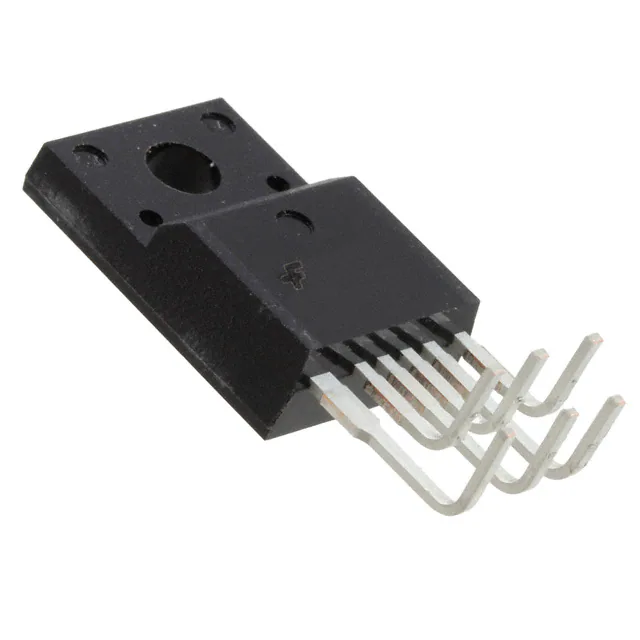

The FSL176MRTUDTU is a Green-Mode Fairchild Power Switch (FPS™) produced by onsemi. This integrated circuit is designed for offline flyback converter applications, offering high efficiency and reliability. It is part of the FPS family, which is known for its energy-saving features and robust performance. The device is packaged in a TO-220F-6L (U-Forming) package, making it suitable for a variety of power supply designs.
Key Specifications
| Parameter | Value |
|---|---|
| Maximum Operating Current | 0.5 mA |
| Switching Frequency | 73 kHz |
| Soft Start Option | Yes |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
| Package Type | TO-220F-6L (U-Forming) |
Key Features
- Green-Mode operation for high efficiency and low standby power consumption.
- Internal soft-start function to reduce the stress on the power switch during startup.
- Over-temperature protection (OTP) and over-current protection (OCP) for enhanced reliability.
- Low startup current and low operating current to minimize power losses.
- Frequency modulation to reduce EMI and improve noise immunity.
Applications
The FSL176MRTUDTU is suitable for a wide range of offline flyback converter applications, including:
- Power adapters for consumer electronics.
- LED lighting power supplies.
- Home appliances such as vacuum cleaners and air conditioners.
- Industrial power supplies and control systems.
Q & A
- What is the maximum operating current of the FSL176MRTUDTU?
The maximum operating current is 0.5 mA. - What is the switching frequency of the FSL176MRTUDTU?
The switching frequency is 73 kHz. - Does the FSL176MRTUDTU have a soft start option?
Yes, it does have a soft start option. - What is the operating temperature range of the FSL176MRTUDTU?
The operating temperature range is from -40°C to +125°C. - What type of package does the FSL176MRTUDTU come in?
The device is packaged in a TO-220F-6L (U-Forming) package. - What are the key features of the FSL176MRTUDTU?
The key features include Green-Mode operation, internal soft-start, over-temperature and over-current protection, low startup and operating current, and frequency modulation. - What are some common applications of the FSL176MRTUDTU?
Common applications include power adapters, LED lighting power supplies, home appliances, and industrial power supplies. - Is the FSL176MRTUDTU suitable for high-temperature environments?
Yes, it is suitable for environments with temperatures up to +125°C. - Does the FSL176MRTUDTU have built-in protection mechanisms?
Yes, it has over-temperature protection (OTP) and over-current protection (OCP). - How does the FSL176MRTUDTU reduce EMI?
The device uses frequency modulation to reduce EMI and improve noise immunity.
