Overview

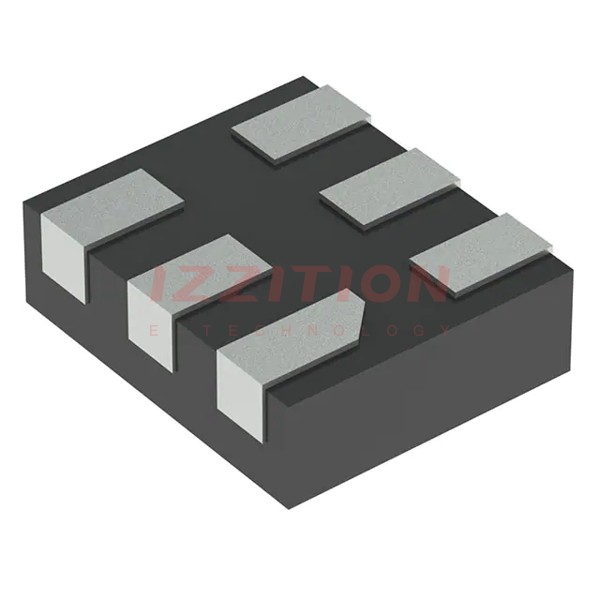

The ESDR0502NMUTBG is an ultra-low capacitance ESD (Electrostatic Discharge) protection array manufactured by onsemi. This component is designed to protect high-speed data lines from ESD events, ensuring the reliability and integrity of electronic systems. It is packaged in a compact uDFN6 format, making it suitable for space-constrained applications.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Peak Pulse Current (Ipp) | 3 A |
| Peak Pulse Power Dissipation (Pppm) | 100 W |
| Diode Capacitance (Cd) | 0.6 pF |
| Voltage ESD Contact (Vesd) | 8 kV |
Key Features
- Ultra-low capacitance to minimize signal distortion and ensure high-speed data line integrity.
- Compact uDFN6 package for space-efficient designs.
- High ESD protection with a voltage ESD contact rating of 8 kV.
- Low clamping voltage to protect sensitive electronic components.
- Suitable for high-speed data lines such as USB, HDMI, and Ethernet.
Applications
The ESDR0502NMUTBG is ideal for protecting high-speed data lines in various applications, including:
- USB interfaces
- HDMI ports
- Ethernet connections
- Other high-speed digital interfaces
- Consumer electronics
- Industrial control systems
- Automotive electronics
Q & A
- What is the typical reverse standoff voltage of the ESDR0502NMUTBG?
The typical reverse standoff voltage is 5.5V (maximum). - What is the minimum breakdown voltage of the ESDR0502NMUTBG?
The minimum breakdown voltage is 6V. - What is the peak pulse current (Ipp) rating of the ESDR0502NMUTBG?
The peak pulse current (Ipp) rating is 3 A. - What is the peak pulse power dissipation (Pppm) of the ESDR0502NMUTBG?
The peak pulse power dissipation (Pppm) is 100 W. - What is the diode capacitance (Cd) of the ESDR0502NMUTBG?
The diode capacitance (Cd) is 0.6 pF. - What is the voltage ESD contact (Vesd) rating of the ESDR0502NMUTBG?
The voltage ESD contact (Vesd) rating is 8 kV. - In what package is the ESDR0502NMUTBG available?
The ESDR0502NMUTBG is available in a uDFN6 package. - What are some common applications for the ESDR0502NMUTBG?
Common applications include USB interfaces, HDMI ports, Ethernet connections, and other high-speed digital interfaces. - Why is ultra-low capacitance important in ESD protection arrays?
Ultra-low capacitance is important to minimize signal distortion and ensure the integrity of high-speed data lines. - Is the ESDR0502NMUTBG suitable for automotive electronics?
Yes, the ESDR0502NMUTBG is suitable for automotive electronics due to its robust ESD protection capabilities.
