CPH6123-TL-E
  • Share:

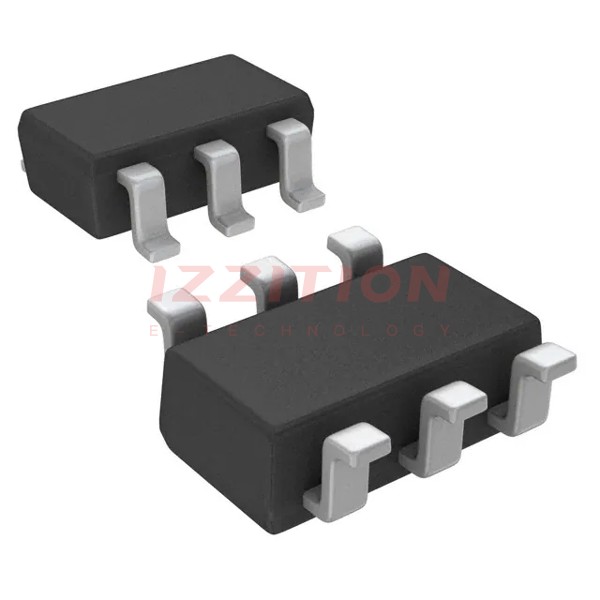

onsemi CPH6123-TL-E

Manufacturer No:
CPH6123-TL-E
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
TRANS PNP 50V 3A 6CPH
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The CPH6123-TL-E is a PNP bipolar junction transistor (BJT) manufactured by onsemi. This transistor is designed for a wide range of applications requiring high current and voltage handling capabilities. It is packaged in a SOT-457-6 format, making it suitable for various electronic circuits where space efficiency is crucial.

Key Specifications

Parameter Symbol Conditions Ratings Unit
Transistor Type - - PNP -
Collector-Emitter Breakdown Voltage Vceo - 50 V V
Emitter-Base Voltage VEBO - 6 V V
Collector-Emitter Saturation Voltage Vce(sat) @ Ib, Ic 650 mV V
Collector Current (Max) Ic - 3 A A
Power Dissipation Pd - 1.3 W W
Gain Bandwidth Product fT - 390 MHz MHz

Key Features

  • High Current Handling: The CPH6123-TL-E can handle a maximum collector current of 3 A, making it suitable for applications requiring significant current flow.
  • High Voltage Capability: With a collector-emitter breakdown voltage of 50 V, this transistor can operate in circuits with high voltage requirements.
  • Low Saturation Voltage: The transistor has a low collector-emitter saturation voltage of 650 mV, which helps in reducing power losses in switching applications.
  • Compact Packaging: The SOT-457-6 package is compact and suitable for space-constrained designs.
  • High Gain Bandwidth Product: The transistor has a gain bandwidth product of 390 MHz, making it suitable for high-frequency applications.

Applications

  • Power Amplifiers: The high current and voltage handling capabilities make the CPH6123-TL-E suitable for power amplifier circuits.
  • Switching Circuits: The low saturation voltage and high current handling make it ideal for switching applications such as motor drivers and power supplies.
  • High-Frequency Circuits: The high gain bandwidth product makes this transistor suitable for high-frequency applications such as RF amplifiers and oscillators.
  • Automotive and Industrial Control: The robust specifications of the CPH6123-TL-E make it a good choice for automotive and industrial control systems.

Q & A

  1. What is the maximum collector current of the CPH6123-TL-E?

    The maximum collector current is 3 A.

  2. What is the collector-emitter breakdown voltage of the CPH6123-TL-E?

    The collector-emitter breakdown voltage is 50 V.

  3. What is the emitter-base voltage of the CPH6123-TL-E?

    The emitter-base voltage is 6 V.

  4. What is the power dissipation of the CPH6123-TL-E?

    The power dissipation is 1.3 W.

  5. What is the gain bandwidth product of the CPH6123-TL-E?

    The gain bandwidth product is 390 MHz.

  6. What type of transistor is the CPH6123-TL-E?

    The CPH6123-TL-E is a PNP bipolar junction transistor (BJT).

  7. What is the package type of the CPH6123-TL-E?

    The package type is SOT-457-6.

  8. What are some common applications of the CPH6123-TL-E?

    Common applications include power amplifiers, switching circuits, high-frequency circuits, and automotive and industrial control systems.

  9. What is the collector-emitter saturation voltage of the CPH6123-TL-E?

    The collector-emitter saturation voltage is 650 mV.

  10. Is the CPH6123-TL-E RoHS compliant?

    Yes, the CPH6123-TL-E is RoHS compliant.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):3 A
Voltage - Collector Emitter Breakdown (Max):50 V
Vce Saturation (Max) @ Ib, Ic:650mV @ 100mA, 2A
Current - Collector Cutoff (Max):1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:200 @ 100mA, 2V
Power - Max:1.3 W
Frequency - Transition:390MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SC-74, SOT-457
Supplier Device Package:6-CPH
0 Remaining View Similar

In Stock

$0.50
1,714

Please send RFQ , we will respond immediately.

Same Series
CPH6223-TL-E
CPH6223-TL-E
TRANS NPN 50V 3A 6CPH

Similar Products

Part Number CPH6123-TL-E CPH6223-TL-E CPH6153-TL-E CPH3123-TL-E CPH6121-TL-E CPH6122-TL-E
Manufacturer onsemi onsemi onsemi Sanyo onsemi onsemi
Product Status Active Active Obsolete Active Not For New Designs Active
Transistor Type PNP NPN PNP PNP PNP PNP
Current - Collector (Ic) (Max) 3 A 3 A 3 A 3 A 3 A 3 A
Voltage - Collector Emitter Breakdown (Max) 50 V 50 V 20 V 50 V 12 V 30 V
Vce Saturation (Max) @ Ib, Ic 650mV @ 100mA, 2A 240mV @ 100mA, 2A 195mV @ 75mA, 1.5A 650mV @ 100mA, 2A 165mV @ 30mA, 1.5A 180mV @ 75mA, 1.5A
Current - Collector Cutoff (Max) 1µA (ICBO) 1µA (ICBO) 100nA (ICBO) 1µA (ICBO) 100nA (ICBO) 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 200 @ 100mA, 2V 200 @ 100mA, 2V 200 @ 100mA, 2V 200 @ 100mA, 2V 200 @ 500mA, 2V 200 @ 500mA, 2V
Power - Max 1.3 W 1.3 W 1.3 W 900 mW 1.3 W 1.3 W
Frequency - Transition 390MHz 380MHz 500MHz 390MHz 380MHz 400MHz
Operating Temperature 150°C (TJ) 150°C (TJ) 150°C (TJ) 150°C (TJ) 150°C (TJ) 150°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case SC-74, SOT-457 SC-74, SOT-457 SOT-23-6 Thin, TSOT-23-6 TO-236-3, SC-59, SOT-23-3 SC-74, SOT-457 SOT-23-6 Thin, TSOT-23-6
Supplier Device Package 6-CPH 6-CPH 6-CPH 3-CPH 6-CPH 6-CPH
