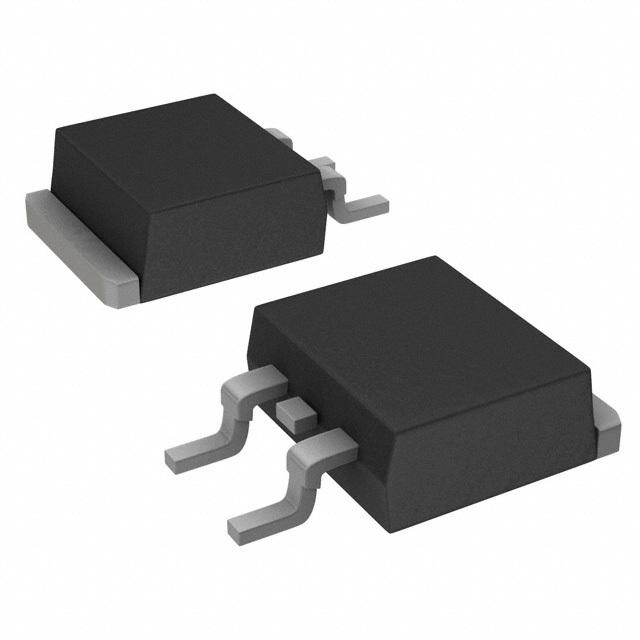

onsemi BUB323ZT4G

Manufacturer No:
BUB323ZT4G
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
TRANS NPN DARL 350V 10A D2PAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The onsemi BUB323ZT4G is a high-performance NPN Silicon Power Darlington transistor designed for high-voltage applications. It is packaged in a D2PAK (TO-263) case, which is suitable for surface mount technology (SMT). This transistor is known for its robust characteristics, including a built-in avalanche diode and a special high voltage driving circuit, making it ideal for various power management and control systems.

Key Specifications

ParameterValue
Transistor TypeNPN Darlington
Collector-Emitter Breakdown Voltage (Vceo)350 V
Maximum DC Collector Current10 A
DC Current Gain (hFE@Vce,Ic)500 @ 4.6 V, 5 A
Emitter-Base Voltage (VEBO)6 V
Power Dissipation (Pd)150 W
Mounting StyleSMD/SMT (D2PAK/TO-263)

Key Features

  • High voltage capability with a collector-emitter breakdown voltage of 350 V.
  • High current handling with a maximum DC collector current of 10 A.
  • High power dissipation of up to 150 W.
  • Built-in avalanche diode for protection against voltage spikes.
  • Special high voltage driving circuit for enhanced performance.
  • Surface mount technology (SMT) compatible D2PAK (TO-263) package.

Applications

The onsemi BUB323ZT4G is suitable for a variety of high-power applications, including:

  • Power management systems.
  • Motor control circuits.
  • High-voltage switching applications.
  • Automotive systems requiring high reliability and durability.
  • Industrial control systems.

Q & A

  1. What is the collector-emitter breakdown voltage of the BUB323ZT4G?
    The collector-emitter breakdown voltage is 350 V.
  2. What is the maximum DC collector current of the BUB323ZT4G?
    The maximum DC collector current is 10 A.
  3. What is the power dissipation capability of the BUB323ZT4G?
    The power dissipation capability is up to 150 W.
  4. What type of package does the BUB323ZT4G use?
    The BUB323ZT4G is packaged in a D2PAK (TO-263) case.
  5. Does the BUB323ZT4G have built-in protection features?
    Yes, it includes a built-in avalanche diode for protection against voltage spikes.
  6. What is the typical application of the BUB323ZT4G?
    The BUB323ZT4G is typically used in high-power applications such as power management systems, motor control circuits, and high-voltage switching applications.
  7. Is the BUB323ZT4G suitable for automotive applications?
    Yes, it is suitable for automotive systems due to its high reliability and durability.
  8. What is the DC current gain of the BUB323ZT4G?
    The DC current gain (hFE) is 500 @ 4.6 V, 5 A.
  9. Is the BUB323ZT4G compatible with surface mount technology (SMT)?
    Yes, it is SMT compatible.
  10. What is the emitter-base voltage (VEBO) of the BUB323ZT4G?
    The emitter-base voltage (VEBO) is 6 V.

Product Attributes

Transistor Type:NPN - Darlington
Current - Collector (Ic) (Max):10 A
Voltage - Collector Emitter Breakdown (Max):350 V
Vce Saturation (Max) @ Ib, Ic:1.7V @ 250mA, 10A
Current - Collector Cutoff (Max):100µA
DC Current Gain (hFE) (Min) @ Ic, Vce:500 @ 5A, 4.6V
Power - Max:150 W
Frequency - Transition:2MHz
Operating Temperature:-65°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package:D²PAK
