Overview

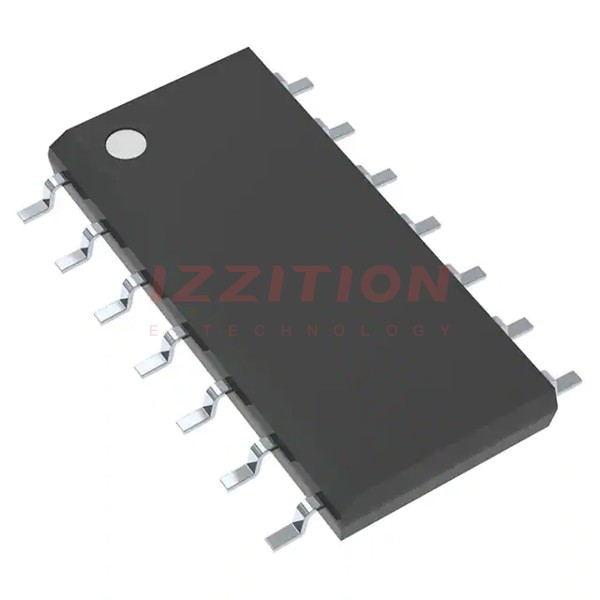

The 74HCU04DR2G is a hex unbuffered inverter integrated circuit produced by onsemi. This component is part of the standard logic family and is designed to provide high noise immunity and low power dissipation. It operates within a wide supply voltage range from 2.0 V to 6.0 V, making it versatile for various applications. The 74HCU04DR2G is packaged in a 14-pin SOIC (Small Outline Integrated Circuit) package and is specified to operate over a temperature range from -40 °C to +125 °C.
Key Specifications
Parameter | Conditions | Min | Typ | Max | Unit |
---|---|---|---|---|---|
VCC (Supply Voltage) | - | -0.5 | - | 7.0 | V |
IOH (HIGH-level Output Voltage) | IO = -5.2 mA; VCC = 6.0 V | 5.48 | - | 5.81 | V |
IOL (LOW-level Output Voltage) | IO = 5.2 mA; VCC = 6.0 V | -0.16 | - | 0.26 | V |
ICC (Supply Current) | VI = VCC or GND; IO = 0 A; VCC = 6.0 V | - | - | 20 | μA |
tpd (Propagation Delay Time) | VCC = 6.0 V; CL = 50 pF | 6 | - | 12 | ns |
Tstg (Storage Temperature) | - | -65 | - | 150 | °C |
Tamb (Ambient Operating Temperature) | - | -40 | - | 125 | °C |
Key Features
- Wide Supply Voltage Range: Operates from 2.0 V to 6.0 V.
- CMOS Low Power Dissipation: Low power consumption, making it suitable for battery-powered devices.
- High Noise Immunity: Provides robust performance in noisy environments.
- Latch-up Performance: Exceeds 100 mA per JESD 78 Class II Level B.
- ESD Protection: HBM (Human Body Model) exceeds 2000 V and CDM (Charged Device Model) exceeds 1000 V.
- Multiple Package Options: Available in various package types, including 14-pin SOIC.
- Compliance with Industry Standards: Complies with JEDEC standards JESD8C and JESD7A).
Applications
The 74HCU04DR2G is suitable for a variety of applications where low power consumption and high noise immunity are critical. These include:
- Consumer Electronics: Used in devices such as smartphones, tablets, and other portable electronics.
- Industrial Control Systems: Applied in control circuits where reliability and low power consumption are essential.
- Automotive Systems: Utilized in automotive electronics for signal inversion and logic operations.
- Medical Devices: Employed in medical equipment where low power and high reliability are required.
Q & A
- What is the supply voltage range of the 74HCU04DR2G?
The supply voltage range is from 2.0 V to 6.0 V).
- What is the typical propagation delay time for the 74HCU04DR2G?
The typical propagation delay time is 6 ns at VCC = 6.0 V and CL = 50 pF).
- Does the 74HCU04DR2G have ESD protection?
- What is the operating temperature range of the 74HCU04DR2G?
The operating temperature range is from -40 °C to +125 °C).
- What package type is the 74HCU04DR2G available in?
- Is the 74HCU04DR2G compliant with industry standards?
- What is the maximum supply current for the 74HCU04DR2G?
- Can the 74HCU04DR2G be used in high noise environments?
- What is the storage temperature range for the 74HCU04DR2G?
- How many inverters are included in the 74HCU04DR2G?
