PUMH2/HE115
  • Share:

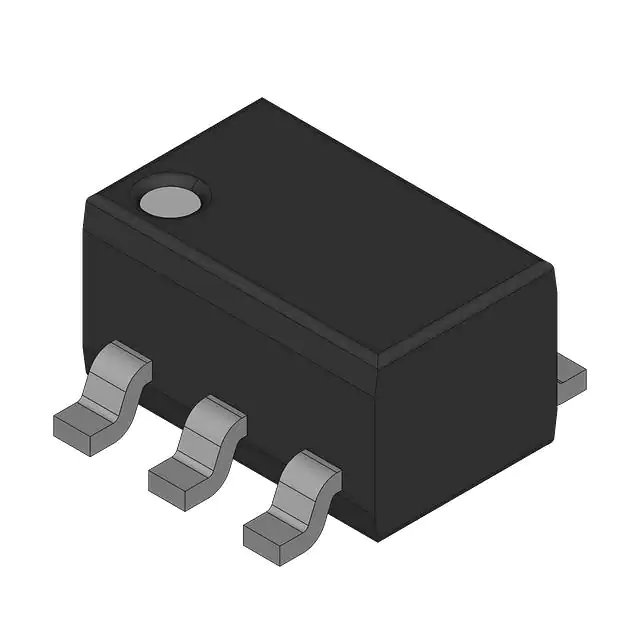

NXP USA Inc. PUMH2/HE115

Manufacturer No:
PUMH2/HE115
Manufacturer:
NXP USA Inc.
Package:
Bulk
Description:
SMALL SIGNAL BIPOLAR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PUMH2/HE115 is a small signal bipolar transistor array produced by NXP USA Inc., now part of Nexperia. This component is designed as a pre-biased dual NPN transistor, packaged in a 6-TSSOP (Thin Shrink Small Outline Package) configuration. It is part of NXP's extensive range of discrete semiconductor products, known for their reliability and performance in various electronic applications.

Key Specifications

ParameterValue
Transistor TypePre-Biased Dual NPN
Package Type6-TSSOP (SC-88)
Voltage Rating (Vceo)50V
Current Rating (Ic)100mA
Power Dissipation (Pd)300mW
Moisture Sensitivity Level (MSL)1 (Unlimited)
RoHS StatusNot applicable

Key Features

The PUMH2/HE115 features pre-biased transistors, which simplify circuit design by reducing the number of external components required. It has a compact 6-TSSOP package, making it suitable for space-constrained applications. The component is also known for its low power consumption and high reliability, making it a preferred choice in various electronic circuits.

Applications

The PUMH2/HE115 is widely used in a variety of applications, including audio amplifiers, switching circuits, and general-purpose amplification. It is particularly suitable for use in automotive, industrial, and consumer electronics due to its robust performance and compact packaging.

Q & A

  1. What is the PUMH2/HE115?

    The PUMH2/HE115 is a pre-biased dual NPN bipolar transistor array in a 6-TSSOP package.

  2. Who manufactures the PUMH2/HE115?

    The PUMH2/HE115 is manufactured by NXP USA Inc., now part of Nexperia.

  3. What is the voltage rating of the PUMH2/HE115?

    The voltage rating (Vceo) of the PUMH2/HE115 is 50V.

  4. What is the current rating of the PUMH2/HE115?

    The current rating (Ic) of the PUMH2/HE115 is 100mA.

  5. What is the power dissipation of the PUMH2/HE115?

    The power dissipation (Pd) of the PUMH2/HE115 is 300mW.

  6. What is the package type of the PUMH2/HE115?

    The PUMH2/HE115 is packaged in a 6-TSSOP (SC-88) configuration.

  7. Is the PUMH2/HE115 RoHS compliant?

    The PUMH2/HE115 is not applicable for RoHS compliance.

  8. What is the moisture sensitivity level (MSL) of the PUMH2/HE115?

    The MSL of the PUMH2/HE115 is 1 (Unlimited).

  9. In what applications is the PUMH2/HE115 commonly used?

    The PUMH2/HE115 is commonly used in audio amplifiers, switching circuits, and general-purpose amplification, particularly in automotive, industrial, and consumer electronics.

  10. What are the benefits of using pre-biased transistors like the PUMH2/HE115?

    Pre-biased transistors like the PUMH2/HE115 simplify circuit design by reducing the number of external components required and offer low power consumption and high reliability.

Product Attributes

Transistor Type:-
Current - Collector (Ic) (Max):-
Voltage - Collector Emitter Breakdown (Max):-
Vce Saturation (Max) @ Ib, Ic:-
Current - Collector Cutoff (Max):-
DC Current Gain (hFE) (Min) @ Ic, Vce:-
Power - Max:-
Frequency - Transition:-
Operating Temperature:-
Mounting Type:-
Package / Case:-
Supplier Device Package:-
0 Remaining View Similar

In Stock

$0.03
24,944

Please send RFQ , we will respond immediately.
