Overview
The PCF7900VHN/C0L,118 is a single-chip Fractional-N PLL Transmitter IC designed by NXP USA Inc. This component is tailored for operation in the 315 MHz, 434 MHz, 868 MHz, and 915 MHz frequency bands, making it suitable for ISM (Industrial, Scientific, and Medical) and SRD (Short Range Devices) applications. The device features a compact 16-VFQFN Exposed Pad package, ensuring a small footprint and high performance in various wireless communication systems.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer | NXP USA Inc. |

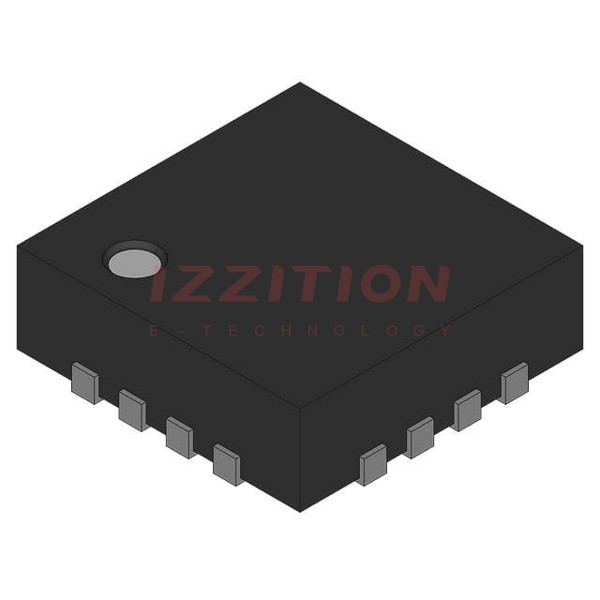

| Package Type | 16-VFQFN Exposed Pad |
| Number of Pins | 16 |
| Operating Frequency | 315 MHz, 434 MHz, 868 MHz, 915 MHz |
| Operating Supply Current | 7 mA |
| Output Power | 6 dBm |
| Modulation | OOK / ASK / FSK |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Operating Temperature | - (General Purpose) |
Key Features
- Compact 16-VFQFN Exposed Pad package for reduced footprint.
- Multi-channel capability for versatile application use.
- Programmable OOK / ASK / FSK modulation for different transmission needs.
- Compliance with RoHS3 regulations and halogen-free, lead-free design.
- Moisture resistance with MSL 1 (Unlimited) rating.
- Surface mount antenna integration for ease of use.
Applications
The PCF7900VHN/C0L,118 is designed for general-purpose wireless communication applications, including but not limited to:
- ISM and SRD bands.
- Wireless remote controls.
- Wireless sensors and IoT devices.
- Industrial automation and control systems.
Q & A
- What are the operating frequencies of the PCF7900VHN/C0L,118?
The PCF7900VHN/C0L,118 operates at 315 MHz, 434 MHz, 868 MHz, and 915 MHz. - What is the package type of the PCF7900VHN/C0L,118?
The package type is 16-VFQFN Exposed Pad. - What is the maximum output power of the PCF7900VHN/C0L,118?
The maximum output power is 6 dBm. - What types of modulation does the PCF7900VHN/C0L,118 support?
The device supports OOK / ASK / FSK modulation. - Is the PCF7900VHN/C0L,118 RoHS compliant?
Yes, it is RoHS compliant and lead-free. - What is the moisture sensitivity level (MSL) of the PCF7900VHN/C0L,118?
The MSL is 1 (Unlimited). - What is the typical operating supply current of the PCF7900VHN/C0L,118?
The typical operating supply current is 7 mA. - Can the PCF7900VHN/C0L,118 be used in surface mount applications?
Yes, it is designed for surface mount applications. - What are some common applications of the PCF7900VHN/C0L,118?
Common applications include ISM and SRD bands, wireless remote controls, wireless sensors, and industrial automation. - Is the PCF7900VHN/C0L,118 halogen-free?
Yes, it is halogen-free.
