Overview

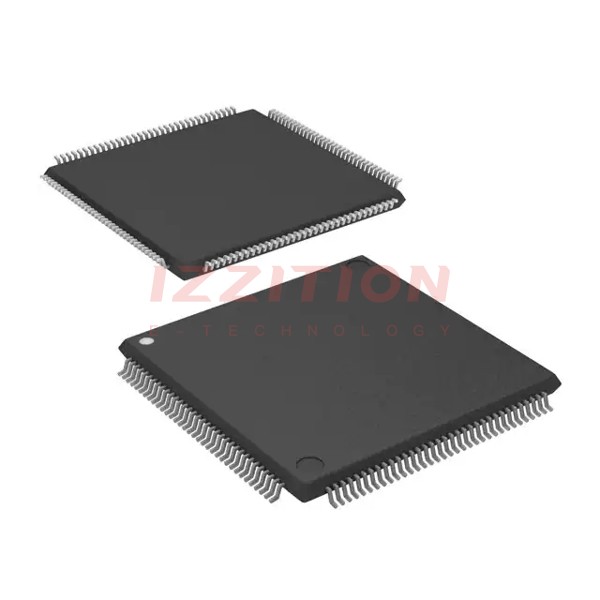

The MK66FX1M0VLQ18 is a high-performance microcontroller from NXP USA Inc., part of the Kinetis K66 sub-family. This device is based on the ARM® Cortex®-M4F processor and is designed to offer enhanced performance, extensive memory options, and advanced peripheral integration. It is particularly suited for applications requiring high-speed processing, low power consumption, and robust security features.
Key Specifications
| Parameter | Description | Value |
|---|---|---|
| Processor | ARM® Cortex®-M4F | - |
| Operating Frequency | Up to 180 MHz | - |
| Flash Memory | Up to 1 MB (FlexMemory devices) | - |
| SRAM | 256 KB | - |
| Package Type | 144-LQFP | - |
| Voltage Range | 1.71 to 3.6 V | - |
| Temperature Range | -40 to 105°C | - |
| Communication Interfaces | Ethernet, USB, SPI, I2C, UART, SDHC, I2S | - |
| Analog Modules | Two 16-bit SAR ADCs, Two 12-bit DACs, Four analog comparators | - |
| Security Features | DES, AES, SHA accelerator (CAU), Memory Security, Hardware random-number generator | - |
Key Features
- High Performance: Operates at up to 180 MHz with a High Speed Run mode.
- Memory Options: Up to 2 MB total flash and 256 KB of SRAM, with FlexMemory and FlexNVM configurations.
- Peripheral Integration: Includes Dual USB, 10/100 Mbit/s Ethernet MAC, and multiple timers and interfaces.
- Low Power Modes: Multiple low-power modes for power optimization.
- Security: Supports DES, AES, SHA acceleration, and hardware random-number generation.
- Analog Modules: Features two 16-bit SAR ADCs, two 12-bit DACs, and four analog comparators.
- Human-Machine Interface: Includes a low-power hardware touch sensor interface (TSI).
Applications
- Industrial Automation: Suitable for control systems, robotics, and industrial IoT applications.
- Medical Devices: Used in medical equipment requiring high precision and reliability.
- Consumer Electronics: Ideal for smart home devices, wearables, and other consumer electronics.
- Automotive Systems: Can be used in automotive control units and infotainment systems.
- Internet of Things (IoT): Suitable for various IoT applications due to its low power consumption and robust security features.
Q & A
- What is the maximum operating frequency of the MK66FX1M0VLQ18 microcontroller?
The maximum operating frequency is up to 180 MHz.
- What are the memory options available for this microcontroller?
It offers up to 1 MB of flash memory and 256 KB of SRAM, with FlexMemory and FlexNVM configurations.
- Does the MK66FX1M0VLQ18 support Ethernet communication?
- What are the security features of this microcontroller?
- What is the temperature range for the MK66FX1M0VLQ18?
- Does the microcontroller have low power modes?
- What types of analog modules are integrated into this microcontroller?
- Is the MK66FX1M0VLQ18 compatible with existing Kinetis family devices?
- What is the package type of the MK66FX1M0VLQ18?
- Does the microcontroller support USB and other communication interfaces?
