Overview
The MK66FN2M0VMD18 is a high-performance microcontroller from NXP USA Inc., part of the Kinetis K66 sub-family. This device is built on the Arm® Cortex®-M4F core, operating at a frequency of up to 180 MHz. It is designed to provide advanced features and high peripheral integration, making it suitable for a wide range of applications that require significant processing power and memory.
The microcontroller maintains hardware and software compatibility with the existing Kinetis family, ensuring ease of integration and development. Key features include dual USB interfaces, a 10/100 Mbit/s Ethernet MAC, and multiple low-power modes for power optimization.
Key Specifications
| Parameter | Description | Value |
|---|---|---|
| Core | Arm® Cortex®-M4F | Up to 180 MHz |
| Flash Memory | Program flash memory | Up to 2 MB |
| SRAM | Static RAM | 256 KB |

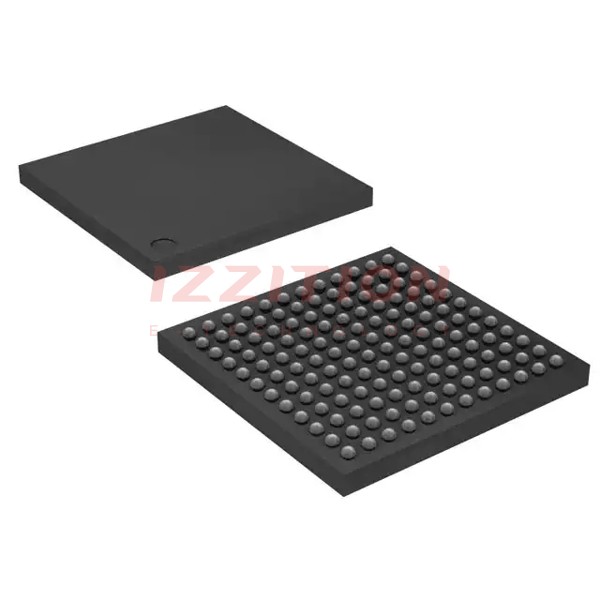

| Package | 144 MAPBGA (MD) | 13 mm x 13 mm, Pitch 1 mm |
| Voltage Range | Digital supply voltage | 1.71 to 3.6 V |
| Temperature Range | Ambient temperature | -40 to 105°C |
| Communication Interfaces | Ethernet, USB, SPI, I2C, UART, CAN | Multiple interfaces including Ethernet with MII and RMII, dual USB, three SPI, four I2C, and five UARTs |
| Timers | Periodic interrupt timers, low-power timers, PWM modules | Four periodic interrupt timers, 16-bit low-power timers, PWM modules, and quad decoder/general purpose timers |
| Security Features | Hardware random-number generator, DES, AES, SHA accelerator | Multiple levels of embedded flash security, hardware random-number generator, and cryptographic accelerators |
Key Features
- High-Performance Core: Based on the Arm® Cortex®-M4F core, operating at up to 180 MHz.
- Memory Options: Up to 2 MB of program flash memory and 256 KB of SRAM.
- Peripheral Integration: Includes dual USB interfaces, a 10/100 Mbit/s Ethernet MAC, and multiple communication interfaces such as SPI, I2C, UART, and CAN.
- Low-Power Modes: Multiple low-power modes to optimize power consumption based on application requirements.
- Analog Modules: Two 16-bit SAR ADCs, two 12-bit DACs, and four analog comparators.
- Security Features: Hardware random-number generator, DES, AES, SHA accelerator, and multiple levels of embedded flash security.
- Human-Machine Interface: Low-power hardware touch sensor interface (TSI) and general-purpose input/output.
Applications
- Industrial Automation: Suitable for industrial control systems, motor control, and automation applications.
- Medical Devices: Can be used in medical devices requiring high processing power and advanced peripherals.
- Consumer Electronics: Applicable in consumer electronics such as smart home devices, wearables, and IoT devices.
- Automotive Systems: Used in automotive systems for infotainment, driver assistance, and vehicle control.
- Internet of Things (IoT): Ideal for IoT applications requiring robust processing, memory, and communication capabilities.
Q & A
- What is the core architecture of the MK66FN2M0VMD18 microcontroller?
The MK66FN2M0VMD18 is based on the Arm® Cortex®-M4F core.
- What is the maximum operating frequency of the MK66FN2M0VMD18?
The maximum operating frequency is up to 180 MHz.
- How much flash memory and SRAM does the MK66FN2M0VMD18 have?
The device has up to 2 MB of program flash memory and 256 KB of SRAM.
- What are the key communication interfaces available on the MK66FN2M0VMD18?
The device includes Ethernet with MII and RMII, dual USB, three SPI, four I2C, and five UARTs.
- Does the MK66FN2M0VMD18 support low-power modes?
Yes, it supports multiple low-power modes to optimize power consumption.
- What are the security features of the MK66FN2M0VMD18?
The device includes a hardware random-number generator, DES, AES, SHA accelerator, and multiple levels of embedded flash security.
- What is the temperature range for the MK66FN2M0VMD18?
The ambient temperature range is -40 to 105°C.
- What package options are available for the MK66FN2M0VMD18?
The device is available in a 144 MAPBGA (MD) package with dimensions 13 mm x 13 mm and a pitch of 1 mm.
- Does the MK66FN2M0VMD18 support analog peripherals?
Yes, it includes two 16-bit SAR ADCs, two 12-bit DACs, and four analog comparators.
- What human-machine interface features are available on the MK66FN2M0VMD18?
The device features a low-power hardware touch sensor interface (TSI) and general-purpose input/output.
