Overview
The LPC5516JBD64E is a 32-bit microcontroller from NXP Semiconductors, part of the LPC551x/S1x family. It is based on the Arm Cortex-M33 core and is designed for embedded applications, offering a balance of performance, power efficiency, and advanced security features. This microcontroller is integrated into the EdgeVerse™ edge computing platform and is certified under the EdgeLock® Assurance program, ensuring robust security solutions. The LPC5516JBD64E is particularly suited for industrial and general embedded markets, providing ease of use through pin-, software-, and peripheral-compatibility.
Key Specifications
| Specification | Details |
|---|---|
| Processor Core | Arm Cortex-M33 |
| Flash Memory | Up to 256 KB |
| SRAM | Up to 96 KB |
| ADC | 16-bit, 2.0 MSamples/sec, 10 single-ended or 5 differential channels |
| Temperature Sensor | Integrated temperature sensor connected to the ADC |
| Comparator | With five input pins and external or internal reference voltage |
| Clock Generation | Internal Free Running Oscillator (FRO) with 96 MHz and 12 MHz outputs |
| Power Supply | Single power supply 1.8 V to 3.6 V |
| Operating Temperature | -40°C to +105°C |

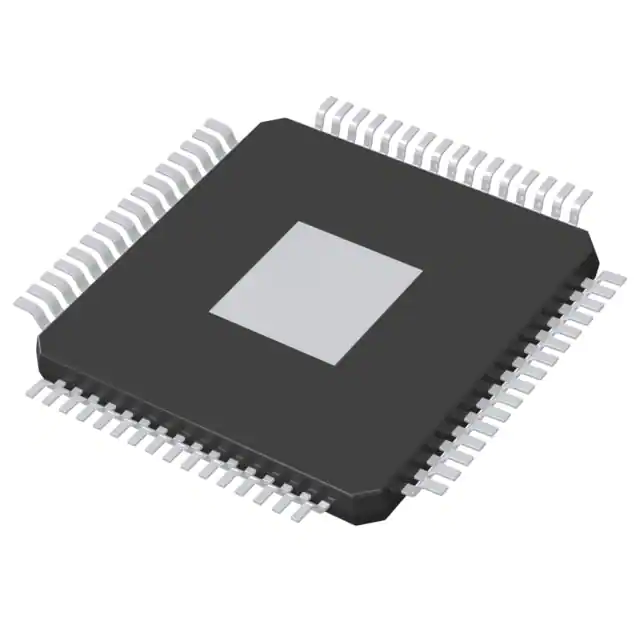

| Package | HTQFP64 |
| Security Features | CASPER Crypto co-processor, TrustZone®, AES, SHA, CRC, RNG, PUF |
| Interfaces | USB HS, Flexcomm (USART, SPI, I2C, I2S), CAN FD |
Key Features
- Advanced Security: Integrated CASPER Crypto co-processor for hardware acceleration of cryptographic functions like Elliptic Curve Cryptography (ECC), AES, SHA, CRC, and RNG. Also features TrustZone® and Physical Unclonable Function (PUF).
- High-Performance Core: Arm Cortex-M33 core with a Floating Point Unit (FPU) and Memory Protection Unit (MPU).
- Advanced Analog Peripherals: 16-bit ADC with high sample rates, integrated temperature sensor, and a comparator with multiple input pins.
- Flexible Interfaces: Includes USB High Speed, Flexcomm interfaces (USART, SPI, I2C, I2S), and CAN FD.
- Debug Capabilities: Serial Wire Debug with eight breakpoints and four watchpoints, along with Serial Wire Output for enhanced debug capabilities.
- Power Management: Internal DC-DC converter, Power-On Reset (POR), and Brown-Out Detectors (BOD) for reliable power management.
Applications
The LPC5516JBD64E is versatile and can be used in a variety of applications, including:
- Industrial Automation: For control and monitoring systems in industrial environments.
- Internet of Things (IoT): For secure and efficient IoT devices requiring advanced cryptographic capabilities.
- Automotive Systems: For various automotive applications where robust security and reliability are crucial.
- Consumer Electronics: For devices requiring high-performance processing and advanced security features.
Q & A
- What is the core architecture of the LPC5516JBD64E?
The LPC5516JBD64E is based on the Arm Cortex-M33 core. - How much flash and SRAM memory does the LPC5516JBD64E have?
The LPC5516JBD64E has up to 256 KB of flash memory and up to 96 KB of SRAM. - What are the key security features of the LPC5516JBD64E?
The key security features include the CASPER Crypto co-processor, TrustZone®, AES, SHA, CRC, RNG, and PUF. - What types of interfaces does the LPC5516JBD64E support?
The LPC5516JBD64E supports USB High Speed, Flexcomm interfaces (USART, SPI, I2C, I2S), and CAN FD. - What is the operating temperature range of the LPC5516JBD64E?
The operating temperature range is -40°C to +105°C. - What package options are available for the LPC5516JBD64E?
The LPC5516JBD64E is available in the HTQFP64 package. - Does the LPC5516JBD64E support advanced debug capabilities?
Yes, it supports Serial Wire Debug with eight breakpoints and four watchpoints, along with Serial Wire Output. - What is the power supply range for the LPC5516JBD64E?
The power supply range is 1.8 V to 3.6 V. - Is the LPC5516JBD64E certified under any security standards?
Yes, it is certified under the EdgeLock® Assurance program and has been awarded Level 2 certifications by both the PSA Certified™ scheme and the GlobalPlatform Security Evaluation Standard for IoT Platforms (SESIP). - What are some typical applications for the LPC5516JBD64E?
Typical applications include industrial automation, IoT devices, automotive systems, and consumer electronics.
