Overview
The LPC5512JBD64E is a 32-bit microcontroller from NXP Semiconductors, part of the LPC5500 series. It is based on the Arm Cortex-M33 core, which provides a high-performance and power-efficient solution for various embedded applications. This microcontroller is designed to meet the demands of modern IoT, industrial, and consumer electronics with its advanced security features, robust peripherals, and flexible configuration options.
Key Specifications
| Specification | Details |
|---|---|
| Core | Arm Cortex-M33 |
| Frequency | Up to 150 MHz |
| Flash Memory | Up to 256 KB with flash accelerator |
| SRAM | Up to 96 KB |

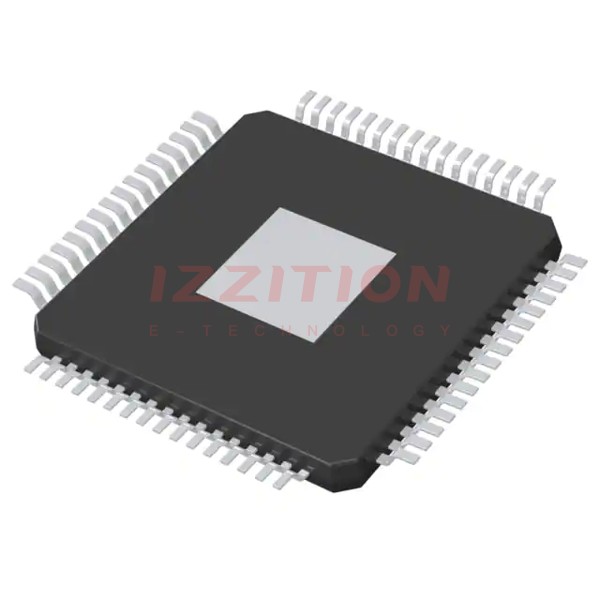

| Package | HTQFP64 |
| Operating Voltage | 1.8 V to 3.6 V |
| Operating Temperature | -40°C to +105°C |
| USB | USB 2.0 full speed and high speed host/device controller |
| ADC | 16-bit, up to 2.0 MSamples/sec, 10 single-ended or 5 differential channels |
| Security Features | CASPER Crypto co-processor, TrustZone, AES, SHA, CRC, RNG |
Key Features
- Arm Cortex-M33 Core: Provides high performance and power efficiency.
- Advanced Security: Includes CASPER Crypto co-processor, TrustZone, AES, SHA, CRC, and RNG for enhanced security.
- Peripheral Set: Features DMA controllers, CAN FD module, 16-bit ADC, comparator, temperature sensor, and multiple FlexComm interfaces (USART, SPI, I2C, I2S).
- Clock Generation: Internal Free Running Oscillator (FRO) with selectable frequencies and Power-On Reset (POR) and Brown-Out Detectors (BOD).
- Debug Capabilities: Serial Wire Debug with eight breakpoints and four watchpoints, and Serial Wire Output.
Applications
The LPC5512JBD64E is suitable for a wide range of applications, including:
- Internet of Things (IoT): For smart home devices, wearables, and other connected devices.
- Industrial Automation: For control systems, sensors, and actuators.
- Consumer Electronics: For devices such as smart appliances, audio equipment, and gaming consoles.
- Automotive Systems: For infotainment, driver assistance, and vehicle control systems.
Q & A
- What is the core architecture of the LPC5512JBD64E?
The LPC5512JBD64E is based on the Arm Cortex-M33 core. - What is the maximum operating frequency of the LPC5512JBD64E?
The maximum operating frequency is up to 150 MHz. - How much flash and SRAM memory does the LPC5512JBD64E have?
The LPC5512JBD64E has up to 256 KB of flash memory and up to 96 KB of SRAM. - What are the key security features of the LPC5512JBD64E?
The key security features include the CASPER Crypto co-processor, TrustZone, AES, SHA, CRC, and RNG. - What types of USB interfaces are supported by the LPC5512JBD64E?
The LPC5512JBD64E supports USB 2.0 full speed and high speed host/device controllers. - What is the operating temperature range of the LPC5512JBD64E?
The operating temperature range is -40°C to +105°C. - Does the LPC5512JBD64E support CAN FD?
Yes, the LPC5512JBD64E includes a CAN FD module with a dedicated DMA controller. - What is the resolution and sample rate of the ADC in the LPC5512JBD64E?
The ADC is 16-bit with a sample rate of up to 2.0 MSamples/sec. - Does the LPC5512JBD64E have any debug capabilities?
Yes, it supports Serial Wire Debug with eight breakpoints and four watchpoints, and Serial Wire Output. - What package options are available for the LPC5512JBD64E?
The LPC5512JBD64E is available in the HTQFP64 package.
