Overview

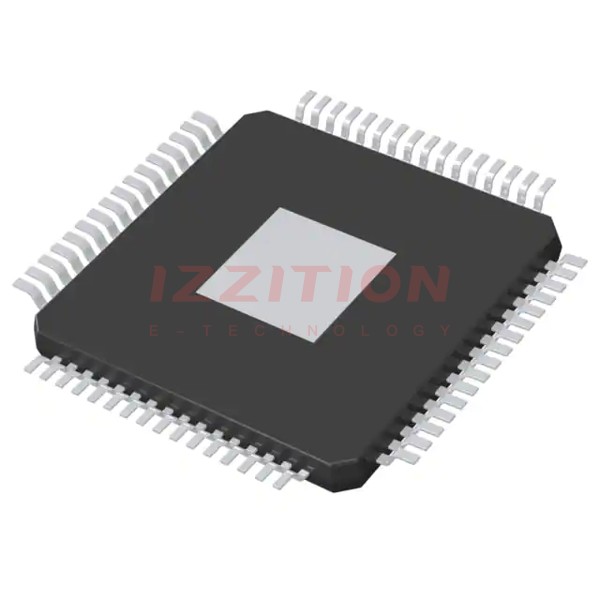

The LPC5506JBD64E is a 32-bit microcontroller from NXP USA Inc., part of the LPC550x family based on the ARM Cortex-M33 core. This microcontroller is designed for embedded applications, offering a balance of performance, security, and power efficiency. It is particularly suited for applications requiring advanced security features and low power consumption.
Key Specifications
| Parameter | Value |
|---|---|
| Core | ARM Cortex-M33 |
| Clock Speed | Up to 96 MHz |
| Flash Memory | 256 KB |
| SRAM | Up to 96 KB (16 KB on Code Bus, 64 KB on System Bus, and 16 KB on System Bus) |
| Package | 64-HTQFP (10x10 mm) |
| Operating Voltage | 1.8 V to 3.6 V |
| Operating Temperature | -40 °C to +105 °C |
| GPIO Pins | Up to 45 |
| Interfaces | Flexcomm (UART, SPI, I2C), CAN FD, DMA controllers |
Key Features
- Security Features: Includes CASPER Crypto engine, PRINCE module for real-time encryption and decryption, AES, SHA, CRC, and PUF (Physically Unclonable Function).
- Memory and Storage: Up to 256 KB on-chip flash program memory and up to 96 KB SRAM.
- Interfaces and Peripherals: Flexcomm interfaces (UART, SPI, I2C), CAN FD module, DMA controllers, 16-bit ADC, comparator, and temperature sensor.
- Power and Operating Conditions: Single power supply from 1.8 V to 3.6 V and an operating temperature range of -40 °C to +105 °C.
- Bootloader and Programming: On-chip ROM bootloader supports booting from on-chip flash, CRC32 image integrity checking, and secure firmware update using NXP Secure Boot file format.
Applications
The LPC5506JBD64E microcontroller is suitable for a variety of embedded applications, including but not limited to:
- Industrial Automation: For control and monitoring systems requiring advanced security and low power consumption.
- Internet of Things (IoT): For secure and efficient IoT devices.
- Automotive Systems: For applications needing robust security features and reliable performance.
- Medical Devices: For secure and low-power medical device applications.
Q & A
- What is the core architecture of the LPC5506JBD64E microcontroller?
The LPC5506JBD64E is based on the ARM Cortex-M33 core. - How much flash memory does the LPC5506JBD64E have?
The LPC5506JBD64E has up to 256 KB of on-chip flash program memory. - What are the key security features of the LPC5506JBD64E?
The key security features include the CASPER Crypto engine, PRINCE module, AES, SHA, CRC, and PUF. - What interfaces does the LPC5506JBD64E support?
The LPC5506JBD64E supports Flexcomm interfaces (UART, SPI, I2C), CAN FD module, and DMA controllers. - What is the operating voltage range of the LPC5506JBD64E?
The operating voltage range is from 1.8 V to 3.6 V. - What is the temperature range for the LPC5506JBD64E?
The operating temperature range is from -40 °C to +105 °C. - How many GPIO pins does the LPC5506JBD64E have?
The LPC5506JBD64E has up to 45 GPIO pins. - Does the LPC5506JBD64E support secure boot and firmware updates?
Yes, it supports secure boot and firmware updates using the NXP Secure Boot file format. - What package options are available for the LPC5506JBD64E?
The LPC5506JBD64E is available in a 64-HTQFP package. - What are some typical applications for the LPC5506JBD64E?
Typical applications include industrial automation, IoT devices, automotive systems, and medical devices.
