Overview
The LPC1113FBD48/302151 is a 32-bit microcontroller from NXP USA Inc., part of the LPC1100 family. This microcontroller is based on the ARM Cortex-M0 architecture, designed for low-cost and low-power applications. It operates at CPU frequencies of up to 50 MHz, making it suitable for a variety of embedded systems and IoT devices.
Key Specifications
| Architecture | ARM Cortex-M0 |
|---|---|
| CPU Speed | 50 MHz |
| Program Memory Size | 24 KB |
| RAM Memory Size | 8 KB |
| No. of Pins | 48 Pins |
| MCU Case Style | LQFP |
| No. of I/O's | 42 I/O's |
| Embedded Interface Type | I2C, SPI, UART |
| Supply Voltage Min | 1.8 V |
| Supply Voltage Max | 3.6 V |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Peripherals | ADC, PWM, Timer |
Key Features
- Low Power Consumption: Designed for low-power applications, making it ideal for battery-powered devices.
- High Performance: Operates at up to 50 MHz, providing sufficient processing power for various applications.
- Rich Peripherals: Includes ADC, PWM, and timers, enhancing the microcontroller's functionality.
- Multiple Interfaces: Supports I2C, SPI, and UART interfaces for versatile communication options.

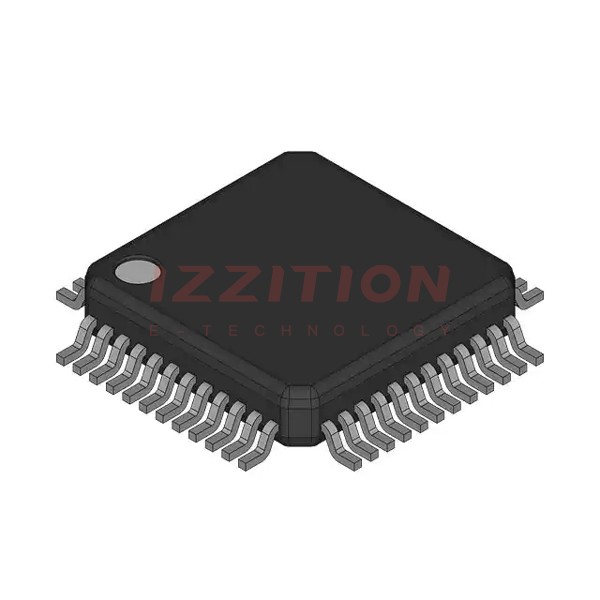

- Compact Package: Available in a 48-pin LQFP package, suitable for space-constrained designs.
Applications
- Industrial Automation: Used in control systems, sensors, and actuators due to its robust performance and low power consumption.
- IoT Devices: Suitable for IoT applications such as smart home devices, wearables, and other connected devices.
- Consumer Electronics: Found in various consumer electronics like remote controls, gaming devices, and other handheld devices.
- Medical Devices: Used in medical devices that require low power and high reliability.
- Automotive Systems: Can be used in automotive systems for control and monitoring functions.
Q & A
- What is the CPU architecture of the LPC1113FBD48/302151?
The CPU architecture is ARM Cortex-M0.
- What is the maximum CPU speed of the LPC1113FBD48/302151?
The maximum CPU speed is 50 MHz.
- How much program memory does the LPC1113FBD48/302151 have?
The program memory size is 24 KB.
- What is the RAM memory size of the LPC1113FBD48/302151?
The RAM memory size is 8 KB.
- What are the supported interfaces on the LPC1113FBD48/302151?
The supported interfaces include I2C, SPI, and UART.
- What is the operating temperature range of the LPC1113FBD48/302151?
The operating temperature range is from -40°C to 85°C.
- What is the package type of the LPC1113FBD48/302151?
The package type is 48-pin LQFP.
- What are some of the peripherals available on the LPC1113FBD48/302151?
The peripherals include ADC, PWM, and timers.
- Is the LPC1113FBD48/302151 suitable for low-power applications?
Yes, it is designed for low-power consumption, making it suitable for battery-powered devices.
- What are some common applications of the LPC1113FBD48/302151?
Common applications include industrial automation, IoT devices, consumer electronics, medical devices, and automotive systems.
