Overview
The LPC1113FBD48/303151 is a 32-bit microcontroller from NXP USA Inc., part of the LPC1100 series. This microcontroller is based on the ARM Cortex-M0 processor and is designed for low-power, high-performance applications. It features a simple instruction set with reduced code size, making it suitable for a variety of embedded systems.
The LPC1113FBD48/303151 is part of a family of microcontrollers that offer a range of flash and SRAM memory options, but this specific model comes with 24 KB of flash memory and 8 KB of SRAM. It operates at frequencies up to 50 MHz and supports multiple power modes to minimize power consumption.
Key Specifications
| Specification | Value |
|---|---|
| Architecture | ARM Cortex-M0 |
| CPU Speed | Up to 50 MHz |
| Program Memory Size | 24 KB |
| RAM Memory Size | 8 KB |
| No. of Pins | 48 Pins |
| MCU Case Style | LQFP |
| No. of I/O's | 42 I/O's |
| Embedded Interface Type | I2C, SPI, UART |
| Supply Voltage Min | 1.8 V |
| Supply Voltage Max | 3.6 V |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Peripherals | ADC, PWM, Timer |
Key Features
- ARM Cortex-M0 Processor: Runs at frequencies up to 50 MHz.
- Memory: 24 KB of flash memory and 8 KB of SRAM.
- Power Management: Integrated Power Management Unit (PMU) with Sleep, Deep-sleep, and Deep power-down modes.
- Peripherals: Includes ADC, PWM, timers, UART, SPI, and I2C interfaces.
- GPIO: Up to 42 General Purpose I/O (GPIO) pins with configurable pull-up/pull-down resistors.
- Clock Generation: 12 MHz internal RC oscillator, crystal oscillator, and programmable watchdog oscillator.
- Security and Identification: Unique device serial number for identification.
Applications
- Industrial Automation: Suitable for control systems, sensors, and actuators.
- Consumer Electronics: Used in smart home devices, wearables, and other portable electronics.
- Medical Devices: Applicable in medical diagnostic equipment and patient monitoring systems.
- Automotive Systems: Can be used in various automotive control units and sensors.
- Internet of Things (IoT): Ideal for IoT devices requiring low power consumption and high performance.
Q & A
- What is the CPU architecture of the LPC1113FBD48/303151?
The CPU architecture is ARM Cortex-M0.
- What is the maximum CPU speed of the LPC1113FBD48/303151?
The maximum CPU speed is up to 50 MHz.
- How much flash and SRAM memory does the LPC1113FBD48/303151 have?
The LPC1113FBD48/303151 has 24 KB of flash memory and 8 KB of SRAM.
- What are the supply voltage ranges for the LPC1113FBD48/303151?
The supply voltage ranges from 1.8 V to 3.6 V.
- What are the operating temperature ranges for the LPC1113FBD48/303151?
The operating temperature ranges from -40°C to 85°C.
- What peripherals are available on the LPC1113FBD48/303151?
The peripherals include ADC, PWM, timers, UART, SPI, and I2C interfaces.
- Does the LPC1113FBD48/303151 support power management features?
Yes, it has an integrated Power Management Unit (PMU) with Sleep, Deep-sleep, and Deep power-down modes.
- How many GPIO pins does the LPC1113FBD48/303151 have?
The LPC1113FBD48/303151 has up to 42 General Purpose I/O (GPIO) pins.

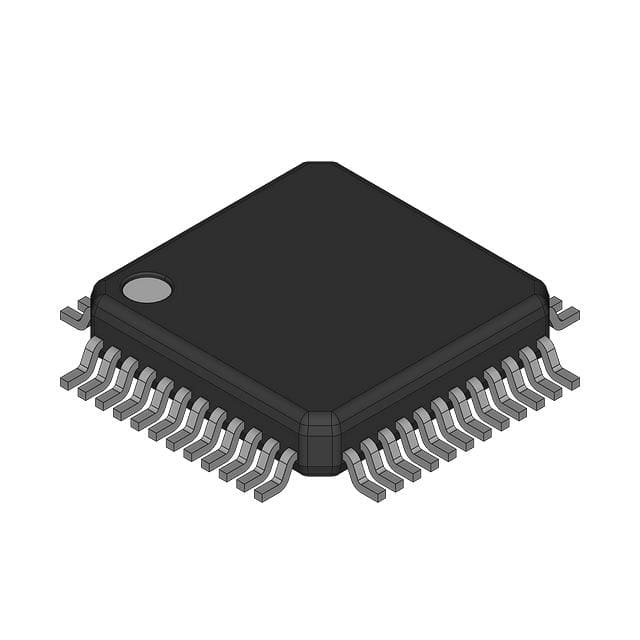

- What is the package type of the LPC1113FBD48/303151?
The package type is LQFP48.
- Does the LPC1113FBD48/303151 have a unique device serial number?
Yes, it has a unique device serial number for identification.
