Overview
The LPC1113FBD48/301151 is a microcontroller unit (MCU) from NXP USA Inc., part of the LPC1100 family. This MCU is designed to address a wide range of applications, particularly those requiring low power consumption and high performance. It is based on the ARM Cortex-M0 architecture, making it an ideal choice for replacing 8- and 16-bit microcontrollers. The LPC1113FBD48/301151 offers a balance of performance, power efficiency, and simplicity, making it suitable for various control and signal processing tasks.
Key Specifications
| Specification | Value |
|---|---|
| Architecture | ARM Cortex-M0 |
| CPU Speed | 50 MHz |
| Program Memory Size | 24 KB |
| RAM Memory Size | 8 KB |
| No. of Pins | 48 Pins |
| MCU Case Style | LQFP |
| No. of I/O's | 42 I/O's |
| Embedded Interface Type | I2C, SPI, UART |
| Supply Voltage Min | 1.8 V |
| Supply Voltage Max | 3.6 V |
| Packaging | Each |
| Product Range | LPC1100 ARM Cortex-M0 Microcontrollers |
| Automotive Qualification Standard | - |
| MSL | - |
| SVHC | No SVHC (17-Dec-2015) |
| Controller Family/Series | LPC1100L |
| MPU Core Size | 32-bit |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Peripherals | ADC, PWM, Timer |
Key Features
- Low Power Consumption: The LPC1113FBD48/301151 is designed for ultra-low power applications, making it suitable for battery-powered devices.
- High Performance: With a CPU speed of 50 MHz, this MCU offers high performance for various control and signal processing tasks.
- ARM Cortex-M0 Architecture: Based on the ARM Cortex-M0 core, it provides a simple instruction set with reduced code size, ideal for replacing 8- and 16-bit microcontrollers.
- Rich Peripherals: Includes ADC, PWM, and Timer peripherals, enhancing its capability for various applications.
- Multiple Communication Interfaces: Supports I2C, SPI, and UART interfaces, facilitating communication with other devices.
Applications
- Industrial Control Systems: Suitable for industrial automation, motor control, and other industrial applications requiring low power and high performance.
- Consumer Electronics: Ideal for use in consumer electronics such as home appliances, remote controls, and other portable devices.
- Automotive Systems: Although not specifically automotive qualified, it can be used in various automotive-related applications where low power and high reliability are crucial.
- Medical Devices: Can be used in medical devices that require low power consumption and reliable performance.
- IoT Devices: Suitable for Internet of Things (IoT) devices that need low power consumption and efficient processing capabilities.
Q & A
- What is the CPU architecture of the LPC1113FBD48/301151?
The LPC1113FBD48/301151 is based on the ARM Cortex-M0 architecture.
- What is the maximum CPU speed of the LPC1113FBD48/301151?
The maximum CPU speed is 50 MHz.
- How much program memory does the LPC1113FBD48/301151 have?
The LPC1113FBD48/301151 has 24 KB of program memory.
- What is the RAM memory size of the LPC1113FBD48/301151?
The RAM memory size is 8 KB.
- What type of packaging does the LPC1113FBD48/301151 use?

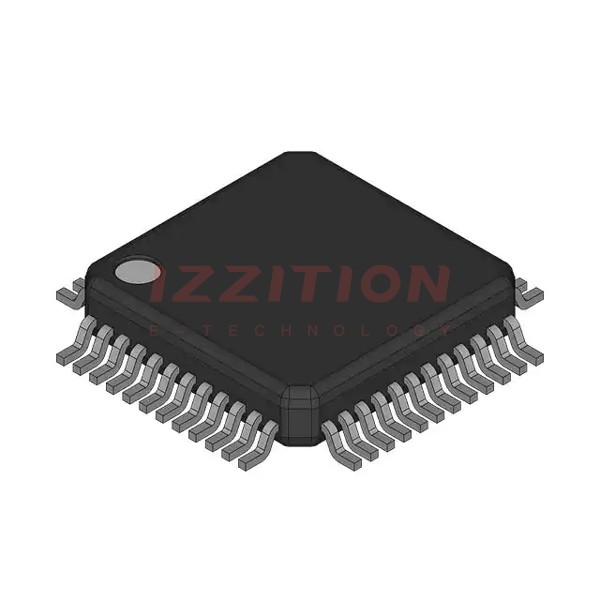

The MCU is packaged in a 48-pin LQFP (7x7 mm).
- What are the supply voltage ranges for the LPC1113FBD48/301151?
The supply voltage ranges from 1.8 V to 3.6 V.
- What peripherals are included in the LPC1113FBD48/301151?
The MCU includes ADC, PWM, and Timer peripherals.
- What communication interfaces does the LPC1113FBD48/301151 support?
The MCU supports I2C, SPI, and UART interfaces.
- What is the operating temperature range of the LPC1113FBD48/301151?
The operating temperature range is from -40°C to 85°C.
- Is the LPC1113FBD48/301151 RoHS compliant?
Yes, the LPC1113FBD48/301151 is RoHS compliant.
