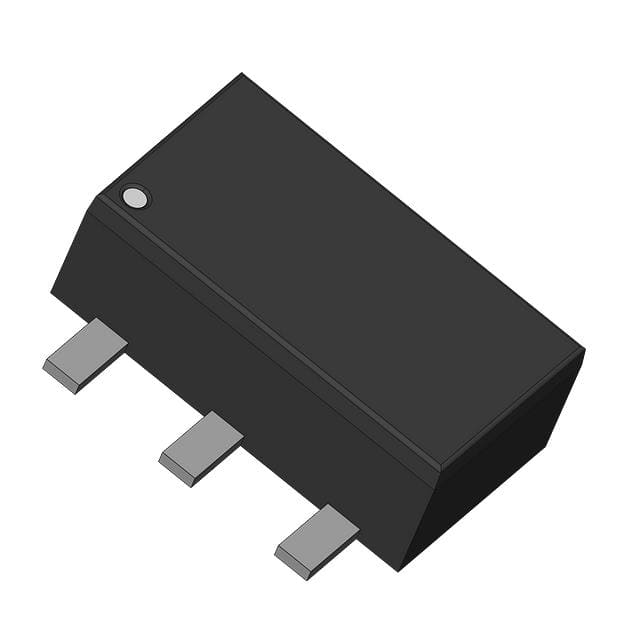

NXP USA Inc. BCX53-16/DG/B3115

Manufacturer No:
BCX53-16/DG/B3115
Manufacturer:
NXP USA Inc.
Package:
Bulk
Description:
SMALL SIGNAL BIPOLAR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BCX53-16/DG/B3115 is a high-performance PNP medium power bipolar transistor manufactured by NXP USA Inc. This transistor is designed for a wide range of applications requiring high current and power dissipation capabilities. It is part of the BCX53 series, known for its reliability and versatility in various electronic circuits.

Key Specifications

ParameterValue
Transistor PolarityPNP
Collector Emitter Voltage (V(br)ceo)-80V
Transition Frequency (ft)125MHz
Power Dissipation (Pd)500mW
DC Collector Current-1A
DC Current Gain (hFE)250hFE
Transistor Case StyleSOT-89
No. of Pins3 Pins
Operating Temperature Max150°C
Operating Temperature Min-65°C
MSLMSL 1 - Unlimited
SVHCNo SVHC (20-Jun-2016)

Key Features

  • High current capability up to 1 A
  • High power dissipation capability of 500 mW
  • Exposed heatsink for excellent thermal and electrical performance
  • Three current gain selections available
  • Compact SOT-89 package for space-efficient designs

Applications

The BCX53-16/DG/B3115 is suitable for a variety of applications, including:

  • General-purpose switching and amplification
  • Automotive systems requiring high reliability and performance
  • Industrial control circuits
  • Consumer electronics where high current and power handling are necessary

Q & A

  1. What is the transistor polarity of the BCX53-16/DG/B3115?
    The transistor polarity is PNP.
  2. What is the maximum collector emitter voltage of the BCX53-16/DG/B3115?
    The maximum collector emitter voltage is -80V.
  3. What is the transition frequency of the BCX53-16/DG/B3115?
    The transition frequency is 125MHz.
  4. What is the power dissipation capability of the BCX53-16/DG/B3115?
    The power dissipation capability is 500mW.
  5. What is the maximum DC collector current of the BCX53-16/DG/B3115?
    The maximum DC collector current is -1A.
  6. What is the DC current gain (hFE) of the BCX53-16/DG/B3115?
    The DC current gain (hFE) is 250hFE.
  7. What is the package type of the BCX53-16/DG/B3115?
    The package type is SOT-89.
  8. How many pins does the BCX53-16/DG/B3115 have?
    The transistor has 3 pins.
  9. What are the operating temperature ranges for the BCX53-16/DG/B3115?
    The operating temperature ranges from -65°C to 150°C.
  10. Is the BCX53-16/DG/B3115 compliant with MSL standards?
    Yes, it is compliant with MSL 1 - Unlimited.

Product Attributes

Transistor Type:-
Current - Collector (Ic) (Max):-
Voltage - Collector Emitter Breakdown (Max):-
Vce Saturation (Max) @ Ib, Ic:-
Current - Collector Cutoff (Max):-
DC Current Gain (hFE) (Min) @ Ic, Vce:-
Power - Max:-
Frequency - Transition:-
Operating Temperature:-
Mounting Type:-
Package / Case:-
Supplier Device Package:-
0 Remaining View Similar

In Stock

$0.08
3,781
