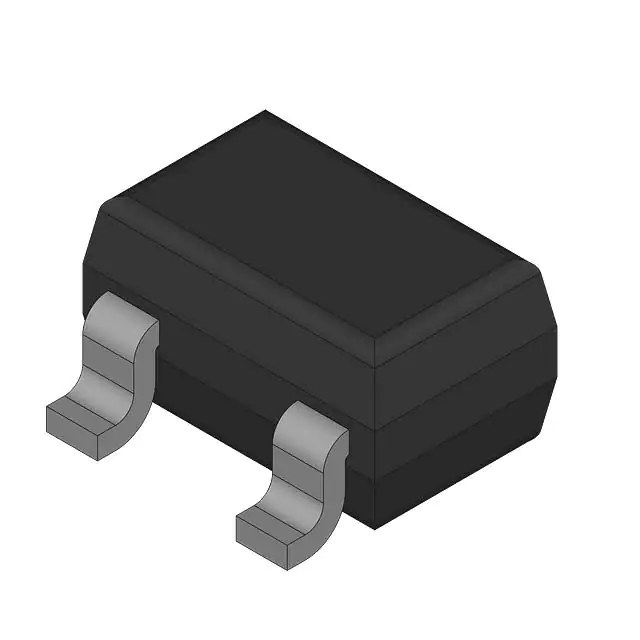

NXP USA Inc. BC859CW/ZL115

Manufacturer No:
BC859CW/ZL115
Manufacturer:
NXP USA Inc.
Package:
Bulk
Description:
SMALL SIGNAL BIPOLAR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BC859CW/ZL115 is a small signal bipolar transistor manufactured by NXP USA Inc. This PNP transistor is designed for a variety of applications requiring low power consumption and high reliability. It is part of the BC859 series, known for its robust performance in automotive, industrial, and general-purpose electronics.

Key Specifications

ParameterValue
Transistor PolarityPNP
ConfigurationSingle
Maximum DC Collector Current (Ic)100 mA
Collector-Emitter Voltage (VCEO) Max30 V
Operating Temperature Range-65°C to 150°C
Frequency - Transition100 MHz
DC Current Gain (hFE) Min @ Ic, Vce420 @ 2mA, 5V
Package / CaseSC-70, SOT-323
Mounting TypeSurface Mount
Power Dissipation0.2 W

Key Features

  • Low power consumption, making it suitable for battery-constrained devices.
  • High DC current gain (hFE) of 420 @ 2mA, 5V.
  • Wide operating temperature range from -65°C to 150°C.
  • High collector-emitter voltage (VCEO) of 30 V.
  • Surface mount package (SC-70, SOT-323) for easy integration.
  • Lead-free and RoHS compliant.

Applications

The BC859CW/ZL115 transistor is versatile and can be used in various applications, including:

  • Automotive electronics for signal amplification and switching.
  • Industrial automation for control and sensing circuits.
  • General-purpose electronics such as audio amplifiers and switching circuits.
  • Low-power consumer electronics where reliability and efficiency are crucial.

Q & A

  1. What is the maximum collector current of the BC859CW/ZL115 transistor?
    The maximum DC collector current is 100 mA.
  2. What is the collector-emitter voltage breakdown of the BC859CW/ZL115 transistor?
    The collector-emitter voltage breakdown is 30 V.
  3. What is the operating temperature range of the BC859CW/ZL115 transistor?
    The operating temperature range is from -65°C to 150°C.
  4. Is the BC859CW/ZL115 transistor RoHS compliant?
    Yes, the BC859CW/ZL115 transistor is lead-free and RoHS compliant.
  5. What is the package type of the BC859CW/ZL115 transistor?
    The package type is SC-70, SOT-323.
  6. What is the DC current gain (hFE) of the BC859CW/ZL115 transistor?
    The DC current gain (hFE) is 420 @ 2mA, 5V.
  7. What are some common applications of the BC859CW/ZL115 transistor?
    Common applications include automotive electronics, industrial automation, general-purpose electronics, and low-power consumer electronics.
  8. What is the power dissipation of the BC859CW/ZL115 transistor?
    The power dissipation is 0.2 W.
  9. Is the BC859CW/ZL115 transistor suitable for high-frequency applications?
    Yes, it has a transition frequency of 100 MHz, making it suitable for high-frequency applications.
  10. How do I ensure the quality of the BC859CW/ZL115 transistor?
    Ensure you purchase from authorized distributors and check for the RoHS compliance and other specifications.
