NXP USA Inc. BC847CW/ZL115

Manufacturer No:
BC847CW/ZL115
Manufacturer:
NXP USA Inc.
Package:
Bulk
Description:
SMALL SIGNAL BIPOLAR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

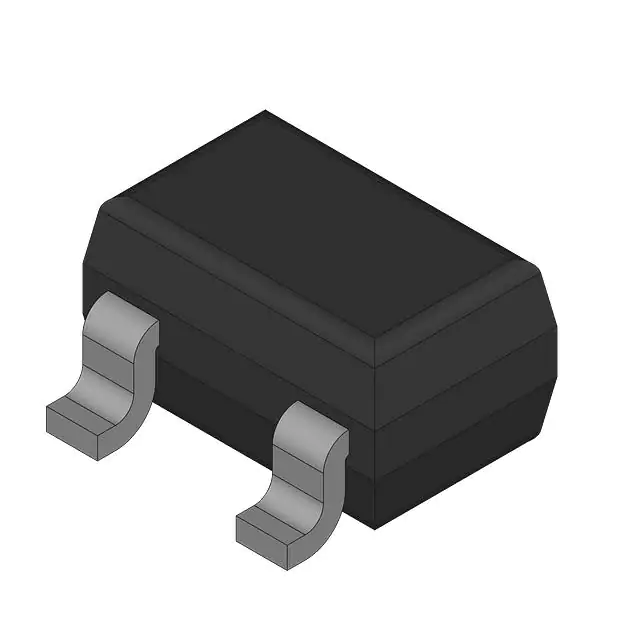

The BC847CW/ZL115 is an NPN general-purpose transistor manufactured by Nexperia (formerly NXP USA Inc.). It is packaged in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package, making it suitable for a wide range of applications where space is limited. This transistor is part of Nexperia’s extensive portfolio of discrete semiconductor products, known for their high performance and reliability.

Key Specifications

Type number Package VCEO [max] (V) IC [max] (mA) hFE [min] hFE [max] TJ [max] (°C) fT [min] (MHz) Ptot (mW) Automotive qualified
BC847CW SOT323 (SC-70) 45 100 420 800 150 100 200 No

Key Features

  • NPN general-purpose transistor in SOT323 (SC-70) package.
  • Collector-emitter voltage (VCEO) up to 45 V.
  • Collector current (IC) up to 100 mA.
  • Current gain (hFE) range from 420 to 800.
  • Maximum junction temperature (TJ) of 150°C.
  • Transition frequency (fT) of 100 MHz.
  • Total power dissipation (Ptot) of 200 mW.
  • ROHS3 compliant.

Applications

The BC847CW/ZL115 transistor is versatile and can be used in various applications across different industries, including:

  • General-purpose switching and amplification.
  • Automotive systems (though not automotive qualified).
  • Industrial control systems.
  • Consumer electronics.
  • Mobile and wearable devices.
  • Power and computing applications.

Q & A

  1. What is the package type of the BC847CW/ZL115 transistor?

    The BC847CW/ZL115 transistor is packaged in a SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package.

  2. What is the maximum collector-emitter voltage (VCEO) of the BC847CW/ZL115?

    The maximum collector-emitter voltage (VCEO) is 45 V.

  3. What is the maximum collector current (IC) of the BC847CW/ZL115?

    The maximum collector current (IC) is 100 mA.

  4. What is the current gain (hFE) range of the BC847CW/ZL115?

    The current gain (hFE) range is from 420 to 800.

  5. What is the maximum junction temperature (TJ) of the BC847CW/ZL115?

    The maximum junction temperature (TJ) is 150°C.

  6. What is the transition frequency (fT) of the BC847CW/ZL115?

    The transition frequency (fT) is 100 MHz.

  7. Is the BC847CW/ZL115 ROHS compliant?
  8. What are some common applications of the BC847CW/ZL115 transistor?

    The BC847CW/ZL115 is used in general-purpose switching and amplification, automotive systems, industrial control systems, consumer electronics, mobile and wearable devices, and power and computing applications.

  9. Where can I find the datasheet for the BC847CW/ZL115 transistor?

    The datasheet can be found on the official Nexperia website or through distributors like Digi-Key, Mouser, and TTI Inc.

  10. How do I order samples of the BC847CW/ZL115 transistor?

    Samples can be ordered via Nexperia’s sales organization or through their network of global and regional distributors.
