BC847BW/MI115
  • Share:

NXP USA Inc. BC847BW/MI115

Manufacturer No:
BC847BW/MI115
Manufacturer:
NXP USA Inc.
Package:
Bulk
Description:

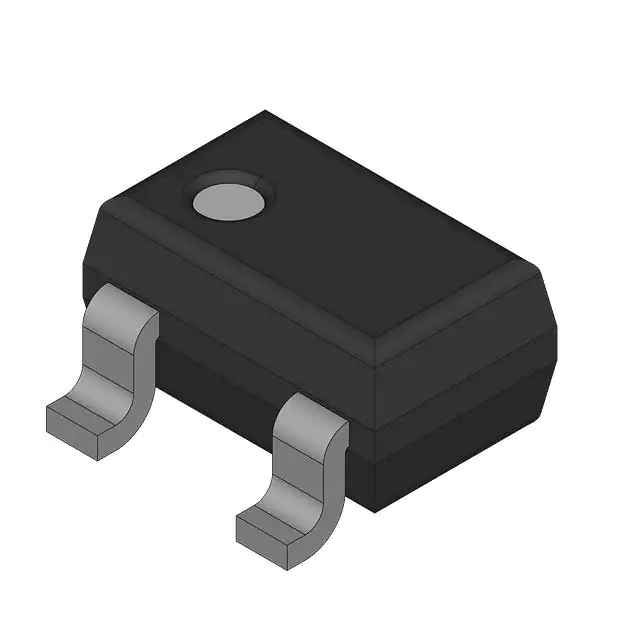

SMALL SIGNAL BIPOLAR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BC847BW/MI115 is a 45 V, 100 mA NPN general-purpose transistor manufactured by NXP USA Inc. This transistor is packaged in a small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package, making it ideal for space-constrained applications. It is part of a family of transistors that offer different gain selections, ensuring versatility in various electronic designs.

Key Specifications

Parameter Value Unit
Package SOT323 (SC-70) -
Channel Type NPN -
Collector-Emitter Voltage (VCEO) 45 V
Continuous Collector Current (IC) 100 mA
Peak Collector Current (ICM) 200 mA
DC Current Gain (hFE) 200 - 450 -
Emitter-Base Breakdown Voltage (VEB0) 6 V
Power Dissipation (PD) 200 mW
Thermal Resistance, Junction to Ambient (RθJA) 625 °C/W
Operating and Storage Temperature Range -65 to +150 °C

Key Features

  • Ideally suited for automatic insertion.
  • Complementary PNP types: BC857W.
  • Totally lead-free and fully RoHS compliant.
  • Halogen and antimony free, making it a 'green' device.
  • Suitable for switching and AF amplifier applications.
  • Small SOT323 (SC-70) package, enhancing space efficiency.
  • High DC current gain with a range of 200 to 450.

Applications

The BC847BW/MI115 transistor is versatile and can be used in a variety of applications, including:

  • Switching circuits.
  • Audio Frequency (AF) amplifiers.
  • Automotive applications requiring specific change control and qualified to AEC-Q100/101/104/200 standards.
  • General-purpose electronic designs in consumer, mobile, and industrial sectors.

Q & A

  1. What is the package type of the BC847BW/MI115 transistor?

    The BC847BW/MI115 transistor is packaged in a SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package.

  2. What is the maximum collector-emitter voltage (VCEO) of the BC847BW/MI115 transistor?

    The maximum collector-emitter voltage (VCEO) is 45 V.

  3. What is the continuous collector current (IC) of the BC847BW/MI115 transistor?

    The continuous collector current (IC) is 100 mA.

  4. What is the DC current gain (hFE) range of the BC847BW/MI115 transistor?

    The DC current gain (hFE) range is from 200 to 450.

  5. Is the BC847BW/MI115 transistor RoHS compliant?

    Yes, the BC847BW/MI115 transistor is totally lead-free and fully RoHS compliant.

  6. What are the operating and storage temperature ranges for the BC847BW/MI115 transistor?

    The operating and storage temperature ranges are from -65 to +150 °C.

  7. Can the BC847BW/MI115 transistor be used in automotive applications?

    Yes, it is suitable for automotive applications requiring specific change control and is qualified to AEC-Q100/101/104/200 standards.

  8. What are the complementary PNP types for the BC847BW/MI115 transistor?

    The complementary PNP types are BC857W.

  9. Is the BC847BW/MI115 transistor suitable for automatic insertion?

    Yes, it is ideally suited for automatic insertion.

  10. What is the thermal resistance, junction to ambient (RθJA), of the BC847BW/MI115 transistor?

    The thermal resistance, junction to ambient (RθJA), is 625 °C/W.

Product Attributes

Transistor Type:-
Current - Collector (Ic) (Max):-
Voltage - Collector Emitter Breakdown (Max):-
Vce Saturation (Max) @ Ib, Ic:-
Current - Collector Cutoff (Max):-
DC Current Gain (hFE) (Min) @ Ic, Vce:-
Power - Max:-
Frequency - Transition:-
Operating Temperature:-
Mounting Type:-
Package / Case:-
Supplier Device Package:-
0 Remaining View Similar

In Stock

$0.02
28,541

Please send RFQ , we will respond immediately.
