NXP USA Inc. BC807-40W/MI135

Manufacturer No:
BC807-40W/MI135
Manufacturer:
NXP USA Inc.
Package:
Bulk
Description:
SMALL SIGNAL BIPOLAR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

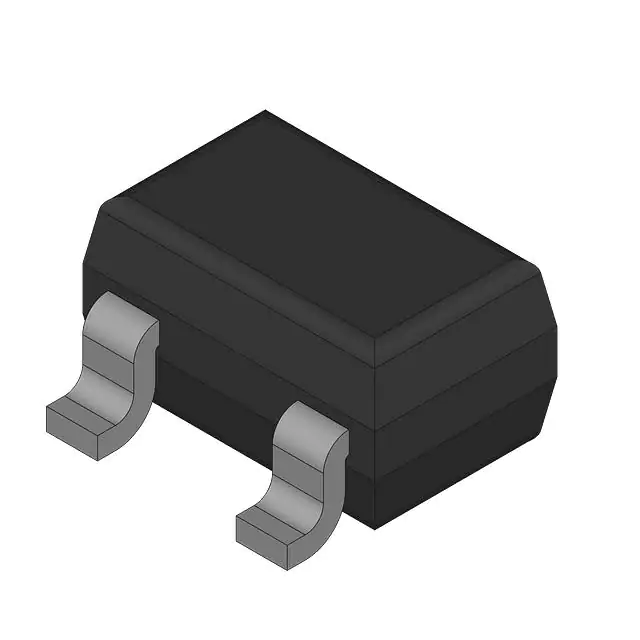

The BC807-40W/MI135 is a PNP general-purpose transistor manufactured by NXP USA Inc., now part of Nexperia. This transistor is designed in a compact SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package, making it ideal for applications where space is limited. It is part of the BC807 series, which offers high current and multiple current gain selections, making it versatile for various electronic circuits.

Key Specifications

Type numberPackage versionPackage nameSize (mm)PolarityPtot (mW)VCEO [max] (V)IC [max] (mA)hFE [min]hFE [max]TJ [max] (°C)fT [min] (MHz)Automotive qualified
BC807-40WSOT323SC-702 x 1.25 x 0.95PNP200-45-50025060015080N

Key Features

  • Compact Size: The BC807-40W is packaged in a small SOT323 (SC-70) package, making it suitable for space-constrained designs.
  • High Current Capability: The transistor can handle a maximum collector current of 500 mA.
  • Advanced Signal Processing: It ensures safe operating conditions and multi-functional design, making it versatile for various applications.
  • High Current Gain: Available with multiple current gain selections (hFE [min] = 250, hFE [max] = 600).

Applications

The BC807-40W transistor is suitable for a wide range of applications across various industries, including:

  • Automotive: For use in automotive electronic systems due to its robust and reliable performance.
  • Industrial: Ideal for industrial control systems, power supplies, and other industrial electronics.
  • Consumer Electronics: Used in mobile devices, wearables, and other consumer electronic products.
  • General Electronics: Suitable for general-purpose electronic circuits requiring a reliable and efficient PNP transistor.

Q & A

  1. What is the package type of the BC807-40W transistor?
    The BC807-40W transistor is packaged in a SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package.
  2. What is the maximum collector current of the BC807-40W transistor?
    The maximum collector current (IC [max]) is 500 mA.
  3. What is the maximum collector-emitter voltage (VCEO) of the BC807-40W transistor?
    The maximum collector-emitter voltage (VCEO [max]) is -45 V.
  4. What are the current gain (hFE) values for the BC807-40W transistor?
    The current gain (hFE) ranges from 250 (minimum) to 600 (maximum).
  5. What is the maximum junction temperature (TJ) for the BC807-40W transistor?
    The maximum junction temperature (TJ [max]) is 150°C.
  6. Is the BC807-40W transistor automotive qualified?
    No, the BC807-40W transistor is not automotive qualified.
  7. What is the transition frequency (fT) of the BC807-40W transistor?
    The minimum transition frequency (fT [min]) is 80 MHz.
  8. How many pins does the SOT323 package of the BC807-40W transistor have?
    The SOT323 package has 3 pins.
  9. What is the power dissipation (Ptot) of the BC807-40W transistor?
    The power dissipation (Ptot) is 200 mW.
  10. Can the BC807-40W transistor be used in high-frequency applications?
    Yes, with a transition frequency of 80 MHz, it can be used in high-frequency applications.
