BC807-16/6215
  • Share:

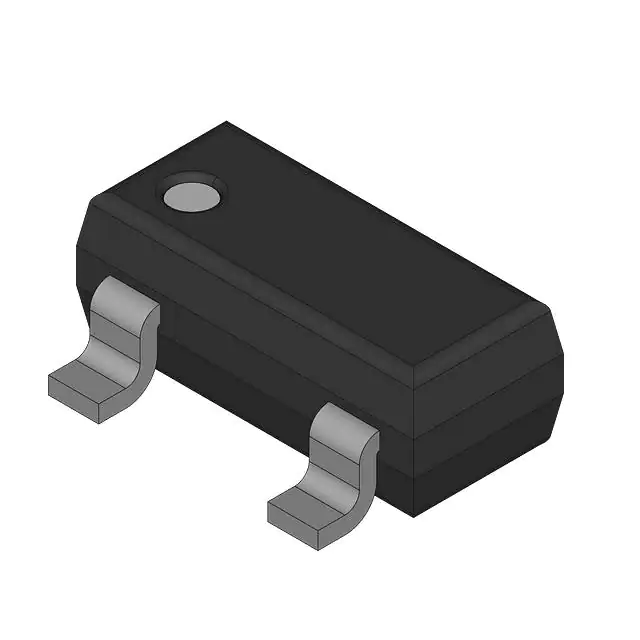

NXP USA Inc. BC807-16/6215

Manufacturer No:
BC807-16/6215
Manufacturer:
NXP USA Inc.
Package:
Bulk
Description:
SMALL SIGNAL BIPOLAR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BC807-16/6215 is a small signal bipolar transistor manufactured by NXP USA Inc., now known as Nexperia. This transistor is part of the BC807 series, which is widely used in general-purpose applications. It is a PNP transistor, known for its reliability and performance in various electronic circuits.

Key Specifications

ParameterValue
Transistor TypePNP Bipolar Junction Transistor (BJT)
Collector Current (Ic)0.5 A
Collector-Emitter Voltage (Vce)45 V
Base-Emitter Voltage (Vbe)0.7 V
Power Dissipation (Pd)250 mW
Operating Temperature Range-55°C to 150°C
Package TypeSOT-23 (TO-236AB)
RoHS StatusCompliant

Key Features

  • High current gain (beta) for reliable operation.
  • Low noise figure, making it suitable for audio and signal processing applications.
  • Compact SOT-23 package, ideal for space-constrained designs.
  • Wide operating temperature range, enhancing its versatility in various environments.
  • RoHS compliant, ensuring environmental sustainability.

Applications

The BC807-16/6215 is versatile and can be used in a variety of applications, including:

  • General-purpose switching and amplification.
  • Audio circuits and amplifiers.
  • Signal processing and conditioning.
  • Automotive and industrial control systems.
  • Consumer electronics such as TVs, radios, and other household appliances.

Q & A

  1. What is the collector current rating of the BC807-16/6215 transistor?
    The collector current rating is 0.5 A.
  2. What is the maximum collector-emitter voltage for this transistor?
    The maximum collector-emitter voltage is 45 V.
  3. What package type does the BC807-16/6215 come in?
    The transistor comes in a SOT-23 (TO-236AB) package.
  4. Is the BC807-16/6215 RoHS compliant?
    Yes, the BC807-16/6215 is RoHS compliant.
  5. What is the operating temperature range for this transistor?
    The operating temperature range is -55°C to 150°C.
  6. What are some common applications for the BC807-16/6215?
    Common applications include general-purpose switching and amplification, audio circuits, signal processing, automotive and industrial control systems, and consumer electronics.
  7. What is the power dissipation of the BC807-16/6215?
    The power dissipation is 250 mW.
  8. Is the BC807-16/6215 suitable for high-frequency applications?
    While it can handle some high-frequency applications, it is generally used for low to medium frequency operations due to its characteristics.
  9. Can the BC807-16/6215 be used in automotive applications?
    Yes, it can be used in automotive applications due to its robust specifications and wide operating temperature range.
  10. Where can I find the datasheet for the BC807-16/6215?
    The datasheet can be found on the official Nexperia website or through authorized distributors like Digi-Key, Mouser, and others.

Product Attributes

Transistor Type:-
Current - Collector (Ic) (Max):-
Voltage - Collector Emitter Breakdown (Max):-
Vce Saturation (Max) @ Ib, Ic:-
Current - Collector Cutoff (Max):-
DC Current Gain (hFE) (Min) @ Ic, Vce:-
Power - Max:-
Frequency - Transition:-
Operating Temperature:-
Mounting Type:-
Package / Case:-
Supplier Device Package:-
0 Remaining View Similar

In Stock

$0.02
12,281

Please send RFQ , we will respond immediately.
