Overview

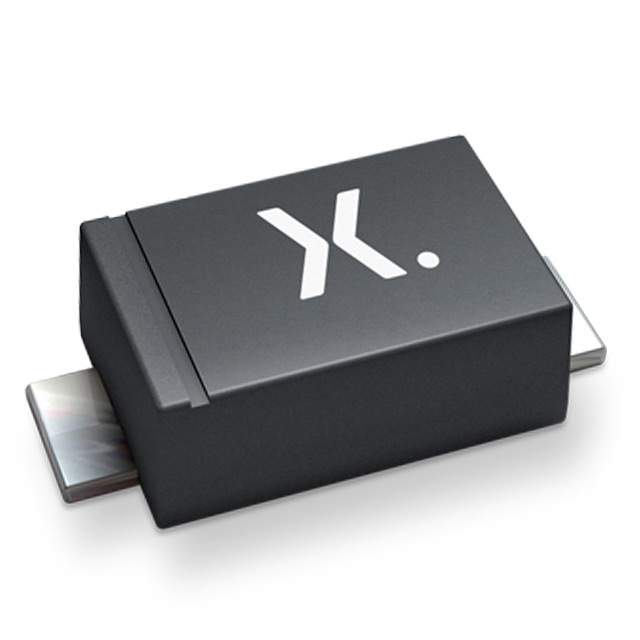

The PTVS6V0S1UR/8X is a high-performance Transient Voltage Suppressor (TVS) diode manufactured by Nexperia USA Inc. This component is designed to provide robust protection against voltage transients and electrostatic discharges (ESD) in various electronic systems. It is part of Nexperia's automotive-grade TVS diode series, ensuring reliability and durability in demanding environments.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Nexperia USA Inc. |
| Package | SOD-123W |
| Description | 6V Clamp, 38.8A Ipp TVS Diode, Surface Mount |
| Voltage - Reverse Standoff (Typ) | 6V (Max) |
| Voltage - Breakdown (Min) | 6.67V |
| Voltage - Clamping (Max) @ Ipp | 10.3V |
| Current - Peak Pulse (10/1000µs) | 38.8A |
| Power - Peak Pulse | 400W |
| Operating Temperature | -55°C ~ 150°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Surface Mount |
Key Features
- High peak pulse current rating of 38.8A (10/1000µs)
- Peak pulse power rating of 400W
- Low clamping voltage of 10.3V
- AEC-Q101 qualified for automotive applications
- Wide operating temperature range: -55°C to 150°C
- Surface mount package (SOD-123W) for easy integration
Applications
The PTVS6V0S1UR/8X TVS diode is suitable for a variety of applications requiring robust transient voltage protection, including:
- Automotive systems (e.g., infotainment, navigation, and safety systems)
- Industrial control and automation
- Telecommunications and networking equipment
- Consumer electronics (e.g., smartphones, tablets, and laptops)
- Medical devices and equipment
Q & A
- What is the primary function of the PTVS6V0S1UR/8X TVS diode?
The primary function is to protect electronic circuits from voltage transients and electrostatic discharges (ESD). - What is the peak pulse current rating of the PTVS6V0S1UR/8X?
The peak pulse current rating is 38.8A (10/1000µs). - What is the clamping voltage of the PTVS6V0S1UR/8X?
The clamping voltage is 10.3V. - What is the operating temperature range of the PTVS6V0S1UR/8X?
The operating temperature range is -55°C to 150°C. - Is the PTVS6V0S1UR/8X qualified for automotive use?
Yes, it is AEC-Q101 qualified for automotive applications. - What package type does the PTVS6V0S1UR/8X use?
The package type is SOD-123W. - What is the peak pulse power rating of the PTVS6V0S1UR/8X?
The peak pulse power rating is 400W. - Is the PTVS6V0S1UR/8X suitable for surface mounting?
Yes, it is designed for surface mount applications. - What are some common applications for the PTVS6V0S1UR/8X?
Common applications include automotive systems, industrial control, telecommunications, consumer electronics, and medical devices. - What is the reverse standoff voltage of the PTVS6V0S1UR/8X?
The reverse standoff voltage is 6V (Max).
