Overview

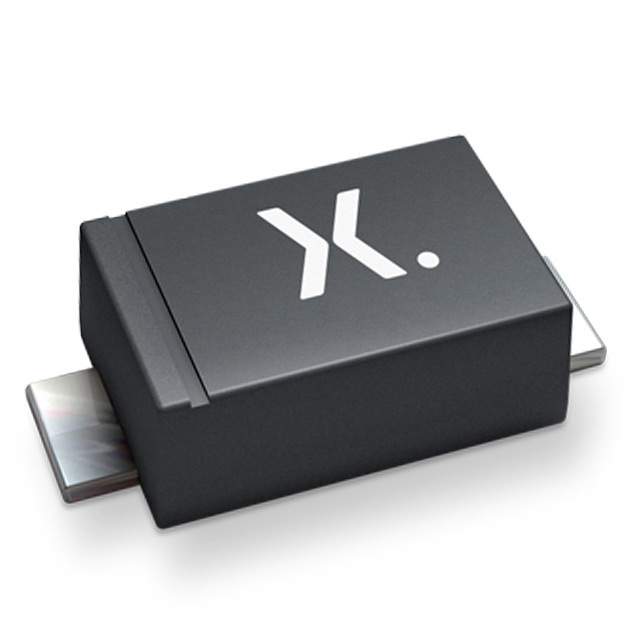

The PTVS5V0S1UR/8X is a Transient Voltage Suppressor (TVS) device manufactured by Nexperia USA Inc. This component is designed to provide protection against voltage spikes and surges in electronic circuits. It is part of the PTVSxS1UR series, which offers a range of voltage protection options for various applications.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Type Number | PTVS5V0S1UR/8X | - |
| Package | SOD123W (SOD2) | - |
| VRWM (V) | 5 | V |
| Configuration | Unidirectional | - |
| Number of Lines | 1 | - |
| VBR [min] (V) | 6.4 | V |
| VBR [max] (V) | 7 | V |
| VCL @ IPPM 10/1000 µs [max] (V) | 9.2 | V |
| IPPM @10/1000 µs [max] (A) | 43.5 | A |
| IRM [max] (µA) | 400 | µA |
| Tj [max] (°C) | 150 | °C |
Key Features
- Transient Voltage Suppression: Protects against voltage spikes and surges, ensuring the stability and reliability of electronic circuits.
- Low Capacitance: Suitable for high-speed interfaces, minimizing signal distortion and ensuring high data integrity.
- Unidirectional Configuration: Provides protection in one direction, making it ideal for applications where polarity is critical.
- Compact SOD123W Package: Small footprint, making it suitable for space-constrained designs.
- High Temperature Rating: Maximum junction temperature of 150°C, suitable for a wide range of environmental conditions.
Applications
- Automotive Systems: Protects sensitive electronics in vehicles from voltage transients and surges.
- Industrial Control Systems: Ensures the reliability of industrial control circuits by protecting against voltage spikes.
- Consumer Electronics: Used in various consumer devices to protect against power surges and voltage transients.
- High-Speed Interfaces: Protects high-speed data lines and interfaces from voltage transients, ensuring data integrity.
Q & A
- What is the primary function of the PTVS5V0S1UR/8X?
The primary function is to protect electronic circuits from transient voltage spikes and surges.
- What package type does the PTVS5V0S1UR/8X come in?
The component is packaged in a SOD123W (SOD2) package.
- What is the maximum working voltage (VRWM) of the PTVS5V0S1UR/8X?
The maximum working voltage is 5 V.
- What is the minimum breakdown voltage (VBR) of the PTVS5V0S1UR/8X?
The minimum breakdown voltage is 6.4 V.
- What is the maximum clamping voltage (VCL) at IPPM 10/1000 µs?
The maximum clamping voltage is 9.2 V.
- What is the maximum peak pulse current (IPPM) rating?
The maximum peak pulse current rating is 43.5 A.
- What is the maximum junction temperature (Tj) of the PTVS5V0S1UR/8X?
The maximum junction temperature is 150°C.
- In what types of applications is the PTVS5V0S1UR/8X commonly used?
It is commonly used in automotive, industrial, and consumer electronics, as well as in high-speed interfaces.
- Why is the PTVS5V0S1UR/8X suitable for high-speed interfaces?
It is suitable due to its low capacitance, which minimizes signal distortion.
- Is the PTVS5V0S1UR/8X environmentally friendly?
Yes, it has an indefinite environmental friendly use period (EFUP) and is compliant with REACH regulations.
