Overview

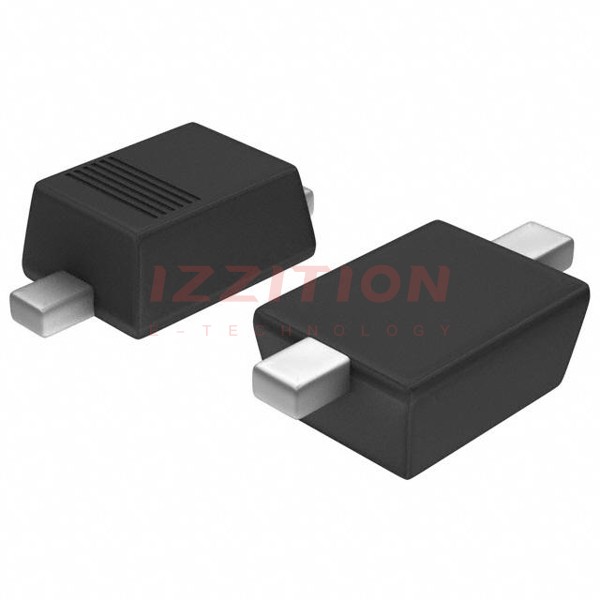

The PMEG3005EJ/ZLX is a Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier produced by Nexperia USA Inc. Although this component is currently obsolete and no longer manufactured, it was designed to offer high efficiency and reliability in various electronic applications. The device features an integrated guard ring for stress protection, enhancing its durability and performance.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage (VF) | Very low, typically 0.36 V at 0.5 A |
| Maximum Reverse Voltage (VRRM) | 30 V |
| Maximum Average Forward Current (IF(AV)) | 0.5 A |
| Maximum Peak Forward Current (IF(SM)) | 5 A |
| Package Type | TO236AB (SC90) |
| Operating Temperature Range | -55°C to +150°C |
| RoHS Compliance | Yes |
Key Features
- Very low forward voltage drop (VF) for high efficiency.
- Integrated guard ring for stress protection.
- High surge current capability.
- Low leakage current.
- Small and compact TO236AB (SC90) package.
Applications
The PMEG3005EJ/ZLX is suitable for a variety of applications, including:
- Power supplies and DC-DC converters.
- Switch-mode power supplies.
- High-frequency switching applications.
- Automotive and industrial power systems.
Q & A
- What is the maximum reverse voltage of the PMEG3005EJ/ZLX?
The maximum reverse voltage (VRRM) is 30 V. - What is the typical forward voltage drop of the PMEG3005EJ/ZLX?
The typical forward voltage drop (VF) is 0.36 V at 0.5 A. - What is the maximum average forward current of the PMEG3005EJ/ZLX?
The maximum average forward current (IF(AV)) is 0.5 A. - Is the PMEG3005EJ/ZLX RoHS compliant?
Yes, the PMEG3005EJ/ZLX is RoHS compliant. - What is the operating temperature range of the PMEG3005EJ/ZLX?
The operating temperature range is -55°C to +150°C. - What type of package does the PMEG3005EJ/ZLX come in?
The PMEG3005EJ/ZLX comes in a TO236AB (SC90) package. - Why is the PMEG3005EJ/ZLX no longer available?
The PMEG3005EJ/ZLX is currently obsolete and no longer manufactured. - What are some common applications for the PMEG3005EJ/ZLX?
Common applications include power supplies, DC-DC converters, switch-mode power supplies, and automotive and industrial power systems. - Does the PMEG3005EJ/ZLX have any integrated protection features?
Yes, it has an integrated guard ring for stress protection. - What is the maximum peak forward current of the PMEG3005EJ/ZLX?
The maximum peak forward current (IF(SM)) is 5 A.
