Overview
The PMEG2005AEA,115 is a high-performance Schottky barrier diode produced by Nexperia USA Inc. This component is optimized for high power density and is designed for surface mount applications. It features low forward voltage drop and fast switching speeds, making it ideal for various demanding applications. The diode is part of the PMEG2005 series and is known for its high efficiency, low power consumption, and robust protection features such as inverse polarity protection and voltage clamping.
Key Specifications
| Attribute | Description |
|---|---|
| Manufacturer | Nexperia USA Inc. |
| Part Number | PMEG2005AEA,115 |

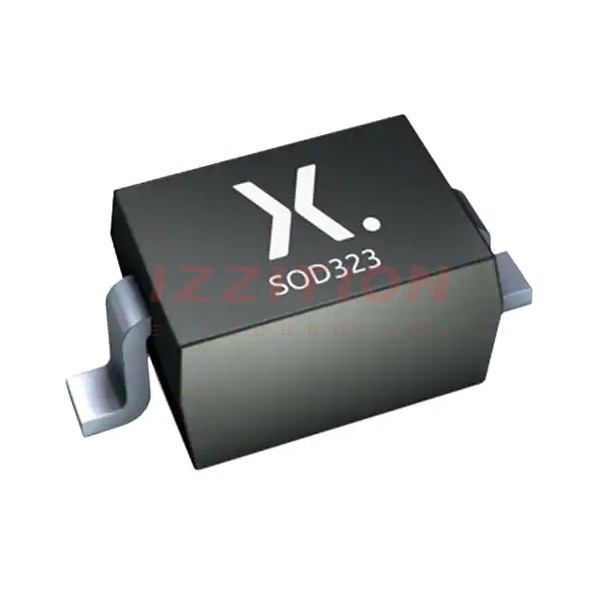

| Package | SOD-323 |
| Mounting Method | Surface Mount |
| Reverse Voltage (Vrrm) | 20 V |
| Average Rectified Current (Max) | 0.5 A |
| Peak Current (Max) | 10 A |
| Reverse Current (Max) | 200 µA |
| Forward Voltage | 355 mV |
| Operating Temperature | -40°C to 150°C |
Key Features
- High Power Density: Enables efficient energy conversion and processing.
- Surface Mount Package: The SOD-323 package makes it ideal for modern electronic circuit design and manufacturing processes.
- Low Forward Voltage Drop: Ensures optimal performance with minimal voltage loss.
- Fast Switching Speeds: Suitable for high-frequency applications.
- Low Noise Operation: Minimizes disturbance to the surrounding environment during switching operations.
- Wide Operating Temperature Range: Functions efficiently from -40°C to 150°C.
- Inverse Polarity Protection: Prevents damage to connected devices due to reversed voltage inputs.
- Low Power Consumption: Designed for energy efficiency in modern electronic systems.
Applications
- Low Voltage Rectification: Ideal for applications requiring high efficiency and reliable performance.
- High Efficiency DC/DC Conversion: Suitable for converting AC or DC voltages at high efficiencies.
- Voltage Clamping: Effective in regulating voltage fluctuations and ensuring circuit stability.
- Power Management: Used in power management systems for industrial and other applications.
- Industrial Applications: Suitable for various industrial applications requiring robust and efficient diodes.
Q & A
- Q: What is the maximum reverse voltage of the PMEG2005AEA,115?
A: The maximum reverse voltage (Vrrm) is 20 V. - Q: What is the average rectified current of the PMEG2005AEA,115?
A: The average rectified current is 0.5 A. - Q: What is the forward voltage drop of the PMEG2005AEA,115?
A: The forward voltage drop is 355 mV. - Q: What is the operating temperature range of the PMEG2005AEA,115?
A: The operating temperature range is from -40°C to 150°C. - Q: What are the key applications of the PMEG2005AEA,115?
A: Key applications include low voltage rectification, high efficiency DC/DC conversion, voltage clamping, and power management in industrial settings. - Q: Does the PMEG2005AEA,115 offer inverse polarity protection?
A: Yes, it provides inverse polarity protection to prevent damage from reversed voltage inputs. - Q: What is the package type of the PMEG2005AEA,115?
A: The package type is SOD-323. - Q: Is the PMEG2005AEA,115 RoHS compliant?
A: Yes, the PMEG2005AEA,115 is RoHS compliant. - Q: What is the warranty period for the PMEG2005AEA,115 from Ovaga?
A: Ovaga offers a 1-year warranty for the PMEG2005AEA,115. - Q: How can I ensure the authenticity of the PMEG2005AEA,115 from suppliers?
A: Suppliers like Ovaga rigorously test and verify the credentials of original manufacturers and authorized agents to ensure authenticity.
