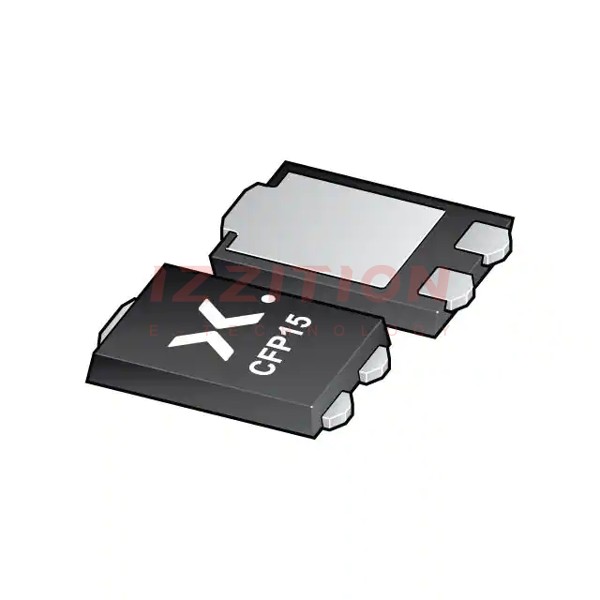

Nexperia USA Inc. PMEG100V060ELPD/S500139

Manufacturer No:
PMEG100V060ELPD/S500139
Manufacturer:
Nexperia USA Inc.
Package:
Bulk
Description:
RECTIFIER DIODE, SCHOTTKY
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PMEG100V060ELPD is a 100 V, 6 A low leakage current Schottky barrier rectifier produced by Nexperia USA Inc. This component is part of Nexperia's extensive portfolio of diodes, designed to meet the demands of various applications, including automotive, industrial, and consumer electronics. The PMEG100V060ELPD is known for its high efficiency and low leakage current, making it suitable for a range of power management and rectification tasks.

Key Specifications

ParameterValue
Type NumberPMEG100V060ELPD
Maximum Reverse Voltage (VR)100 V
Maximum Forward Current (IF)6 A
PackageSOT1289 (CFP15)
Package Size5.8 x 4.3 x 0.78 mm
Maximum Reverse Leakage Current (IR)Typically in the range of low leakage current
RoHS ComplianceYes, EU RoHS compliant and halogen-free

Key Features

  • Low leakage current, enhancing efficiency in power management applications.
  • High forward current capability of up to 6 A.
  • Maximum reverse voltage of 100 V, providing robust protection against voltage spikes.
  • Compact SOT1289 (CFP15) package, suitable for space-constrained designs.
  • EU RoHS compliant and halogen-free, aligning with environmental regulations.

Applications

  • Low voltage rectification in various electronic systems.
  • Automotive LED lighting, where high efficiency and reliability are crucial.
  • High efficiency DC-to-DC conversion and switch mode power supplies.
  • Reverse polarity protection to safeguard against incorrect voltage connections.

Q & A

  1. What is the maximum reverse voltage of the PMEG100V060ELPD?
    The maximum reverse voltage is 100 V.
  2. What is the maximum forward current of the PMEG100V060ELPD?
    The maximum forward current is 6 A.
  3. What package type does the PMEG100V060ELPD use?
    The PMEG100V060ELPD uses the SOT1289 (CFP15) package.
  4. Is the PMEG100V060ELPD RoHS compliant?
    Yes, it is EU RoHS compliant and halogen-free.
  5. What are some common applications of the PMEG100V060ELPD?
    Common applications include low voltage rectification, automotive LED lighting, high efficiency DC-to-DC conversion, and switch mode power supplies.
  6. What is the significance of low leakage current in the PMEG100V060ELPD?
    The low leakage current enhances the efficiency of the component in power management applications.
  7. How does the PMEG100V060ELPD protect against incorrect voltage connections?
    It provides reverse polarity protection.
  8. What is the size of the PMEG100V060ELPD package?
    The package size is 5.8 x 4.3 x 0.78 mm.
  9. Can the PMEG100V060ELPD be used in automotive applications?
    Yes, it is suitable for automotive applications, including LED lighting.
  10. Where can I find more detailed specifications and datasheets for the PMEG100V060ELPD?
    You can find detailed specifications and datasheets on Nexperia's official website or through authorized distributors.
