Nexperia USA Inc. PMBT2907AYSX

Manufacturer No:
PMBT2907AYSX
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
TRANS PNP 60V 0.6A 6TSSOP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

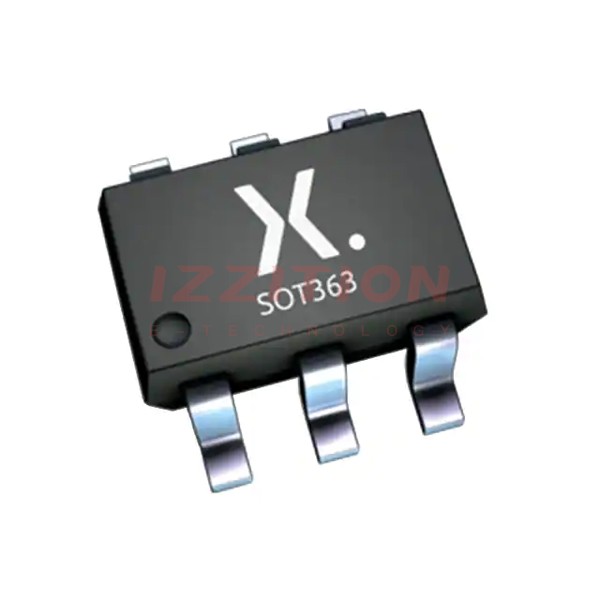

The PMBT2907AYSX is a double PNP switching transistor produced by Nexperia USA Inc. This component is designed for high-current and low-voltage applications, making it suitable for a variety of electronic circuits. It is packaged in a small SOT363 (TSSOP6) Surface-Mounted Device (SMD) plastic package, which allows for significant space savings and increased design flexibility on the PCB.

Key Specifications

Parameter Value Unit
Collector-Emitter Voltage (Vce) -60 V
Collector-Base Voltage (Vcb) -60 V
Emitter-Base Voltage (Veb) -5 V
Collector Current (Ic max) 0.6 A
Transition Frequency (ft) 200 MHz
Forward Current Transfer Ratio (hFE), MIN 100 -
Maximum Operating Junction Temperature (Tj) 150 °C
Package Type SOT363 (TSSOP6) -
AEC-Q101 Qualification Yes -

Key Features

  • High current capability up to 600 mA
  • Low voltage operation up to 60 V
  • Double PNP switching transistor in a single package
  • AEC-Q101 qualified, making it suitable for automotive applications
  • Small form factor using SOT363 (TSSOP6) package, reducing board space by about 75%
  • Operating temperature range from -55°C to 150°C

Applications

  • Switching circuits
  • Linear amplification
  • Automotive electronics due to AEC-Q101 qualification
  • General-purpose switching applications where high current and low voltage are required

Q & A

  1. What is the maximum collector-emitter voltage of the PMBT2907AYSX?

    The maximum collector-emitter voltage (Vce) is 60 V.

  2. What is the maximum collector current of the PMBT2907AYSX?

    The maximum collector current (Ic max) is 600 mA.

  3. What is the transition frequency of the PMBT2907AYSX?

    The transition frequency (ft) is 200 MHz.

  4. What is the package type of the PMBT2907AYSX?

    The PMBT2907AYSX is packaged in a SOT363 (TSSOP6) Surface-Mounted Device (SMD) plastic package..

  5. Is the PMBT2907AYSX AEC-Q101 qualified?

    Yes, the PMBT2907AYSX is AEC-Q101 qualified, making it suitable for automotive applications.

  6. What is the operating temperature range of the PMBT2907AYSX?

    The operating temperature range is from -55°C to 150°C.

  7. What are the typical applications of the PMBT2907AYSX?

    Typical applications include switching circuits, linear amplification, and automotive electronics..

  8. What is the forward current transfer ratio (hFE) of the PMBT2907AYSX?

    The minimum forward current transfer ratio (hFE) is 100.

  9. How does the small form factor of the PMBT2907AYSX benefit PCB design?

    The small SOT363 (TSSOP6) package reduces board space by about 75%, allowing more design flexibility..

  10. What is the maximum emitter-base voltage of the PMBT2907AYSX?

    The maximum emitter-base voltage (Veb) is 5 V.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):600 mA
Voltage - Collector Emitter Breakdown (Max):60 V
Vce Saturation (Max) @ Ib, Ic:1.6V @ 50mA, 500mA
Current - Collector Cutoff (Max):10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:100 @ 10mA, 1V
Power - Max:250 mW
Frequency - Transition:200MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:6-TSSOP, SC-88, SOT-363
Supplier Device Package:6-TSSOP
