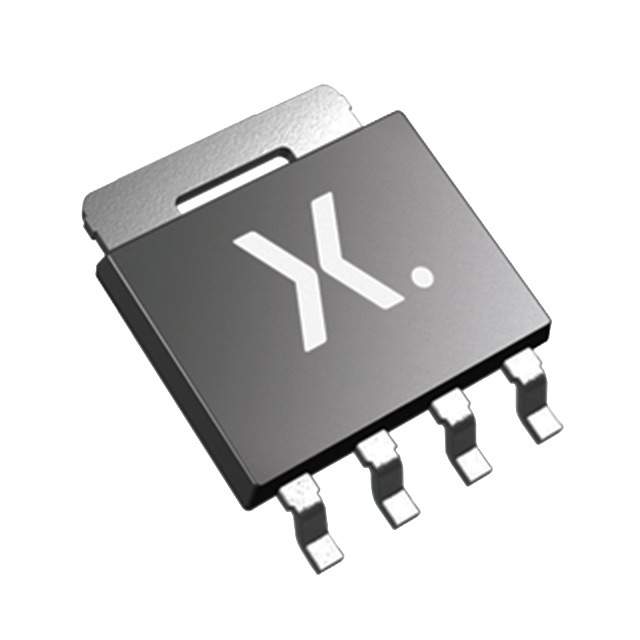

Nexperia USA Inc. PHPT60406PYX

Manufacturer No:
PHPT60406PYX
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
TRANS PNP 40V 6A LFPAK56 PWRSO8
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PHPT60406PYX is a high-performance bipolar junction transistor (BJT) produced by Nexperia USA Inc. This PNP transistor is designed for high-power applications, offering superior thermal power dissipation and energy efficiency. It is packaged in the LFPAK56 (Power-SO8) format, which enhances its thermal performance and reduces the need for additional heat sinks on the PCB.

Key Specifications

Parameter Value Unit
Transistor Type PNP
Voltage - Collector Emitter Breakdown (Max) 40 V
Current - Collector (Ic) (Max) 6 A
Frequency - Transition 110 MHz
Power Dissipation (Max) 1.35 W
Package LFPAK56, Power-SO8
Mounting Type Surface Mount

Key Features

  • High Thermal Power Dissipation Capability: The LFPAK56 package ensures excellent thermal performance, reducing the need for additional heat sinks on the PCB.
  • High Energy Efficiency: These devices generate less heat, contributing to higher energy efficiency in applications.
  • Compact Design: The Power-SO8 package minimizes PCB space requirements, making it ideal for compact designs.
  • High Frequency Operation: With a transition frequency of 110 MHz, this transistor is suitable for high-frequency applications.

Applications

  • Automotive Electronics: Suitable for various automotive applications due to its high reliability and thermal performance.
  • Industrial Power Systems: Used in power supplies, motor drives, and other industrial power systems where high power and efficiency are required.
  • Consumer Electronics: Ideal for applications in consumer electronics that demand high power handling and compact design.
  • Robotics and Automation: Utilized in robotics and automation systems for reliable and efficient power switching.

Q & A

  1. What is the maximum collector current of the PHPT60406PYX transistor?

    The maximum collector current is 6 A.

  2. What is the maximum collector-emitter breakdown voltage of the PHPT60406PYX transistor?

    The maximum collector-emitter breakdown voltage is 40 V.

  3. What package type is used for the PHPT60406PYX transistor?

    The transistor is packaged in the LFPAK56 (Power-SO8) format.

  4. What is the transition frequency of the PHPT60406PYX transistor?

    The transition frequency is 110 MHz.

  5. What is the maximum power dissipation of the PHPT60406PYX transistor?

    The maximum power dissipation is 1.35 W.

  6. Is the PHPT60406PYX transistor suitable for high-frequency applications?

    Yes, it is suitable for high-frequency applications due to its high transition frequency.

  7. What are the primary applications of the PHPT60406PYX transistor?

    The primary applications include automotive electronics, industrial power systems, consumer electronics, and robotics and automation.

  8. Why is the LFPAK56 package beneficial for the PHPT60406PYX transistor?

    The LFPAK56 package enhances thermal performance and reduces the need for additional heat sinks on the PCB.

  9. Is the PHPT60406PYX transistor a surface mount device?

    Yes, it is a surface mount device.

  10. Where can I find detailed specifications and datasheets for the PHPT60406PYX transistor?

    Detailed specifications and datasheets can be found on the Nexperia website, Digi-Key, Mouser Electronics, and other authorized distributors.

Product Attributes

Transistor Type:PNP
Current - Collector (Ic) (Max):6 A
Voltage - Collector Emitter Breakdown (Max):40 V
Vce Saturation (Max) @ Ib, Ic:540mV @ 300mA, 6A
Current - Collector Cutoff (Max):100nA
DC Current Gain (hFE) (Min) @ Ic, Vce:210 @ 500mA, 2V
Power - Max:1.35 W
Frequency - Transition:110MHz
Operating Temperature:175°C (TJ)
Mounting Type:Surface Mount
Package / Case:SC-100, SOT-669
Supplier Device Package:LFPAK56, Power-SO8
0 Remaining View Similar

In Stock

$0.61
1,451

Please send RFQ , we will respond immediately.

Similar Products

Part Number PHPT60406PYX PHPT60606PYX PHPT60406NYX
Manufacturer Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc.
Product Status Active Active Active
Transistor Type PNP PNP NPN
Current - Collector (Ic) (Max) 6 A 6 A 6 A
Voltage - Collector Emitter Breakdown (Max) 40 V 60 V 40 V
Vce Saturation (Max) @ Ib, Ic 540mV @ 300mA, 6A 525mV @ 600mA, 6A 380mV @ 300mA, 6A
Current - Collector Cutoff (Max) 100nA 100nA 100nA
DC Current Gain (hFE) (Min) @ Ic, Vce 210 @ 500mA, 2V 120 @ 500mA, 2V 230 @ 500mA, 2V
Power - Max 1.35 W 1.35 W 1.35 W
Frequency - Transition 110MHz 110MHz 153MHz
Operating Temperature 175°C (TJ) 175°C (TJ) 175°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case SC-100, SOT-669 SC-100, SOT-669 SC-100, SOT-669
Supplier Device Package LFPAK56, Power-SO8 LFPAK56, Power-SO8 LFPAK56, Power-SO8
