PDTA123EU,115
  • Share:

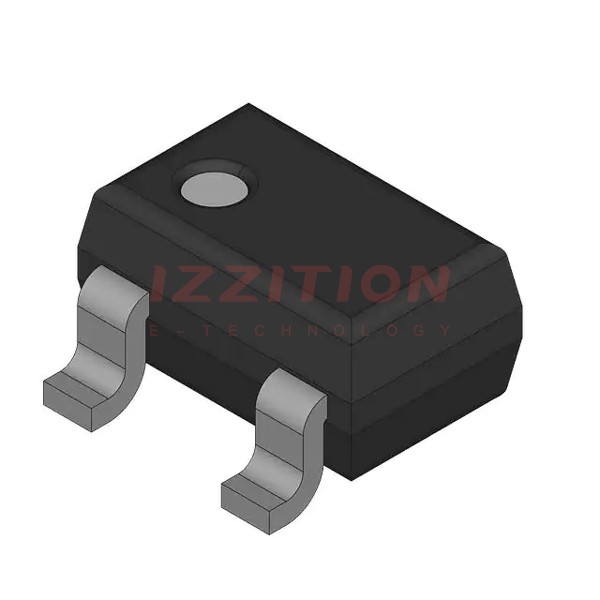

Nexperia USA Inc. PDTA123EU,115

Manufacturer No:
PDTA123EU,115
Manufacturer:
Nexperia USA Inc.
Package:
Bulk
Description:
NEXPERIA PDTA123EU - SMALL SIGNA
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The PDTA123EU,115 is a pre-biased bipolar transistor produced by Nexperia USA Inc. This component is part of Nexperia's extensive portfolio of bipolar transistors, designed to simplify circuit design and reduce component count. The PDTA123EU,115 is particularly useful in applications where space is limited and high reliability is required.

Key Specifications

ParameterValue
Transistor TypePre-Biased Bipolar Transistor
Package TypeSOT23, TAPE-7
Collector-Base Voltage (Vcbo)50 V
Collector-Emitter Voltage (Vceo)50 V
Emitter-Base Voltage (Vebo)5 V
Collector Current (Ic)100 mA
Power Dissipation (Pd)250 mW
Operating Temperature Range-55°C to 150°C

Key Features

  • Pre-biased configuration, reducing the need for external resistors and simplifying circuit design.
  • Compact SOT23 package, ideal for space-constrained applications.
  • High reliability and robust performance.
  • Suitable for a wide range of applications including automotive, industrial, and consumer electronics.
  • Low power consumption, contributing to energy-efficient designs.

Applications

The PDTA123EU,115 is versatile and can be used in various applications, including:

  • Automotive systems: For use in vehicle control units, sensors, and other automotive electronics.
  • Industrial control systems: In motor control, power supplies, and other industrial automation components.
  • Consumer electronics: In audio equipment, home appliances, and other consumer devices.
  • General-purpose switching and amplification: Where a pre-biased transistor can simplify the design and reduce component count.

Q & A

  1. What is the PDTA123EU,115?
    The PDTA123EU,115 is a pre-biased bipolar transistor produced by Nexperia USA Inc.
  2. What package type does the PDTA123EU,115 come in?
    The PDTA123EU,115 comes in the SOT23 package with TAPE-7 reel.
  3. What is the maximum collector current of the PDTA123EU,115?
    The maximum collector current is 100 mA.
  4. What is the power dissipation of the PDTA123EU,115?
    The power dissipation is 250 mW.
  5. What is the operating temperature range of the PDTA123EU,115?
    The operating temperature range is -55°C to 150°C.
  6. What are the key benefits of using a pre-biased transistor like the PDTA123EU,115?
    The key benefits include simplified circuit design, reduced component count, and compact packaging.
  7. In which industries is the PDTA123EU,115 commonly used?
    The PDTA123EU,115 is commonly used in automotive, industrial, and consumer electronics.
  8. Is the PDTA123EU,115 suitable for high-reliability applications?
    Yes, the PDTA123EU,115 is designed for high reliability and robust performance.
  9. Where can I find more detailed specifications for the PDTA123EU,115?
    You can find detailed specifications in the datasheet available on Nexperia's official website or through distributors like Digi-Key and Mouser.
  10. What are some typical applications for the PDTA123EU,115 in consumer electronics?
    Typical applications include audio equipment, home appliances, and other consumer devices requiring general-purpose switching and amplification.

Product Attributes

Transistor Type:-
Current - Collector (Ic) (Max):-
Voltage - Collector Emitter Breakdown (Max):-
Vce Saturation (Max) @ Ib, Ic:-
Current - Collector Cutoff (Max):-
DC Current Gain (hFE) (Min) @ Ic, Vce:-
Power - Max:-
Frequency - Transition:-
Operating Temperature:-
Mounting Type:-
Package / Case:-
Supplier Device Package:-
0 Remaining View Similar

In Stock

$0.02
47,128

Please send RFQ , we will respond immediately.
