Overview

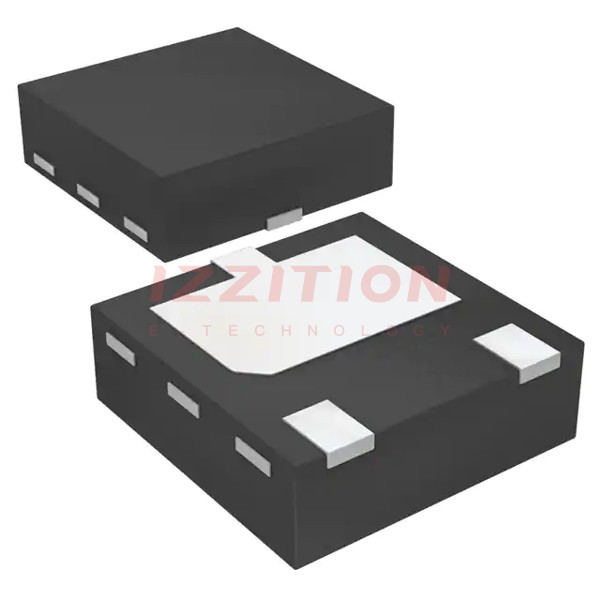

The PBSS9410PA,115 is a high-performance PNP bipolar junction transistor (BJT) manufactured by Nexperia USA Inc. This component is designed to meet the demands of various electronic applications requiring high current and voltage handling capabilities. With its robust specifications and reliable performance, the PBSS9410PA,115 is a versatile choice for designers and engineers across multiple industries.
Key Specifications
| Parameter | Value |
|---|---|
| Type | PNP Bipolar Junction Transistor |
| Maximum Collector-Base Voltage (Vcb) | 100 V |
| Maximum Collector-Emitter Voltage (Vce) | 100 V |
| Maximum Emitter-Base Voltage (Veb) | 5 V |
| Continuous Collector Current (Ic) | 2.7 A |
| Transition Frequency (ft) | 115 MHz |
| Power Dissipation (Ptot) | 2.1 W |
| Package Type | Surface Mount 3-HUSON (2x2) |
Key Features
- High current handling capability of up to 2.7 A.
- High voltage ratings with Vcb, Vce, and Veb of 100 V, 100 V, and 5 V respectively.
- High transition frequency of 115 MHz, making it suitable for high-frequency applications.
- Surface mount 3-HUSON (2x2) package for compact and efficient design.
- High power dissipation of 2.1 W, ensuring reliable operation in demanding environments.
Applications
The PBSS9410PA,115 is versatile and can be used in a variety of applications, including:
- Automotive systems: For high-current and high-voltage requirements in automotive electronics.
- Industrial control: In motor control, power supplies, and other industrial automation systems.
- Consumer electronics: In audio amplifiers, power supplies, and other high-current applications.
- Power management: In switching power supplies, DC-DC converters, and other power management circuits.
