PBSS4330PASX
  • Share:

Nexperia USA Inc. PBSS4330PASX

Manufacturer No:
PBSS4330PASX
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
TRANS NPN 30V 3A DFN2020D-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

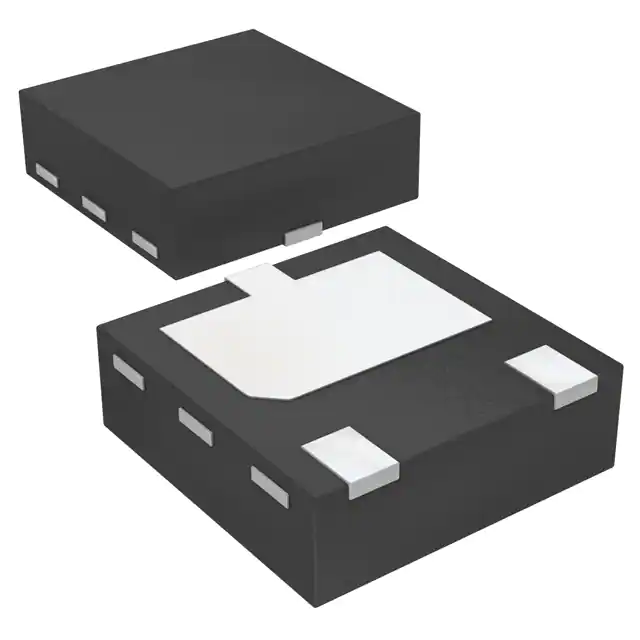

The PBSS4330PASX is a 30 V, 3 A NPN low VCEsat transistor manufactured by Nexperia USA Inc. This transistor is encapsulated in an ultra-thin DFN2020D-3 (SOT1061D) leadless small Surface-Mounted Device (SMD) plastic package, offering medium power capability and excellent thermal and electrical conductivity. It is designed for high efficiency and reduced heat generation, making it suitable for a variety of applications, including load switches, battery-driven devices, power management, and charging circuits.

Key Specifications

Parameter Value
Type NPN
VCEO [max] 30 V
IC [max] 3 A
VCEsat [max] @ Ib, Ic 300 mV @ 300 mA, 3 A
Ptot 600 mW
hFE [min/max] 300 / 700
TJ [max] 175 °C
fT [min] 100 MHz
Package DFN2020D-3 (SOT1061D)
Package Size 2 x 2 x 0.65 mm

Key Features

  • Low collector-emitter saturation voltage VCEsat
  • High collector current capability IC and ICM
  • High collector current gain (hFE) at high IC
  • High efficiency due to less heat generation
  • Suitable for high temperature applications up to 175 °C
  • Leadless small SMD plastic package with soldarable side pads
  • Exposed heat sink for excellent thermal and electrical conductivity
  • Suitable for Automatic Optical Inspection (AOI) of solder joint

Applications

  • Load switches
  • Battery-driven devices
  • Power management
  • Charging circuits
  • Power switches (e.g., motors, fans)

Q & A

  1. What is the maximum collector-emitter voltage (VCEO) of the PBSS4330PASX?

    The maximum collector-emitter voltage (VCEO) is 30 V.

  2. What is the maximum collector current (IC) of the PBSS4330PASX?

    The maximum collector current (IC) is 3 A.

  3. What is the typical collector-emitter saturation voltage (VCEsat) of the PBSS4330PASX?

    The typical collector-emitter saturation voltage (VCEsat) is 300 mV @ 300 mA, 3 A.

  4. What is the maximum junction temperature (TJ) of the PBSS4330PASX?

    The maximum junction temperature (TJ) is 175 °C.

  5. What is the package type and size of the PBSS4330PASX?

    The package type is DFN2020D-3 (SOT1061D) with a size of 2 x 2 x 0.65 mm.

  6. What are the key applications of the PBSS4330PASX?

    The key applications include load switches, battery-driven devices, power management, charging circuits, and power switches (e.g., motors, fans).

  7. Does the PBSS4330PASX support high collector current gain (hFE)? FE) at high IC, ranging from 300 to 700.

  8. Is the PBSS4330PASX suitable for high temperature applications?
  9. Does the PBSS4330PASX have an exposed heat sink?
  10. Can the PBSS4330PASX be inspected using Automatic Optical Inspection (AOI)?

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):3 A
Voltage - Collector Emitter Breakdown (Max):30 V
Vce Saturation (Max) @ Ib, Ic:300mV @ 300mA, 3A
Current - Collector Cutoff (Max):100nA
DC Current Gain (hFE) (Min) @ Ic, Vce:270 @ 1A, 2V
Power - Max:600 mW
Frequency - Transition:-
Operating Temperature:175°C (TJ)
Mounting Type:Surface Mount
Package / Case:3-UDFN Exposed Pad
Supplier Device Package:DFN2020D-3
0 Remaining View Similar

In Stock

$0.17
443

Please send RFQ , we will respond immediately.

Similar Products

Part Number PBSS4330PASX PBSS4360PASX PBSS5330PASX
Manufacturer Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc.
Product Status Active Active Active
Transistor Type NPN NPN PNP
Current - Collector (Ic) (Max) 3 A 3 A 3 A
Voltage - Collector Emitter Breakdown (Max) 30 V 60 V 30 V
Vce Saturation (Max) @ Ib, Ic 300mV @ 300mA, 3A 325mV @ 300mA, 3A 320mV @ 300mA, 3A
Current - Collector Cutoff (Max) 100nA 100nA (ICBO) 100nA
DC Current Gain (hFE) (Min) @ Ic, Vce 270 @ 1A, 2V 200 @ 1A, 5V 175 @ 1A, 2V
Power - Max 600 mW 600 mW 600 mW
Frequency - Transition - 160MHz 165MHz
Operating Temperature 175°C (TJ) 175°C (TJ) 175°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case 3-UDFN Exposed Pad 3-UDFN Exposed Pad 3-UDFN Exposed Pad
Supplier Device Package DFN2020D-3 DFN2020D-3 DFN2020D-3
