Overview

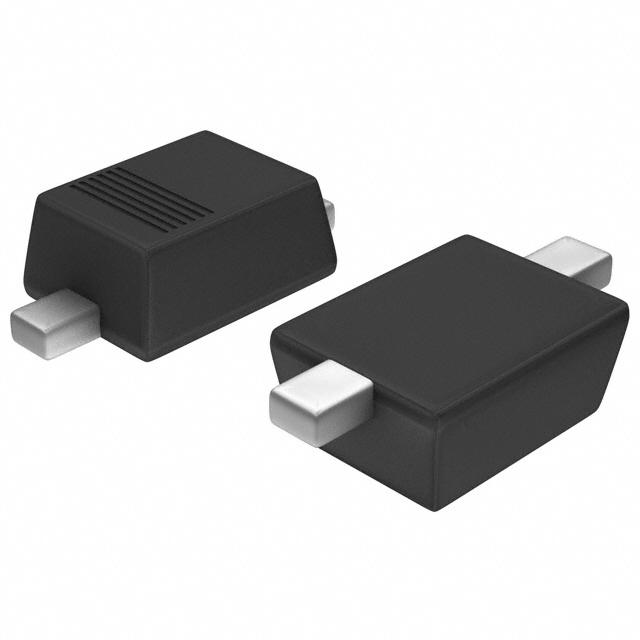

The BZX84J-B5V6/DG/B3X is a low-power voltage regulator diode produced by Nexperia USA Inc. This component is part of the BZX84 series, known for its high precision and reliability in voltage regulation. The diode is packaged in a SOD323F (SC-90) Surface-Mounted Device (SMD) plastic package, which is very small and flat, making it ideal for compact electronic designs.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Type Number | BZX84J-B5V6 | - |
| Package | SOD323F (SC-90) | - |
| Size (mm) | 1.7 x 1.25 x 0.7 | - |
| Nominal Zener Voltage (VZ) | 5.6 | V |
| Zener Current (IZ) | 5 | mA |
| Tolerance | ±2% | - |
| Minimum Zener Voltage (VZ min) | 5.49 | V |
| Maximum Zener Voltage (VZ max) | 5.71 | V |
| Maximum Forward Current (IF max) | 200 | mA |
| Total Power Dissipation (Ptot) | ≤250 | mW |
| Non-Repetitive Peak Reverse Power Dissipation (PZSM) | ≤40 | W |
| Junction Temperature (TJ) | -65 to +150 | °C |
Key Features
- Low Power Consumption: Total power dissipation of ≤250 mW, making it suitable for low-power applications.
- Precision Voltage Regulation: Available in three tolerance series: ±1%, ±2%, and approximately ±5%.
- Wide Voltage Range: Nominal working voltages from 2.4 V to 75 V (E24 range).
- Compact Package: SOD323F (SC-90) package, ideal for space-constrained designs.
- High Reliability: Non-repetitive peak reverse power dissipation of ≤40 W.
Applications
The BZX84J-B5V6/DG/B3X voltage regulator diode is versatile and can be used in various applications, including:
- General Regulation Functions: Suitable for voltage stabilization and regulation in electronic circuits.
- Automotive and Industrial: Used in automotive and industrial control systems where precise voltage regulation is required.
- Consumer Electronics: Found in consumer devices such as mobile phones, tablets, and other portable electronics.
- Power and Computing: Used in power supplies, computing devices, and other electronic systems requiring stable voltage regulation.
Q & A
- What is the nominal Zener voltage of the BZX84J-B5V6/DG/B3X diode?
The nominal Zener voltage is 5.6 V.
- What is the tolerance of the BZX84J-B5V6/DG/B3X diode?
The tolerance is ±2%.
- What is the maximum forward current for the BZX84J-B5V6/DG/B3X diode?
The maximum forward current is 200 mA.
- What is the total power dissipation of the BZX84J-B5V6/DG/B3X diode?
The total power dissipation is ≤250 mW.
- What is the non-repetitive peak reverse power dissipation of the BZX84J-B5V6/DG/B3X diode?
The non-repetitive peak reverse power dissipation is ≤40 W.
- What is the junction temperature range for the BZX84J-B5V6/DG/B3X diode?
The junction temperature range is -65 to +150 °C.
- In what package is the BZX84J-B5V6/DG/B3X diode available?
The diode is available in a SOD323F (SC-90) package.
- What are the typical applications of the BZX84J-B5V6/DG/B3X diode?
Typical applications include general regulation functions, automotive and industrial control systems, consumer electronics, and power supplies.
- How many types of tolerance are available in the BZX84 series?
There are three tolerance series: ±1%, ±2%, and approximately ±5%.
- What is the working voltage range of the BZX84 series?
The working voltage range is from 2.4 V to 75 V (E24 range).
