Overview
The BZA968A,115 is a quadruple ESD (Electrostatic Discharge) transient voltage suppressor diode manufactured by Nexperia USA Inc. This component is designed to provide robust protection against ESD and other transient voltage surges in electronic circuits. It is particularly suited for protecting in-vehicle network bus lines and other sensitive electronic components from damage caused by transient voltages.
Key Specifications
| Type number | Package name | Number of lines | Configuration | VRWM (V) | Cd [typ] (pF) | VESD IEC61000-4-2 (kV) |
|---|---|---|---|---|---|---|
| BZA968A | SOT665 | 4 | Unidirectional | 4.3 | - | 8 |
Key Features
- Clamping Characteristics: Delivers very good clamping characteristics and typical surge robustness of 38.3A (8/20 μs pulse).
- Transient Voltage Suppression: Protects against ESD and other transient voltage surges, ensuring the integrity of sensitive electronic components.

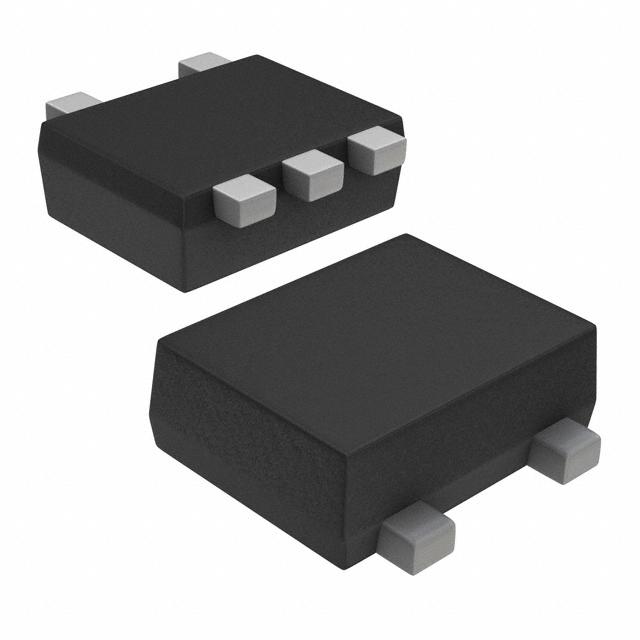

- Package: Comes in a five-lead SOT665 package, which is a plastic, surface-mounted package with a 1 mm pitch and dimensions of 1.6 mm x 1.2 mm x 0.55 mm.
- Automotive Compatibility: Suitable for protecting two automotive in-vehicle network bus lines from damage caused by ESD and other transients.
Applications
- Automotive Electronics: Protects in-vehicle network bus lines and other sensitive components in automotive systems from ESD and transient voltages.
- Industrial Electronics: Used in various industrial applications where robust protection against transient voltages is required.
- Consumer Electronics: Suitable for protecting electronic circuits in consumer devices from ESD and other transient voltage surges.
Q & A
- Q: What is the primary function of the BZA968A,115?
A: The primary function of the BZA968A,115 is to provide protection against ESD and other transient voltage surges in electronic circuits. - Q: What package does the BZA968A,115 come in?
A: The BZA968A,115 comes in a five-lead SOT665 package. - Q: What is the typical surge robustness of the BZA968A,115?
A: The BZA968A,115 has a typical surge robustness of 38.3A (8/20 μs pulse). - Q: What is the VRWM of the BZA968A,115?
A: The VRWM of the BZA968A,115 is 4.3 V. - Q: What is the VESD IEC61000-4-2 rating of the BZA968A,115?
A: The VESD IEC61000-4-2 rating of the BZA968A,115 is 8 kV. - Q: Is the BZA968A,115 suitable for automotive applications?
A: Yes, the BZA968A,115 is suitable for protecting in-vehicle network bus lines and other components in automotive systems. - Q: What are the dimensions of the SOT665 package?
A: The SOT665 package has dimensions of 1.6 mm x 1.2 mm x 0.55 mm. - Q: How many lines does the BZA968A,115 protect?
A: The BZA968A,115 protects 4 lines. - Q: What is the configuration of the BZA968A,115?
A: The BZA968A,115 has a unidirectional configuration. - Q: Where can I purchase the BZA968A,115?
A: The BZA968A,115 can be purchased from various distributors, including those listed on Nexperia's official website and other electronic component suppliers.
