Overview

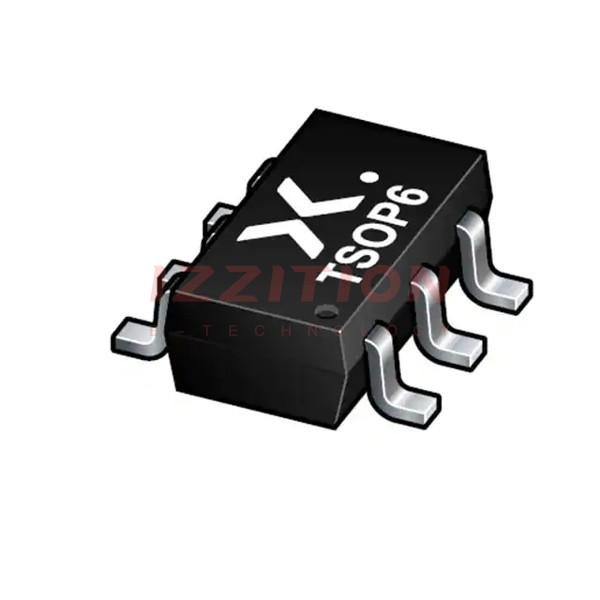

The BZA420A,125 is a Transient Voltage Suppressor (TVS) diode manufactured by Nexperia USA Inc. This component is designed to protect electronic circuits from voltage spikes and transient events, ensuring the reliability and longevity of the system. It is packaged in a 6-TSOP (Thin Small Outline Package) surface mount format, making it suitable for a wide range of applications where space is limited.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage (VWM) | 20V |
| Clamping Voltage (VC) | 28V |
| Package Type | 6-TSOP |
| Polarity | Unidirectional |
| Peak Pulse Current (Ipp) | As specified in datasheet |
Key Features
- Transient Voltage Suppression to protect against voltage spikes and surges.
- Surface mount 6-TSOP package for compact design.
- Unidirectional polarity for specific circuit protection needs.
- High reliability and durability in various environmental conditions.
Applications
The BZA420A,125 TVS diode is suitable for a variety of applications including:
- Automotive systems requiring protection against voltage transients.
- Industrial control systems and equipment.
- Consumer electronics needing surge protection.
- Telecommunication devices and networks.
Q & A
- What is the primary function of the BZA420A,125? The primary function is to protect electronic circuits from voltage spikes and transient events.
- What is the voltage rating of the BZA420A,125? The voltage rating (VWM) is 20V.
- What is the clamping voltage of the BZA420A,125? The clamping voltage (VC) is 28V.
- What package type does the BZA420A,125 use? It uses a 6-TSOP surface mount package.
- Is the BZA420A,125 bidirectional or unidirectional? It is unidirectional.
- Where can I find detailed specifications for the BZA420A,125? Detailed specifications can be found in the datasheet available from sources like Digi-Key, Mouser, and the manufacturer's website.
- What are some common applications for the BZA420A,125? Common applications include automotive systems, industrial control systems, consumer electronics, and telecommunication devices.
- How do I ensure the correct installation of the BZA420A,125? Ensure correct installation by following the guidelines provided in the datasheet and adhering to standard surface mount soldering practices.
- Can the BZA420A,125 be used in high-temperature environments? The component is designed to operate within specified temperature ranges; refer to the datasheet for specific temperature limits.
- Where can I purchase the BZA420A,125? The component can be purchased from distributors such as Digi-Key, Mouser, and Heisener.
