Overview
The BZA420A,115 is a Transient Voltage Suppressor (TVS) diode manufactured by Nexperia USA Inc. This component is designed to protect electronic circuits from voltage spikes and transient events, ensuring the reliability and longevity of the system. It is particularly suited for applications requiring high surge current capability and low leakage current.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage (VBR) | 28 V |
| Clamping Voltage (VC) | Typically 33.6 V at IPP = 1 A |
| Peak Pulse Current (IPP) | 1 A |

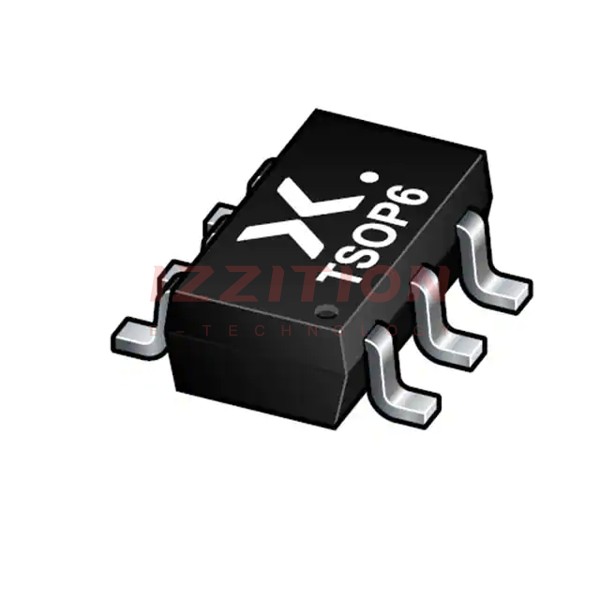

| Package Type | Surface Mount 6-TSOP |
| Operating Temperature Range | -55°C to +150°C |
| Leakage Current (IR) | Typically 1 μA at VR = 25 V |
Key Features
- High surge current capability
- Low leakage current
- Surface mount 6-TSOP package for compact design
- Wide operating temperature range (-55°C to +150°C)
- High reliability and durability against transient voltage spikes
Applications
The BZA420A,115 TVS diode is suitable for various applications requiring protection against voltage transients, including:
- Automotive systems
- Industrial control systems
- Consumer electronics
- Telecommunication equipment
- Medical devices
Q & A
- What is the primary function of the BZA420A,115? The primary function is to protect electronic circuits from voltage spikes and transient events.
- What is the voltage rating of the BZA420A,115? The voltage rating (VBR) is 28 V.
- What is the clamping voltage of the BZA420A,115? The clamping voltage is typically 33.6 V at IPP = 1 A.
- What is the peak pulse current (IPP) of the BZA420A,115? The peak pulse current is 1 A.
- What package type does the BZA420A,115 come in? It comes in a surface mount 6-TSOP package.
- What is the operating temperature range of the BZA420A,115? The operating temperature range is -55°C to +150°C.
- What is the typical leakage current of the BZA420A,115? The typical leakage current is 1 μA at VR = 25 V.
- Where can I purchase the BZA420A,115? You can purchase it from distributors like DigiKey, Mouser Electronics, and Arrow Electronics.
- What are some common applications for the BZA420A,115? Common applications include automotive systems, industrial control systems, consumer electronics, telecommunication equipment, and medical devices.
- Is the BZA420A,115 suitable for high-reliability applications? Yes, it is designed for high reliability and durability against transient voltage spikes.
