Overview

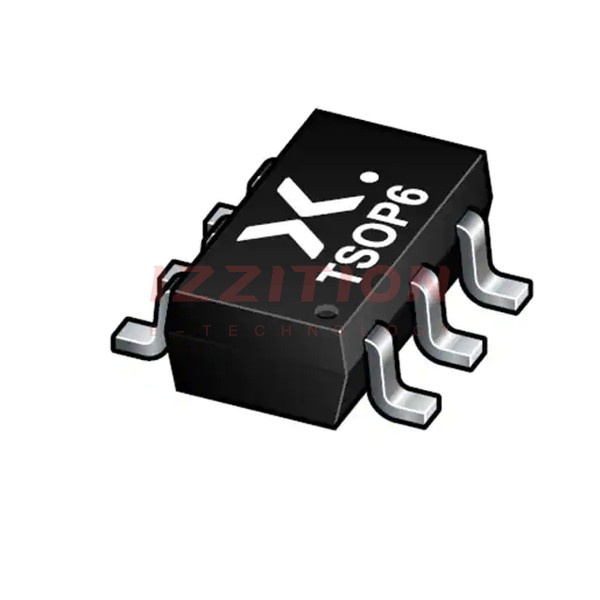

The BZA408B,125 is a quadruple bidirectional ESD (Electrostatic Discharge) transient voltage suppressor manufactured by Nexperia USA Inc. This component is designed to protect electronic circuits from voltage spikes and ESD events. It is automotive qualified and comes in a six lead SOT457 (SC-74) package, making it suitable for a variety of applications where robust ESD protection is required.
Key Specifications
| Parameter | Value |
|---|---|
| Package Type | SOT457 (SC-74), 6 leads |
| Voltage Protection | 5V |
| ESD Protection | Bidirectional |
| Qualification | Automotive qualified |
| Number of Channels | 4 |
Key Features
- Quadruple bidirectional ESD transient voltage suppressor, providing comprehensive protection against voltage spikes and ESD events.
- Automotive qualified, ensuring reliability and performance in demanding automotive environments.
- Compact SOT457 (SC-74) package, suitable for space-constrained designs.
- Monolithic construction, enhancing reliability and reducing the footprint.
Applications
The BZA408B,125 is ideal for various applications where robust ESD protection is necessary, including:
- Automotive systems: Infotainment, navigation, and other electronic subsystems.
- Consumer electronics: Smartphones, tablets, and other portable devices.
- Industrial control systems: Protecting sensitive electronics from ESD and voltage transients.
- Medical devices: Ensuring the reliability and safety of medical equipment.
Q & A
- What is the BZA408B,125 used for? The BZA408B,125 is used to protect electronic circuits from electrostatic discharge (ESD) and voltage transients.
- What package type does the BZA408B,125 come in? It comes in a six lead SOT457 (SC-74) package.
- Is the BZA408B,125 automotive qualified? Yes, it is automotive qualified.
- How many channels does the BZA408B,125 have? It has four channels.
- What is the voltage protection level of the BZA408B,125? The voltage protection level is 5V.
- What type of ESD protection does the BZA408B,125 offer? It offers bidirectional ESD protection.
- Where can the BZA408B,125 be used? It can be used in automotive systems, consumer electronics, industrial control systems, and medical devices.
- What is the benefit of the monolithic construction of the BZA408B,125? The monolithic construction enhances reliability and reduces the footprint.
- Is the BZA408B,125 suitable for space-constrained designs? Yes, it is suitable due to its compact package.
- Where can I find more detailed specifications for the BZA408B,125? You can find detailed specifications on the official Nexperia website or through distributors like Digi-Key and Mouser.
