Overview

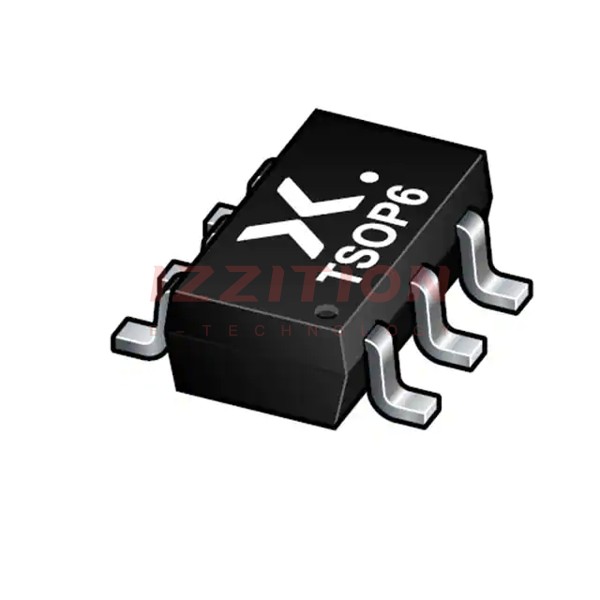

The BZA408B,115 is a quadruple bidirectional ESD (Electrostatic Discharge) transient voltage suppressor manufactured by Nexperia USA Inc. This component is designed to protect electronic circuits from voltage spikes and ESD events. It is automotive qualified and comes in a six lead SOT457 (SC-74) package, making it suitable for a variety of applications requiring robust ESD protection.
Key Specifications
| Parameter | Value |
|---|---|
| Package Type | SOT457 (SC-74), 6 leads |
| ESD Protection | Bidirectional |
| Number of Channels | 4 |
| Peak Pulse Current (Ipp) | 30 A (8/20 μs) |
| Clamping Voltage (Vc) | Typically 15 V (at Ipp = 30 A) |
| Maximum Operating Temperature | -55°C to 150°C |
| AEC-Q101 Qualified | Yes |
Key Features
- Quadruple bidirectional ESD transient voltage suppressor
- Automotive qualified (AEC-Q101)
- High peak pulse current capability (30 A, 8/20 μs)
- Low clamping voltage
- Compact SOT457 (SC-74) package
- Wide operating temperature range (-55°C to 150°C)
Applications
The BZA408B,115 is suitable for various applications requiring robust ESD protection, including:
- Automotive systems
- Industrial control systems
- Consumer electronics
- Communication devices
- Any application where multiple channels of ESD protection are needed
Q & A
- What is the BZA408B,115 used for? The BZA408B,115 is used to protect electronic circuits from electrostatic discharge (ESD) and transient voltage spikes.
- What package type does the BZA408B,115 come in? The BZA408B,115 comes in a six lead SOT457 (SC-74) package.
- How many channels of ESD protection does the BZA408B,115 provide? The BZA408B,115 provides four channels of bidirectional ESD protection.
- Is the BZA408B,115 automotive qualified? Yes, the BZA408B,115 is AEC-Q101 qualified.
- What is the peak pulse current capability of the BZA408B,115? The BZA408B,115 can handle a peak pulse current of 30 A (8/20 μs).
- What is the typical clamping voltage of the BZA408B,115? The typical clamping voltage is around 15 V at Ipp = 30 A.
- What is the operating temperature range of the BZA408B,115? The operating temperature range is -55°C to 150°C.
- Where can I use the BZA408B,115? You can use the BZA408B,115 in automotive systems, industrial control systems, consumer electronics, communication devices, and any application requiring multiple channels of ESD protection.
- How many leads does the SOT457 package have? The SOT457 package has six leads.
- Is the BZA408B,115 suitable for high-temperature environments? Yes, the BZA408B,115 is suitable for high-temperature environments up to 150°C.
