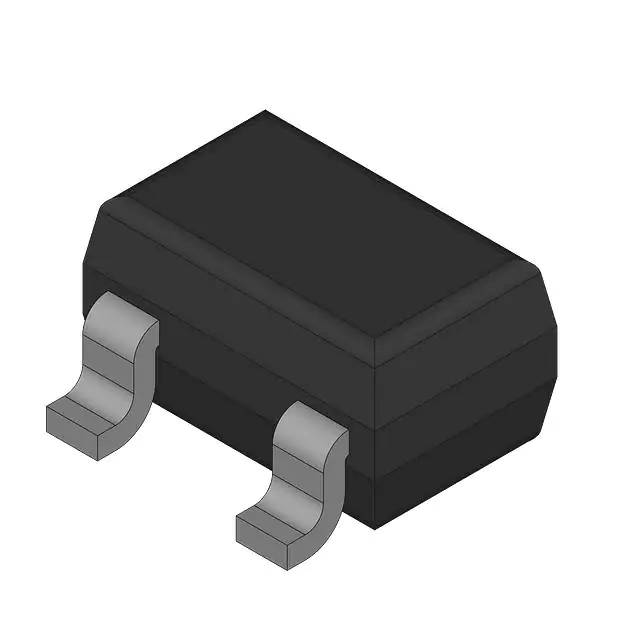

BC857BW/ZL115
  • Share:

Nexperia USA Inc. BC857BW/ZL115

Manufacturer No:
BC857BW/ZL115
Manufacturer:
Nexperia USA Inc.
Package:
Bulk
Description:
SMALL SIGNAL BIPOLAR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BC857BW/ZL115 is a discrete semiconductor transistor produced by Nexperia USA Inc., a leading manufacturer of semiconductor components. This PNP bipolar junction transistor is designed for general-purpose switching and amplification applications. It is known for its high-performance characteristics, robust reliability, and compact surface-mount package.

Key Specifications

ParameterValue
Collector-Emitter Breakdown Voltage (max)45 V
Collector Current (max)100 mA
Power Dissipation (max)200 mW
DC Current Gain (min)220 @ 2 mA, 5 V
Transition Frequency100 MHz
Operating Temperature RangeUp to 150°C
PackageSOT323 (SC-70)

Key Features

  • High-performance PNP bipolar junction transistor
  • Low collector-emitter saturation voltage
  • High current gain
  • High transition frequency up to 100 MHz
  • Wide operating temperature range up to 150°C
  • Compact surface-mount package (SOT323/SC-70)
  • RoHS3 compliant and Automotive-grade AEC-Q101 qualified

Applications

  • Amplifiers
  • Switches
  • Drivers
  • General-purpose electronics
  • Automotive and industrial applications
  • Power, computing, consumer, mobile, and wearable devices

Q & A

  1. What is the BC857BW/ZL115 transistor used for? The BC857BW/ZL115 is used for general-purpose switching and amplification applications.
  2. What is the maximum collector current of the BC857BW/ZL115? The maximum collector current is 100 mA.
  3. What is the operating temperature range of the BC857BW/ZL115? The operating temperature range is up to 150°C.
  4. Is the BC857BW/ZL115 RoHS compliant? Yes, the BC857BW/ZL115 is RoHS3 compliant.
  5. What is the package type of the BC857BW/ZL115? The package type is SOT323 (SC-70).
  6. What are the key advantages of the BC857BW/ZL115? Key advantages include high current gain, high transition frequency, and robust reliability in a compact package.
  7. Is the BC857BW/ZL115 suitable for automotive applications? Yes, it is Automotive-grade AEC-Q101 qualified.
  8. What is the maximum power dissipation of the BC857BW/ZL115? The maximum power dissipation is 200 mW.
  9. What is the transition frequency of the BC857BW/ZL115? The transition frequency is up to 100 MHz.
  10. Where can I purchase the BC857BW/ZL115? You can purchase it from Nexperia’s official distributors or through their sales organization.

Product Attributes

Transistor Type:-
Current - Collector (Ic) (Max):-
Voltage - Collector Emitter Breakdown (Max):-
Vce Saturation (Max) @ Ib, Ic:-
Current - Collector Cutoff (Max):-
DC Current Gain (hFE) (Min) @ Ic, Vce:-
Power - Max:-
Frequency - Transition:-
Operating Temperature:-
Mounting Type:-
Package / Case:-
Supplier Device Package:-
0 Remaining View Similar

In Stock

$0.02
10,365

Please send RFQ , we will respond immediately.
