Product Introduction

Overview

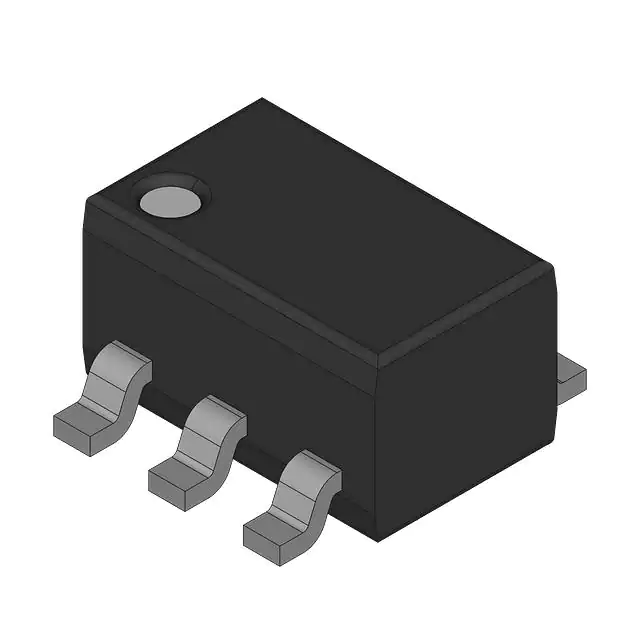

The BC856BS is a 65 V, 100 mA PNP/PNP general-purpose transistor pair manufactured by Nexperia USA Inc. This component is packaged in a very small Surface-Mounted Device (SMD) plastic package, specifically the TSSOP6 (SOT363) package. It is designed for general-purpose switching and amplification applications, offering low collector capacitance and low collector-emitter saturation voltage. The BC856BS is closely matched in current gain, reducing the number of components and board space required in designs.

Key Specifications

ParameterValue
Type numberBC856BS
PackageTSSOP6 (SOT363)
Size (mm)2.1 x 1.25 x 0.95
Channel typePNP
Configuration2
P tot (mW)200
V CEO [max] (V)65
I C [max] (mA)100
h FE [min]200
h FE [max]450
T J [max] (°C)150
f T [min] (MHz)100
Automotive qualifiedNo

Key Features

  • Low collector capacitance
  • Low collector-emitter saturation voltage
  • Closely matched current gain
  • Reduces number of components and board space
  • No mutual interference between the transistors

Applications

The BC856BS is suitable for various applications across different industries, including automotive, industrial, power, computing, consumer, mobile, and wearables. It is particularly useful in general-purpose switching and amplification circuits due to its low collector capacitance and low collector-emitter saturation voltage.

Q & A

  1. What is the maximum collector-emitter voltage of the BC856BS?
    The maximum collector-emitter voltage (V CEO) of the BC856BS is 65 V.
  2. What is the maximum collector current of the BC856BS?
    The maximum collector current (I C) of the BC856BS is 100 mA.
  3. What is the package type of the BC856BS?
    The BC856BS is packaged in a TSSOP6 (SOT363) package.
  4. What are the key features of the BC856BS?
    The key features include low collector capacitance, low collector-emitter saturation voltage, closely matched current gain, reduction in component and board space, and no mutual interference between the transistors.
  5. Is the BC856BS automotive qualified?
    No, the BC856BS is not automotive qualified.
  6. What is the maximum junction temperature of the BC856BS?
    The maximum junction temperature (T J) of the BC856BS is 150°C.
  7. What is the minimum current gain (h FE) of the BC856BS?
    The minimum current gain (h FE) of the BC856BS is 200.
  8. What is the maximum current gain (h FE) of the BC856BS?
    The maximum current gain (h FE) of the BC856BS is 450.
  9. What is the typical application of the BC856BS?
    The BC856BS is typically used in general-purpose switching and amplification applications.
  10. Where can I purchase the BC856BS?
    The BC856BS can be purchased from various distributors, including Nexperia's official distributors and other electronic component suppliers.
