Nexperia USA Inc. BC850CW/ZL135

Manufacturer No:
BC850CW/ZL135
Manufacturer:
Nexperia USA Inc.
Package:
Bulk
Description:
SMALL SIGNAL BIPOLAR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

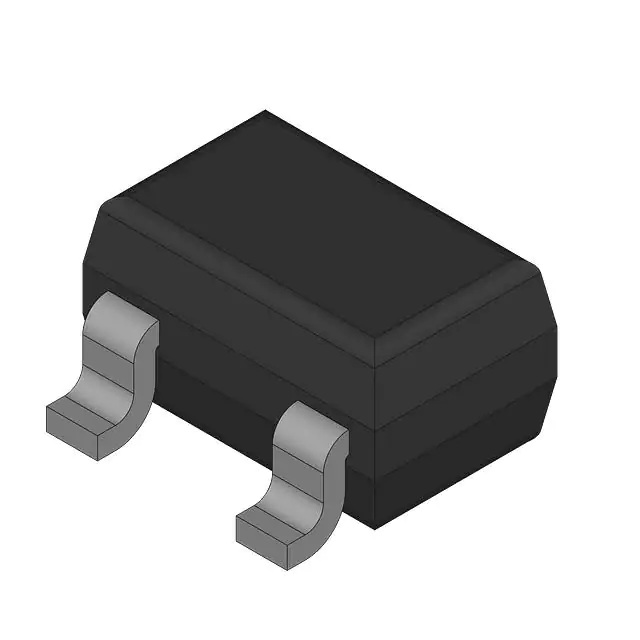

The BC850CW/ZL135 is an NPN general-purpose transistor manufactured by Nexperia USA Inc. This transistor is housed in a small SOT323 (SC-70) surface-mounted device (SMD) plastic package. It is designed for low current and low voltage applications, making it suitable for a wide range of electronic designs. The BC850CW is automotive qualified, ensuring its reliability and performance in demanding environments.

Key Specifications

Type numberPackage versionPackage nameSize (mm)hFE [min]hFE [max]fT [min] (MHz)ComplementI C [max] (mA)Noise figure [max] (dB)VCEO [max] (V)Ptot [max] (mW)Polarity
BC850CWSOT323SC-702 x 1.25 x 0.95420800100BC860CW100445200NPN

Key Features

  • Low Current Capability: Maximum collector current of 100 mA.
  • Low Voltage Operation: Maximum collector-emitter voltage of 45 V.
  • High Current Gain: Minimum DC current gain (hFE) of 420 and maximum of 800.
  • Transition Frequency: Minimum transition frequency (fT) of 100 MHz.
  • Automotive Qualified: Suitable for use in automotive applications due to its reliability and performance.
  • Small Package Size: SOT323 (SC-70) package, measuring 2 x 1.25 x 0.95 mm.

Applications

The BC850CW/ZL135 transistor is versatile and can be used in various applications across different industries, including:

  • Automotive: Suitable for automotive systems due to its automotive qualification.
  • Industrial: Used in industrial control systems and automation.
  • Consumer Electronics: Found in mobile, computing, and consumer electronic devices.
  • General Purpose Switching and Amplification: Ideal for general-purpose switching and amplification circuits.

Q & A

  1. What is the package type of the BC850CW/ZL135 transistor?
    The BC850CW/ZL135 transistor is housed in a SOT323 (SC-70) surface-mounted device (SMD) plastic package.
  2. What is the maximum collector current of the BC850CW/ZL135?
    The maximum collector current is 100 mA.
  3. What is the maximum collector-emitter voltage of the BC850CW/ZL135?
    The maximum collector-emitter voltage is 45 V.
  4. What is the minimum DC current gain (hFE) of the BC850CW/ZL135?
    The minimum DC current gain (hFE) is 420.
  5. What is the transition frequency (fT) of the BC850CW/ZL135?
    The minimum transition frequency (fT) is 100 MHz.
  6. Is the BC850CW/ZL135 automotive qualified?
    Yes, the BC850CW/ZL135 is automotive qualified.
  7. What is the size of the SOT323 package?
    The SOT323 package measures 2 x 1.25 x 0.95 mm.
  8. What is the PNP complement of the BC850CW/ZL135?
    The PNP complement is the BC860CW.
  9. What is the maximum power dissipation of the BC850CW/ZL135?
    The maximum power dissipation is 200 mW.
  10. What are some common applications of the BC850CW/ZL135?
    Common applications include automotive systems, industrial control systems, consumer electronics, and general-purpose switching and amplification circuits.
