Nexperia USA Inc. BC846S/ZL115

Manufacturer No:
BC846S/ZL115
Manufacturer:
Nexperia USA Inc.
Package:
Bulk
Description:
SMALL SIGNAL BIPOLAR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

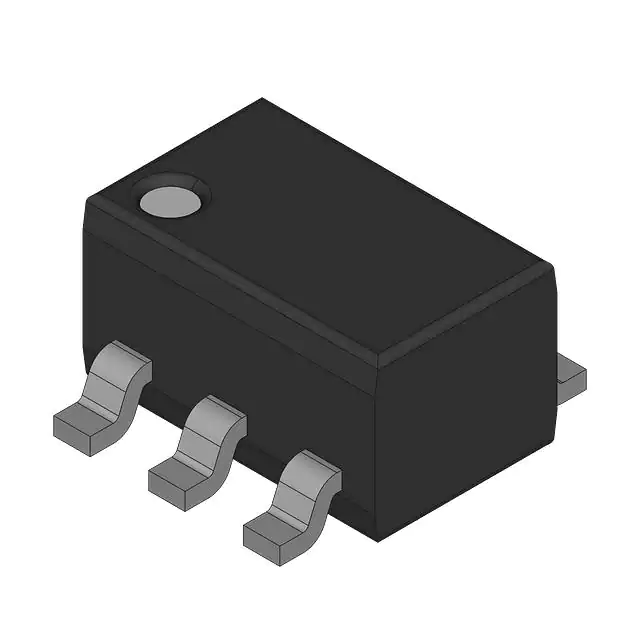

The BC846S,115 is a dual NPN bipolar junction transistor (BJT) manufactured by Nexperia USA Inc. This small signal transistor is designed for general-purpose applications and is known for its high current gain and low noise characteristics. The device is packaged in a 6-pin SOT-363 (SC-88) surface mount package, making it suitable for a wide range of electronic circuits.

Key Specifications

Specification Value
Brand Nexperia
Transistor Type NPN
Maximum DC Collector Current 100 mA
Maximum Collector Emitter Voltage 65 V
Package Type SOT-363 (SC-88)
Mounting Type Surface Mount
Maximum Power Dissipation 20 mW
Minimum DC Current Gain 110
Transistor Configuration Isolated
Maximum Collector Base Voltage 80 V
Maximum Emitter Base Voltage 65 V
Pin Count 6
Number of Elements per Chip 2
Maximum Operating Temperature +150 °C
Dimensions 2.1 x 1.35 x 1 mm

Key Features

  • High Current Gain: The BC846S,115 has a minimum DC current gain of 110, making it suitable for applications requiring high amplification.
  • Low Noise: Designed for low noise operation, this transistor is ideal for audio and other sensitive signal applications.
  • Compact Package: The SOT-363 (SC-88) package is small and surface mountable, making it perfect for space-constrained designs.
  • High Voltage Handling: With a maximum collector-emitter voltage of 65 V and collector-base voltage of 80 V, this transistor can handle a wide range of voltage levels.
  • Dual Transistor Configuration: The device contains two isolated NPN transistors in a single package, simplifying circuit design and reducing component count.

Applications

  • General-Purpose Amplification: Suitable for a wide range of amplification tasks in electronic circuits.
  • Audio Circuits: Ideal for use in audio amplifiers and other audio-related applications due to its low noise characteristics.
  • Switching Circuits: Can be used in switching applications where high current gain and low noise are required.
  • Automotive Electronics: Although not specifically rated for automotive use, it can be used in various automotive electronic systems where general-purpose transistors are needed.
  • Consumer Electronics: Commonly used in consumer electronic devices such as radios, TVs, and other household appliances.

Q & A

  1. What is the maximum DC collector current of the BC846S,115?

    The maximum DC collector current is 100 mA.

  2. What is the package type of the BC846S,115?

    The package type is SOT-363 (SC-88).

  3. What is the minimum DC current gain of the BC846S,115?

    The minimum DC current gain is 110.

  4. What is the maximum operating temperature of the BC846S,115?

    The maximum operating temperature is +150 °C.

  5. How many transistors are included in the BC846S,115 package?

    The package includes two isolated NPN transistors.

  6. What are the dimensions of the BC846S,115 package?

    The dimensions are 2.1 x 1.35 x 1 mm.

  7. What is the maximum collector-emitter voltage of the BC846S,115?

    The maximum collector-emitter voltage is 65 V.

  8. Is the BC846S,115 suitable for high-frequency applications?

    While it can be used in various applications, it is primarily designed for general-purpose and low-frequency use.

  9. Can the BC846S,115 be used in automotive applications?

    Although not specifically rated for automotive use, it can be used in various automotive electronic systems where general-purpose transistors are needed.

  10. What is the typical power dissipation of the BC846S,115?

    The maximum power dissipation is 20 mW.

Product Attributes

Transistor Type:-
Current - Collector (Ic) (Max):-
Voltage - Collector Emitter Breakdown (Max):-
Vce Saturation (Max) @ Ib, Ic:-
Current - Collector Cutoff (Max):-
DC Current Gain (hFE) (Min) @ Ic, Vce:-
Power - Max:-
Frequency - Transition:-
Operating Temperature:-
Mounting Type:-
Package / Case:-
Supplier Device Package:-
