Overview

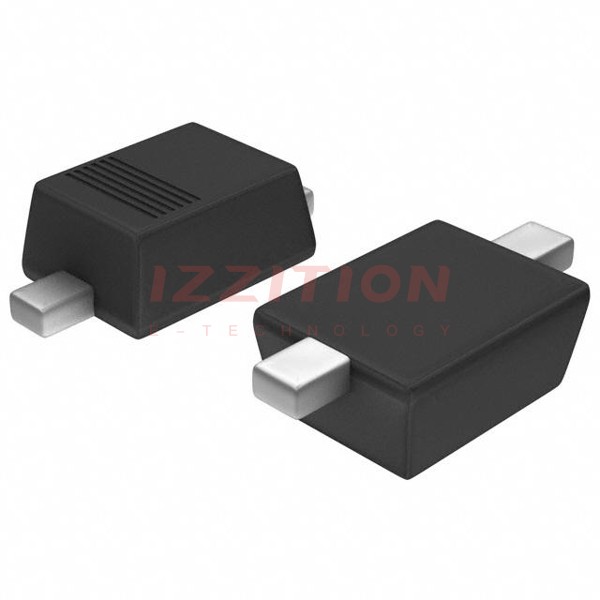

The BAS16J/ZLX is a high-speed switching diode produced by Nexperia USA Inc. This diode is encapsulated in a small and flat lead SOD323F Surface-Mounted Device (SMD) plastic package, making it ideal for applications where space is limited. The BAS16J/ZLX is designed for general-purpose switching and high-speed switching applications, offering low capacitance, low leakage current, and high switching speed.
Key Specifications
| Parameter | Value |
|---|---|
| Product Status | Obsolete |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 250 mA |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Reverse Recovery Time (trr) | 4 ns |
| Current - Reverse Leakage @ Vr | 500 nA @ 80 V |
| Capacitance @ Vr, F | 1.5 pF @ 0 V, 1 MHz |
| Operating Temperature - Junction | 150°C (Max) |
| Package / Case | SC-90, SOD-323F |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 (Automotive qualified) |
Key Features
- High-speed switching with a reverse recovery time of ≤ 4 ns
- Low capacitance of 1.5 pF @ 0 V, 1 MHz
- Low leakage current of 500 nA @ 80 V
- Maximum DC reverse voltage of 100 V
- Maximum forward voltage drop of 1.25 V @ 150 mA
- Compact SOD323F package suitable for space-constrained applications
- AEC-Q101 qualified for automotive applications
Applications
The BAS16J/ZLX is versatile and can be used in various applications across different industries, including:
- Automotive systems: Due to its AEC-Q101 qualification, it is suitable for automotive electronics
- Industrial electronics: For high-speed switching and general-purpose applications
- Consumer electronics: In devices requiring low capacitance and high switching speeds
- Power and computing systems: For efficient and reliable switching operations
Q & A
- What is the maximum DC reverse voltage of the BAS16J/ZLX?
The maximum DC reverse voltage is 100 V
- What is the reverse recovery time of the BAS16J/ZLX?
The reverse recovery time is ≤ 4 ns
- What is the maximum forward voltage drop of the BAS16J/ZLX?
The maximum forward voltage drop is 1.25 V @ 150 mA
- What is the package type of the BAS16J/ZLX?
The package type is SC-90, SOD-323F
- Is the BAS16J/ZLX qualified for automotive applications?
Yes, it is AEC-Q101 qualified for automotive applications
- What is the maximum operating junction temperature of the BAS16J/ZLX?
The maximum operating junction temperature is 150°C
- What is the typical capacitance of the BAS16J/ZLX?
The typical capacitance is 1.5 pF @ 0 V, 1 MHz
- What is the current rating of the BAS16J/ZLX?
The average rectified current (Io) is 250 mA
- Is the BAS16J/ZLX still in production?
No, the BAS16J/ZLX is obsolete and no longer manufactured
- What are some common applications of the BAS16J/ZLX?
Common applications include automotive, industrial, consumer electronics, and power and computing systems
