Overview

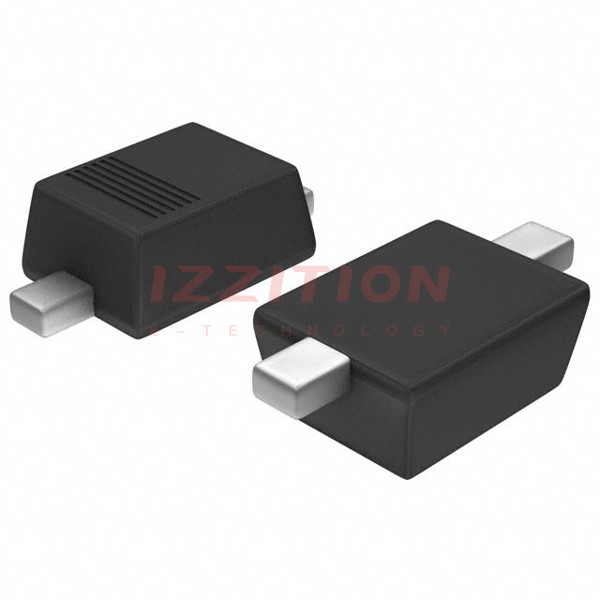

The BAS16J/ZLF is a high-speed switching diode produced by Nexperia USA Inc. This component is encapsulated in a small and flat lead SOD323F Surface-Mounted Device (SMD) plastic package. It is designed for general-purpose switching applications and is known for its high switching speed, low capacitance, and low leakage current. The BAS16J/ZLF is particularly suited for use in various electronic designs across multiple industries, including automotive, industrial, power, computing, and consumer electronics.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Product Status | Obsolete | |
| Voltage - DC Reverse (Vr) (Max) | 100 | V |
| Current - Average Rectified (Io) | 250 | mA |
| Voltage - Forward (Vf) (Max) @ If | 1.25 @ 150 mA | V |
| Reverse Recovery Time (trr) | 4 | ns |
| Current - Reverse Leakage @ Vr | 500 nA @ 80 V | |
| Capacitance @ Vr, F | 1.5 pF @ 0 V, 1 MHz | |
| Grade | Automotive | |
| Mounting Type | Surface Mount | |
| Package / Case | SC-90, SOD-323F | |
| Operating Temperature - Junction | -55°C to +150°C |
Key Features
- High Switching Speed: Reverse recovery time (trr) ≤ 4 ns, making it suitable for high-frequency applications.
- Low Capacitance: Capacitance of 1.5 pF at 0 V and 1 MHz, reducing parasitic effects.
- Low Leakage Current: Reverse leakage current of 500 nA at 80 V, minimizing power loss.
- High Reverse Voltage: Maximum DC reverse voltage of 100 V, providing robust protection against voltage spikes.
- Automotive Qualified: Meets AEC-Q101 standards, ensuring reliability in automotive applications.
- Surface Mount Package: Encapsulated in a SOD323F package, suitable for surface mount technology (SMT) assembly.
Applications
The BAS16J/ZLF diode is versatile and can be used in a variety of applications across different industries:
- Automotive: Suitable for use in automotive systems due to its AEC-Q101 qualification.
- Industrial: Used in industrial control systems, power supplies, and other high-reliability applications.
- Power and Computing: Employed in power management circuits, switching power supplies, and computing hardware.
- Consumer Electronics: Found in consumer devices such as mobile phones, wearables, and other electronic gadgets.
Q & A
- What is the maximum DC reverse voltage of the BAS16J/ZLF diode?
The maximum DC reverse voltage is 100 V.
- What is the forward current rating of the BAS16J/ZLF diode?
The forward current rating is 250 mA.
- What is the reverse recovery time of the BAS16J/ZLF diode?
The reverse recovery time (trr) is ≤ 4 ns.
- What package type is the BAS16J/ZLF diode available in?
The diode is available in the SOD323F package.
- Is the BAS16J/ZLF diode automotive qualified?
Yes, it meets the AEC-Q101 standards.
- What is the operating temperature range of the BAS16J/ZLF diode?
The operating temperature range is -55°C to +150°C.
- What is the capacitance of the BAS16J/ZLF diode at 0 V and 1 MHz?
The capacitance is 1.5 pF at 0 V and 1 MHz.
- What is the maximum forward surge current of the BAS16J/ZLF diode?
The maximum forward surge current is 4 A.
- Is the BAS16J/ZLF diode RoHS compliant?
Yes, it is RoHS compliant.
- What are the typical applications of the BAS16J/ZLF diode?
It is used in automotive, industrial, power, computing, and consumer electronics applications.
