74LVCH8T245BQ,118
  • Share:

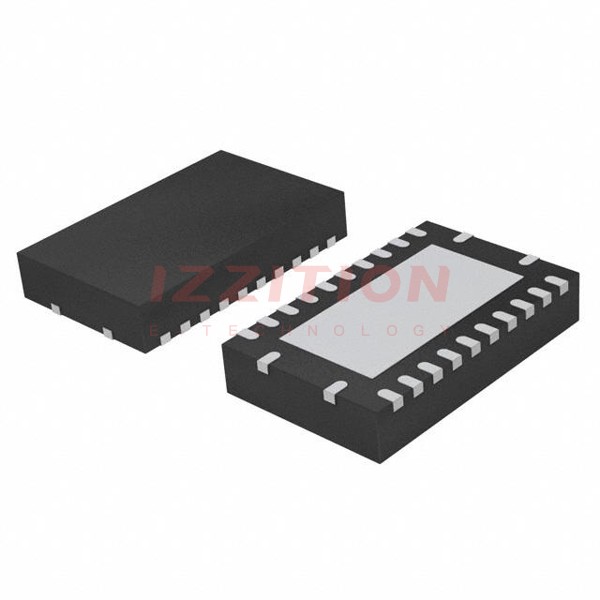

Nexperia USA Inc. 74LVCH8T245BQ,118

Manufacturer No:
74LVCH8T245BQ,118
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
IC TRANSLATR TXRX 5.5V 24DHVQFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The 74LVCH8T245BQ,118 from Nexperia USA Inc. is an 8-bit dual supply translating transceiver with 3-state outputs, designed for bidirectional level translation. This integrated circuit is part of the 74LVCH8T245 series and is packaged in a DHVQFN24 (SOT815-1) package. It is suitable for translating between various low voltage nodes, making it versatile for use in a wide range of electronic systems.

Key Specifications

Parameter Value Unit
VCC(A) (Supply Voltage A) 1.2 - 5.5 V
VCC(B) (Supply Voltage B) 1.2 - 5.5 V
Logic Switching Levels CMOS/LVTTL
Output Drive Capability ± 24 mA
tpd (Propagation Delay) 3.5 ns
Number of Bits 8
Operating Temperature Range -40°C to +125°C °C
Package DHVQFN24 (SOT815-1)
Thermal Resistance (Rth(j-a)) 66 K/W
Thermal Resistance (Ψth(j-top)) 5.8 K/W
Thermal Resistance (Rth(j-c)) 40 K/W

Key Features

  • Bidirectional Level Translation: Enables translation between any two voltage levels from 1.2 V to 5.5 V.
  • 3-State Outputs: Allows for high-impedance state, which is useful for bus applications.
  • Auto Direction Sensing: Automatically senses the direction of data transmission based on the DIR input.
  • Low Stand-by Current: Minimizes power consumption when the device is not active.
  • High-Speed Operation: Supports a maximum data rate of 100 Mbps.
  • Robust Rail-to-Rail Performance: Ensures reliable operation across the full voltage range.
  • ESD Protection: Exceeds JESD 22 standards for electrostatic discharge protection.
  • Latch-up Performance: Exceeds 100 mA per JESD 78 Class II Level B.
  • Fail-Safe Circuitry: Ensures that the outputs remain in a valid state even when the inputs are invalid.
  • Automotive Qualified: Suitable for use in automotive applications.

Applications

  • Interface Translation: Ideal for translating signals between different voltage domains in mixed-signal systems.
  • Automotive Systems: Qualified for use in automotive applications where robustness and reliability are critical.
  • Industrial Control Systems: Useful in industrial control systems that require reliable and high-speed data transmission.
  • Consumer Electronics: Suitable for use in consumer electronics where low power consumption and high-speed data transfer are necessary.
  • Embedded Systems: Can be used in embedded systems that require bidirectional level translation and low power consumption.

Q & A

  1. What is the primary function of the 74LVCH8T245BQ?

    The primary function is to perform bidirectional level translation between two different voltage domains.

  2. What is the voltage range for VCC(A) and VCC(B)?

    Both VCC(A) and VCC(B) can be supplied at any voltage between 1.2 V and 5.5 V.

  3. What is the maximum propagation delay of the 74LVCH8T245BQ?

    The maximum propagation delay is 3.5 ns.

  4. What is the operating temperature range of the 74LVCH8T245BQ?

    The operating temperature range is -40°C to +125°C.

  5. What type of package does the 74LVCH8T245BQ come in?

    The device is packaged in a DHVQFN24 (SOT815-1) package.

  6. Does the 74LVCH8T245BQ have ESD protection?

    Yes, it exceeds JESD 22 standards for electrostatic discharge protection.

  7. Is the 74LVCH8T245BQ suitable for automotive applications?

    Yes, it is qualified for use in automotive applications.

  8. What is the maximum data rate supported by the 74LVCH8T245BQ?

    The device supports a maximum data rate of 100 Mbps.

  9. Does the 74LVCH8T245BQ have fail-safe circuitry?

    Yes, it ensures that the outputs remain in a valid state even when the inputs are invalid.

  10. What is the thermal resistance (Rth(j-a)) of the 74LVCH8T245BQ?

    The thermal resistance (Rth(j-a)) is 66 K/W.

Product Attributes

Logic Type:Translation Transceiver
Number of Elements:2
Number of Bits per Element:8
Input Type:-
Output Type:3-State
Current - Output High, Low:32mA, 32mA
Voltage - Supply:1.2V ~ 5.5V
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Package / Case:24-VFQFN Exposed Pad
Supplier Device Package:24-DHVQFN (5.5x3.5)
0 Remaining View Similar

In Stock

$1.25
228

Please send RFQ , we will respond immediately.
