74LVC8T245BQ,118
  • Share:

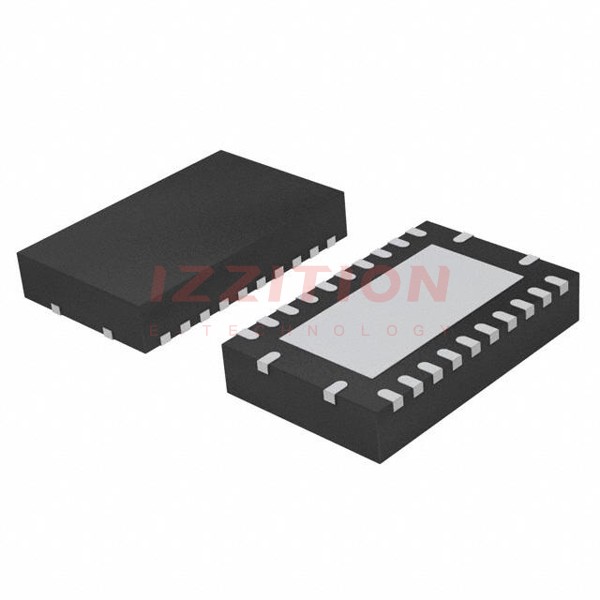

Nexperia USA Inc. 74LVC8T245BQ,118

Manufacturer No:
74LVC8T245BQ,118
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
IC TRANSLATR TXRX 5.5V 24DHVQFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The 74LVC8T245BQ,118 is an 8-bit dual supply translating transceiver produced by Nexperia USA Inc. This integrated circuit is designed to enable bidirectional level translation between two different voltage domains, making it a versatile component for various electronic systems. The device features 3-state outputs, which allow for high impedance when the output is not driven, reducing power consumption and minimizing interference.

Key Specifications

ParameterValue
VCC(A) (V)1.2 - 5.5
VCC(B) (V)1.2 - 5.5
Logic Switching LevelsCMOS/LVTTL
Output Drive Capability (mA)± 24
tpd (ns)3.5
Number of Bits8
Power Dissipation ConsiderationsLow
Tamb (°C)-40 to 125
Rth(j-a) (K/W)66
Ψth(j-top) (K/W)5.8
Rth(j-c) (K/W)40
Package NameDHVQFN24 (SOT815-1)

Key Features

  • Bidirectional level translation between two different voltage domains.
  • 3-state outputs for high impedance when not driven.
  • Supports CMOS and LVTTL logic switching levels.
  • Wide operating voltage range: 1.2 V to 5.5 V.
  • Low power dissipation.
  • High output drive capability: ± 24 mA.
  • Compact DHVQFN24 package.

Applications

  • Interface translation between different voltage domains in mixed-signal systems.
  • Level shifting in communication protocols such as I2C, SPI, and UART.
  • Use in battery-powered devices where low power consumption is crucial.
  • Integration in automotive, industrial, and consumer electronics.

Q & A

  1. What is the primary function of the 74LVC8T245BQ,118?
    The primary function is to enable bidirectional level translation between two different voltage domains.
  2. What are the supported logic switching levels?
    The device supports CMOS and LVTTL logic switching levels.
  3. What is the operating voltage range of the 74LVC8T245BQ,118?
    The operating voltage range is from 1.2 V to 5.5 V for both VCC(A) and VCC(B).
  4. What is the output drive capability of the device?
    The output drive capability is ± 24 mA.
  5. What is the typical propagation delay (tpd) of the 74LVC8T245BQ,118?
    The typical propagation delay is 3.5 ns.
  6. What is the package type of the 74LVC8T245BQ,118?
    The package type is DHVQFN24 (SOT815-1).
  7. What are the temperature range and power dissipation considerations?
    The device operates over a temperature range of -40°C to 125°C and has low power dissipation.
  8. Can the 74LVC8T245BQ,118 be used in automotive applications?
    Yes, it can be used in automotive, industrial, and consumer electronics due to its robust specifications.
  9. How does the 3-state output feature benefit the device?
    The 3-state output feature allows the outputs to be in a high impedance state when not driven, reducing power consumption and minimizing interference.
  10. Where can I find detailed documentation for the 74LVC8T245BQ,118?
    Detailed documentation, including datasheets, can be found on the Nexperia website or through authorized distributors like Digi-Key and Mouser.

Product Attributes

Logic Type:Translation Transceiver
Number of Elements:2
Number of Bits per Element:8
Input Type:-
Output Type:3-State
Current - Output High, Low:32mA, 32mA
Voltage - Supply:1.2V ~ 5.5V
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Package / Case:24-VFQFN Exposed Pad
Supplier Device Package:24-DHVQFN (5.5x3.5)
0 Remaining View Similar

In Stock

$1.26
233
